Napkin Folding Machine


Availability:

Quantity:



Inquire

CHARACTERISTICS:
1. Production speed 600 sheets per minute.
2. Optional of 1/4 folded, 1/6 folded, 1/8folded or other folding types.
3. Deviation rectifying unit is optional.
4. Easy operating, skip counting can be one sheet or designated sheets, with hotkey reset to one sheet skip counting.
5. Main transmission parts and folding unit with safety cover.
6. Applicable to various raw paper, napkins with various specifications and grades.

Model:
CJ-Y-230
Brand:
CORENEW

Product Description

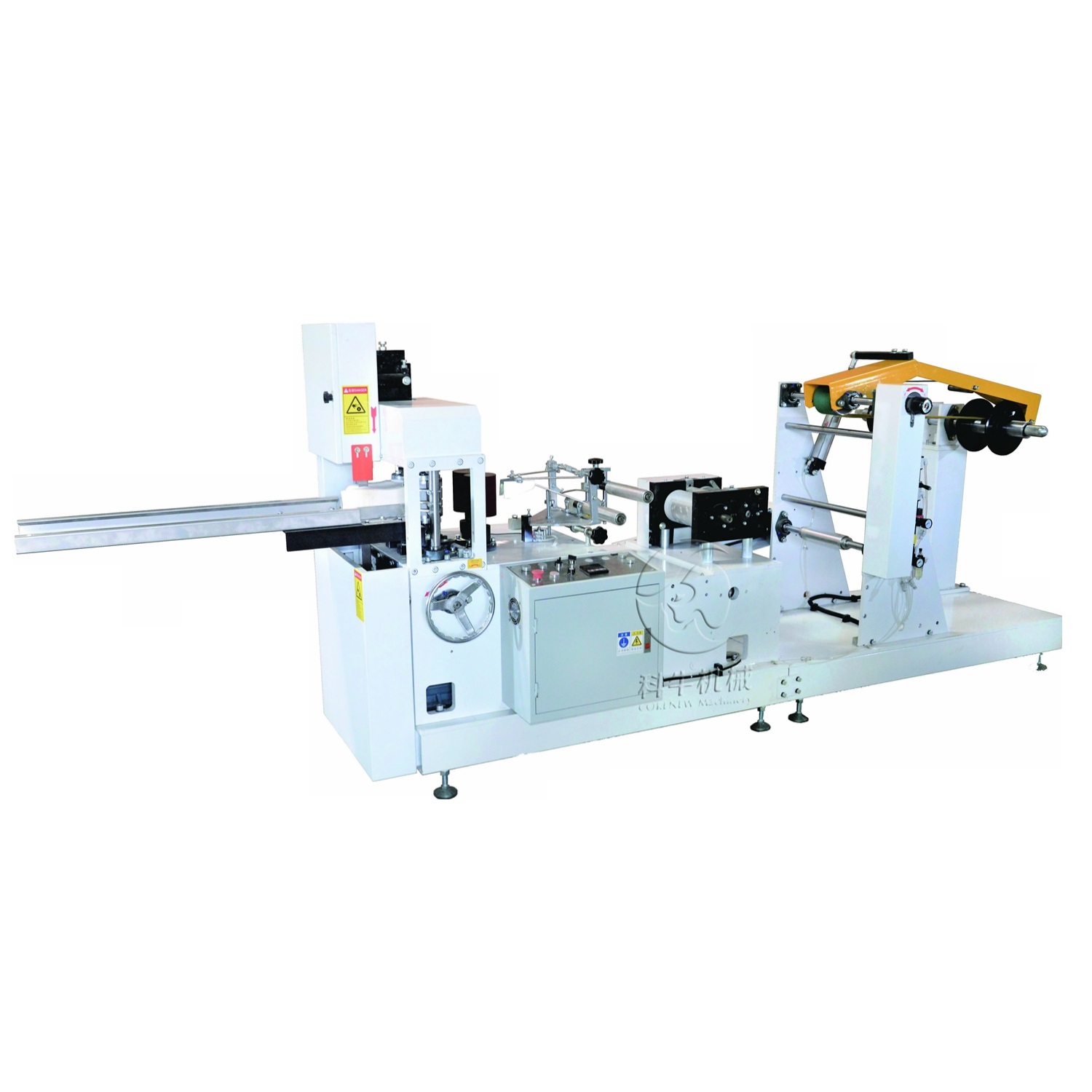

CJ-Y-230 Napkin Folding Machine

This machine is designed to press polish, color print, dry and emboss sheets of paper well cut and finally to fold the sheets to form quadrate or rectangular napkins. To obtain high-class napkins prevailing in the market.

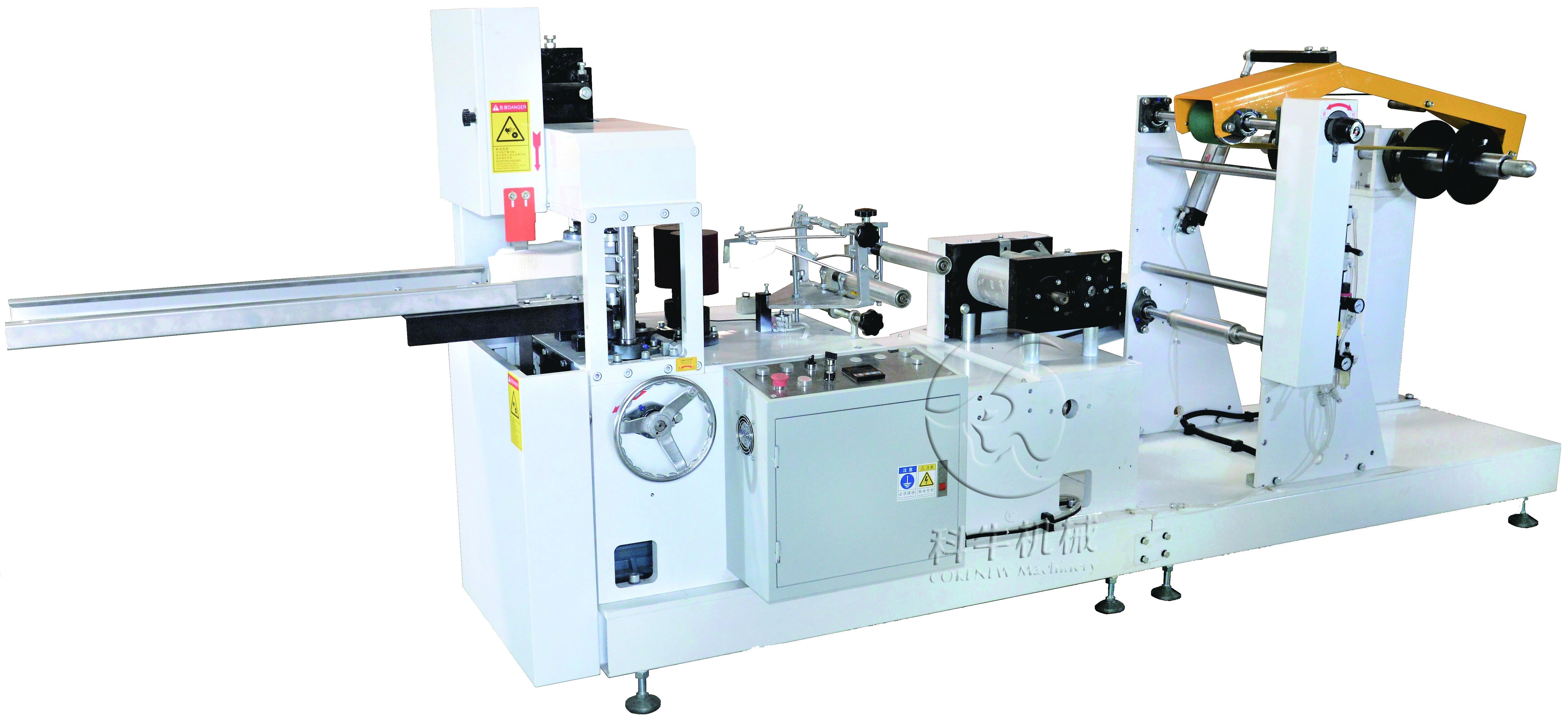

Napkin2

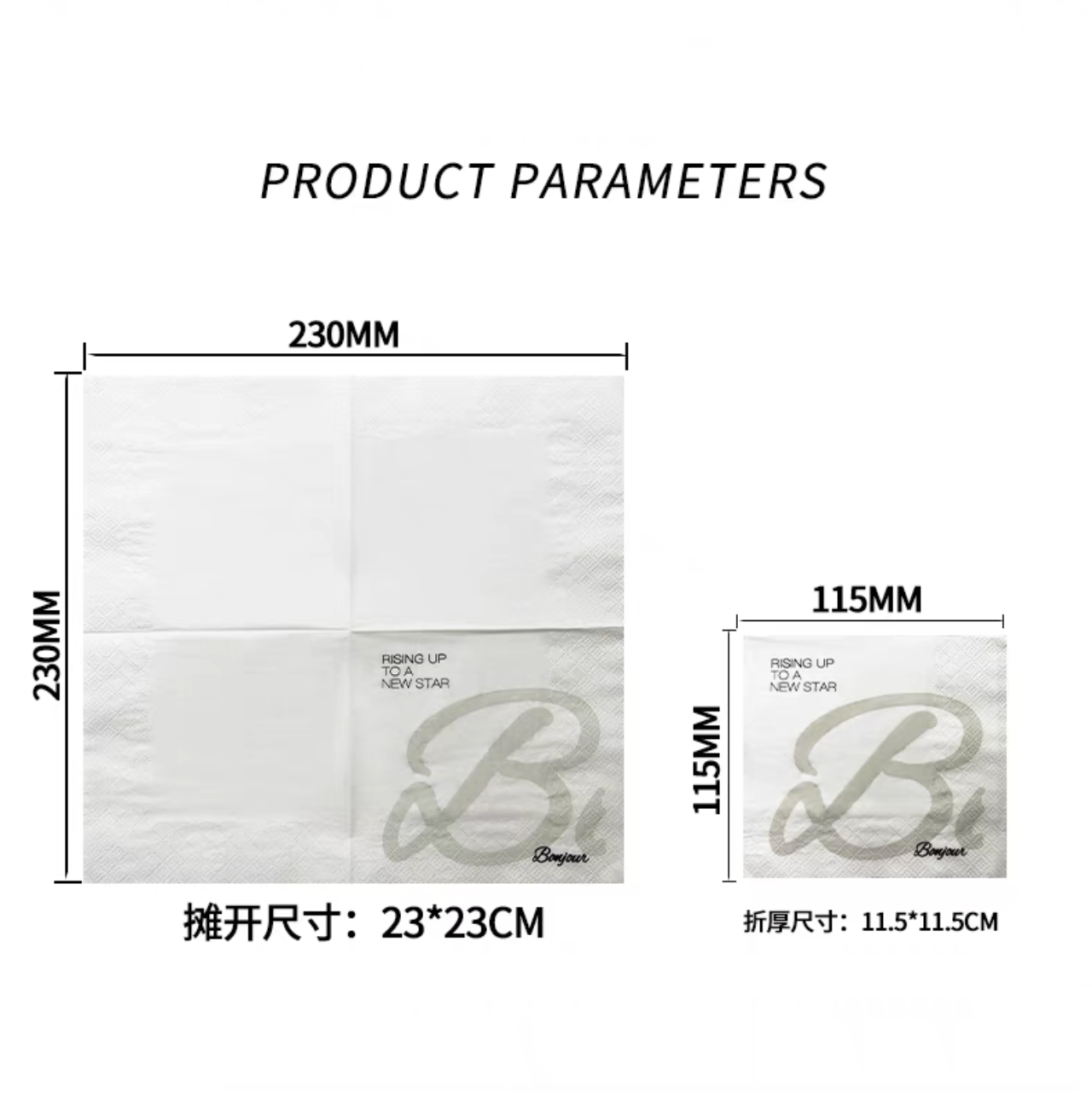

Fixed specification napkin paper:

Model	210	230	250	275	300	330	400
Product unfold size(mm)	210*210	230*230	250*250	275*275	300*300	330*330	400*400
Product 1/4 folding size(mm)	105*105	115*115	125*125	137.5*137.5	150*150	165*165	200*200
Product 1/8 folding size(mm)	53*105	58*115	63*125	69*137.5	75*150	83*165	100*200

TECHNICAL PARAMETERS:

Max width of raw paper	200/210/230...330mm, other please specify
Max outer diameter of raw paper	1100mm
Inner diameter of raw paper core	3” (76mm)
Folding type	1/4 folded, other please specify
Raw paper quanlity	1ply 17-25 g/m², 2~3 plies 13-17 g/m²
Speed	500~600 sheets/min
Main motor	3
OPTIONS
Embossing unit	Steel to rubber / Steel to woolen/ Steel to steel
Printing unit	1 ~ 2 colors
