XCT-C200
CORENEW

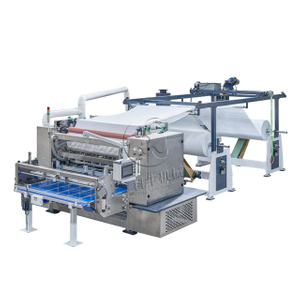

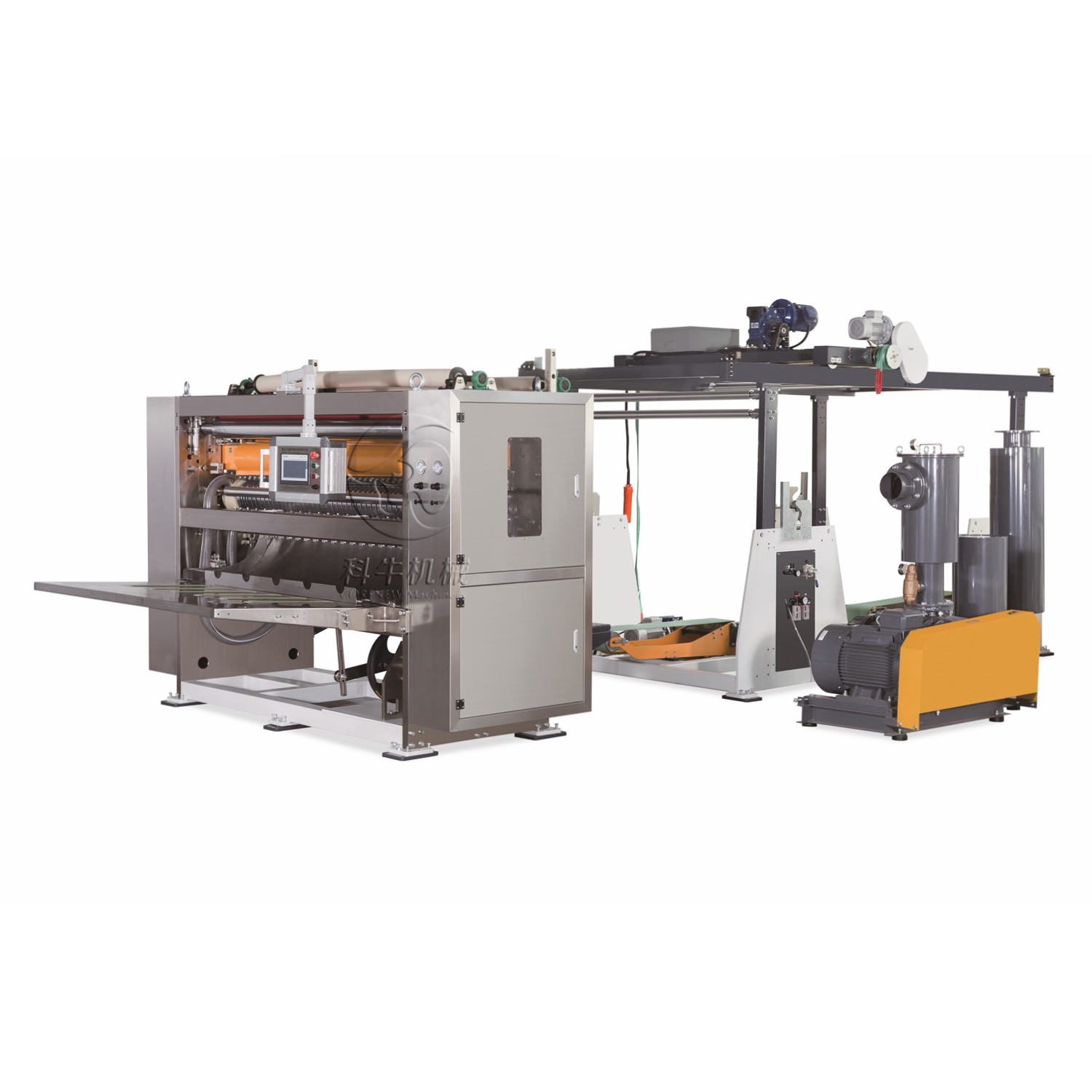

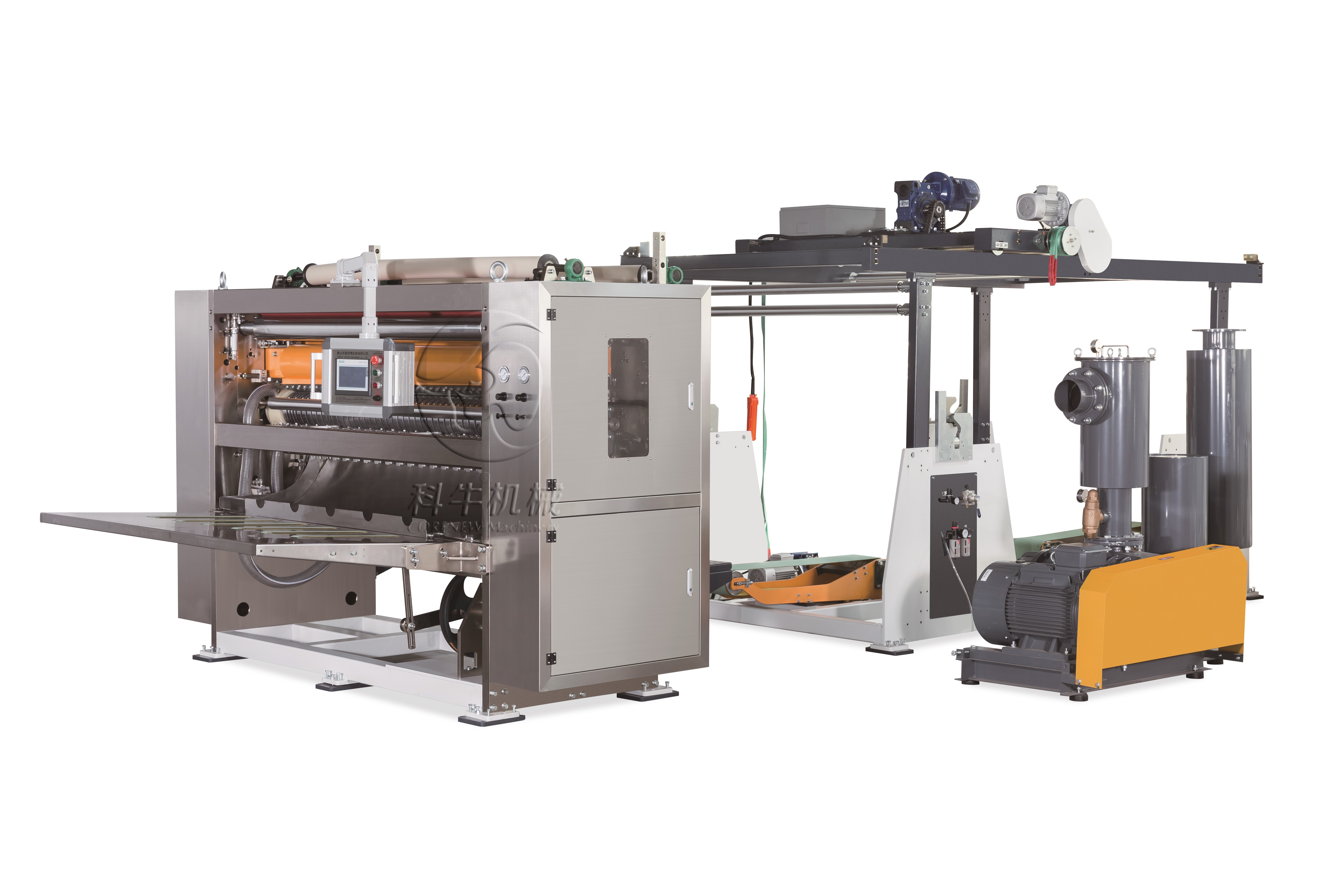

XCT-C200 COTTON TISSUE FOLDING MACHINE
This machine is process folded into V type interfold cotton tissue. It adopt advanced PLC programmable control technology, servo system and converter control. Precisely counting system and nice folding effect, manual transfer.
Multipurpose cotton tissue suitable for maternal and infant care, household Cleaning, remove makeup etc.
TECHNICAL PARAMETERS:
Model | 5lanes | 6lanes | 7lanes | 8lanes | 9lanes | 10lanes |
Width of parent reel | 1100mm | 1320mm | 1450mm | 1730mm | 1920mm | 2050mm |
Diameter of parent reel | ≤Ф1500mm (customization is required in case of >Ф1500) | |||||
Core diameter of parent reel | Ф76mm (customization is required in case of other sizes) | |||||
Sheet length (fixed) | Option 180/190/200/210/225 | |||||
Paper quantity | 20-100g/m² | |||||
Folding type | V fold | |||||
Control system | PLC, converter, HMI control | |||||
Unwind stand | Independent driving, crane loading parent reel | |||||
PRODUCTS DISPLAY:
 |  |  |
