XCT-A200/(7L-10L)
CORENEW

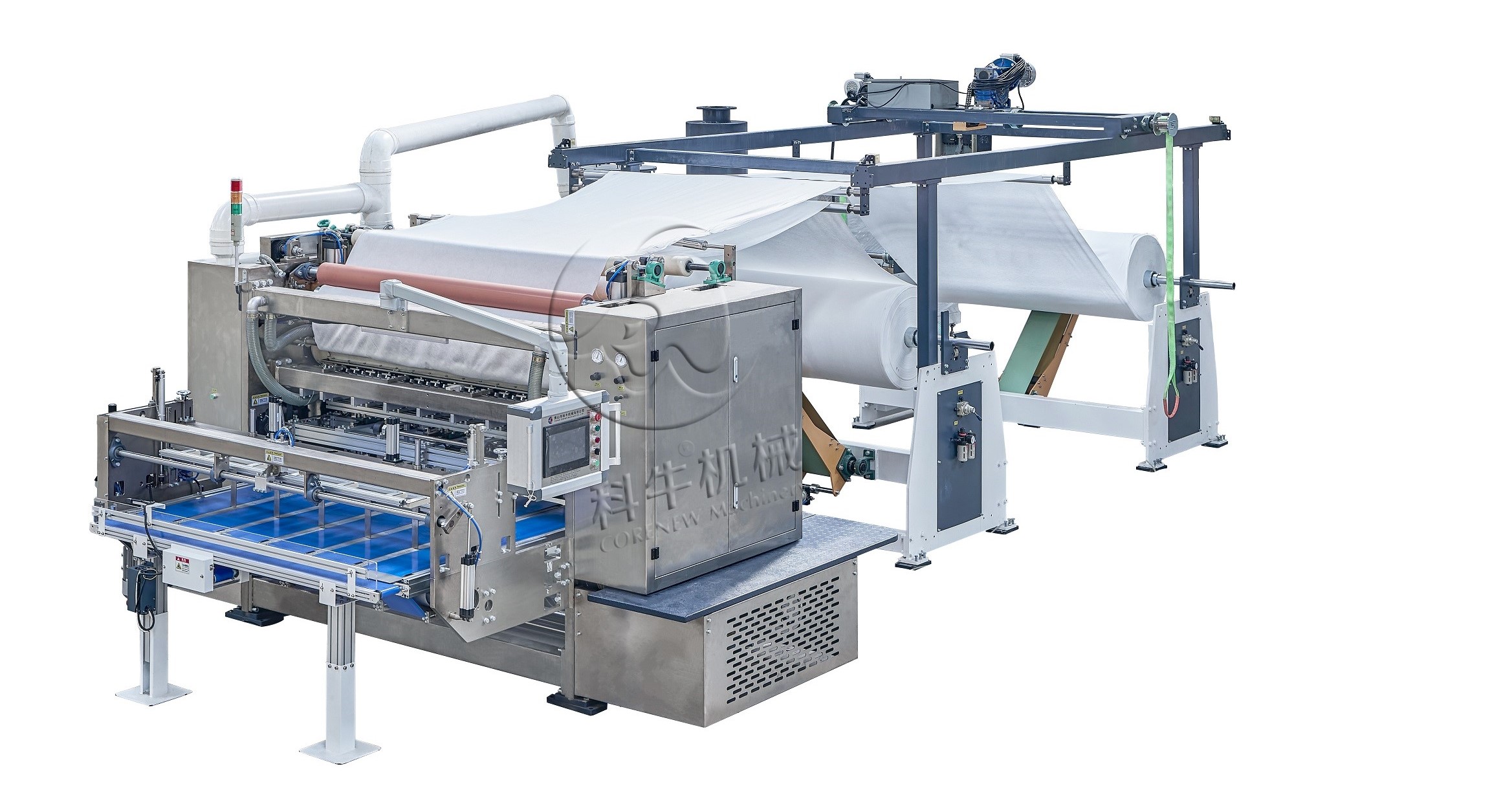

Automatic Soft Cotton Tissue Folding Machine
This machine is process folded into V type interfold cotton tissue. It adopt advanced PLC programmable control technology, servo system and converter control. Precisely counting system and nice folding effect, automatic inner stacking and automatic transfer.

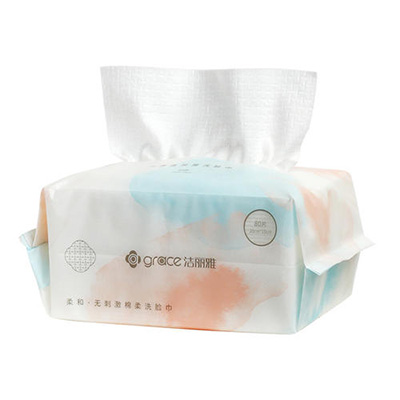

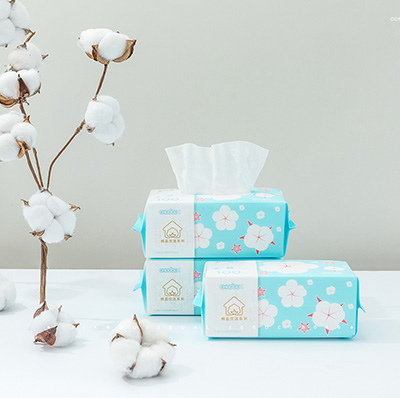

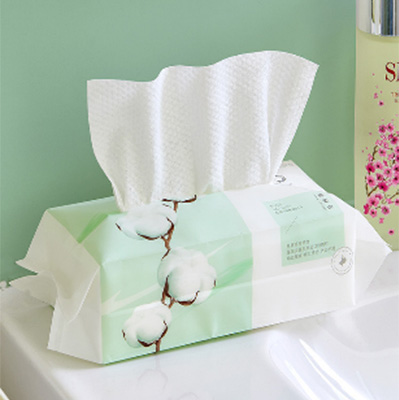

Multipurpose cotton tissue suitable for maternal and infant care, household Cleaning, remove makeup etc.
CHARACTERISTICS:
1.Stable operation speed 100m/min

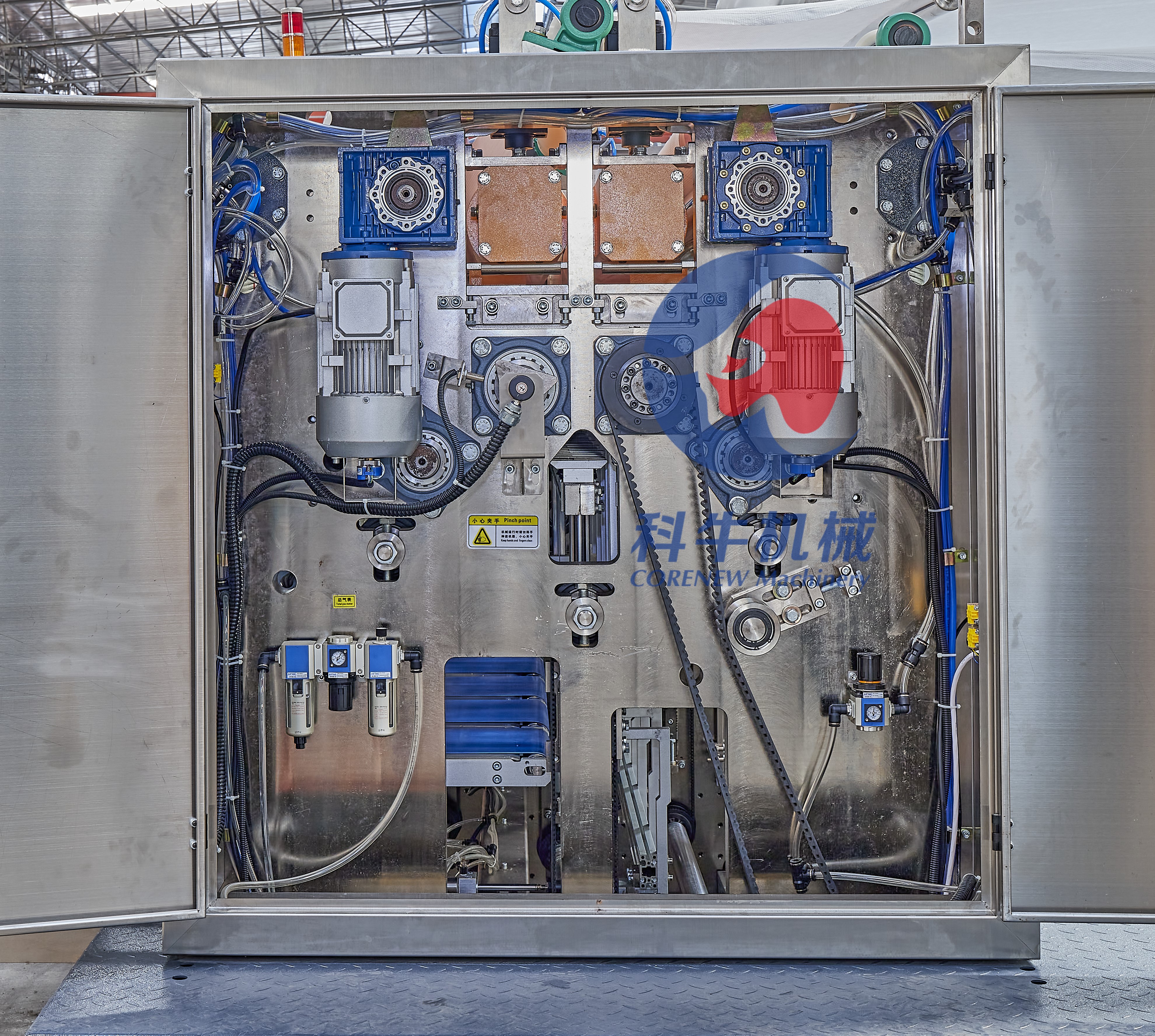

2.Each unit is driven by independent motor (servo motor)
3.Patent-tech spiral blade cutting structure
4.Patent-tech with suction holes at the blade edge
5.Precisely counting system and nice folding effect, could greatly increase qualification rate
TECHNICAL PARAMETERS:
| Model | 7lanes | 8lanes | 9lanes | 10lanes |
| Width of parent reel | 1450mm | 1730mm | 1920mm | 2050mm |
| Diameter of parent reel | ≤Ф1500mm (customization is required in case of >Ф1500) | |||
| Core diameter of parent reel | Ф76mm (customization is required in case of other sizes) | |||
| Sheet length (fixed) | Option 180/190/200/210/225 | |||
| Paper quantity | 20-100g/m² | |||
| Folding type | V fold | |||
| Transfer system | Servo control, automatic folding, counting and auto-transfer | |||

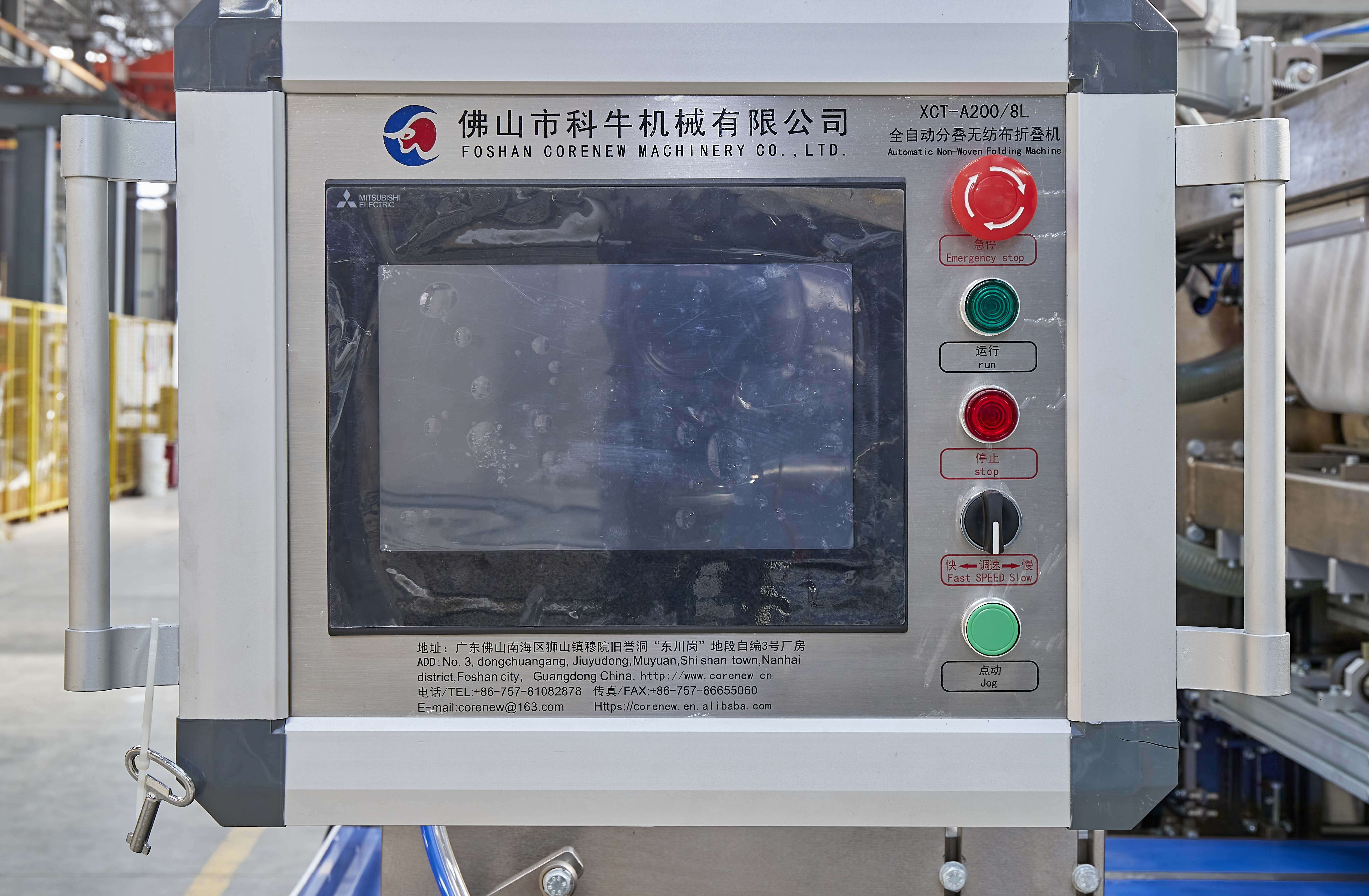

| Control system | PLC, converter, electromechanical and optic integrated control | |||

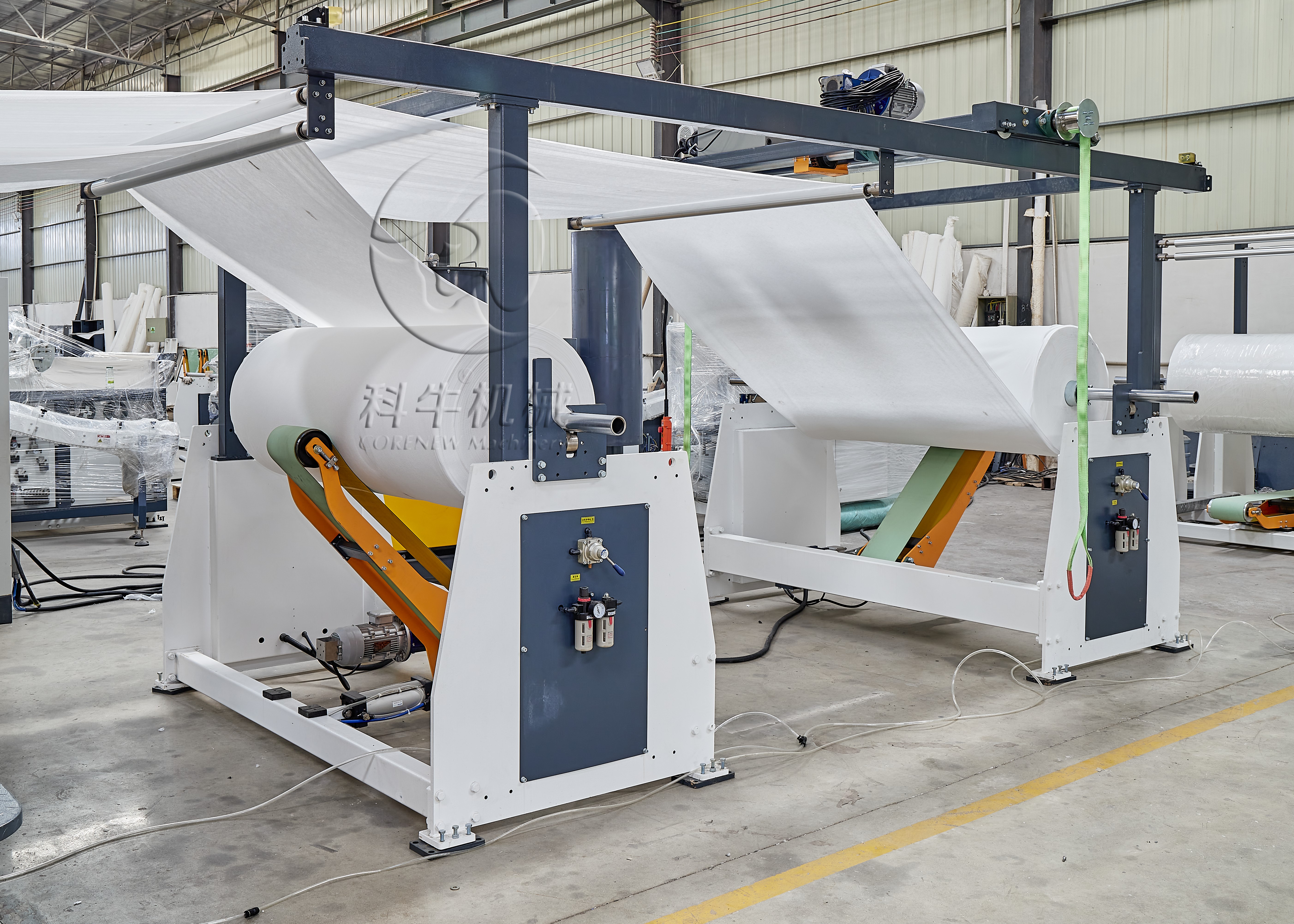

| Unwind stand | Independent driving, crane loading parent reel | |||
 |  |  |
