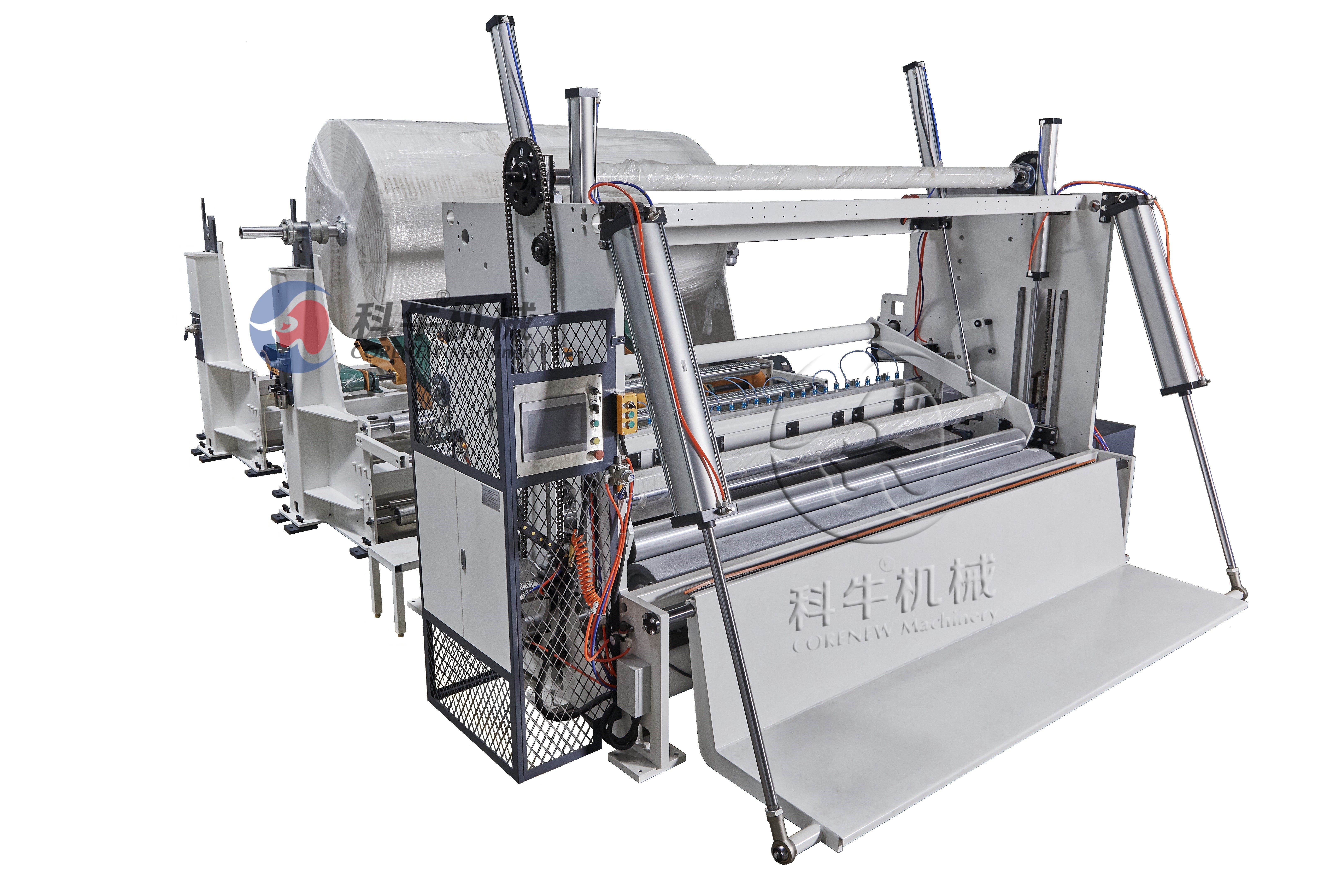

High Speed Jumbo Roll Slitting And Rewinding Machine

1.1

Machine name

High speed slitting and rewinder machine

1.2

Design speed

550m/min

1.3

Production speed

400-500m/min, according to the paper quality

1.4

Roller balancing speed

600 m/min

1.5

Max.width of raw paper

2880mm

1.6

Max.diameter of jumbo roll

≤ Dia 2200mm

1.7

Minimum slitting width

Dia 150mm

1.8

Maximum rewinding diameter

Dia 1300mm

1.8

Paper quantity

13-40g/

Optional items

1

UNWIND STAND

1-4 layers, independent driving (Customized core shaft sleeve)
