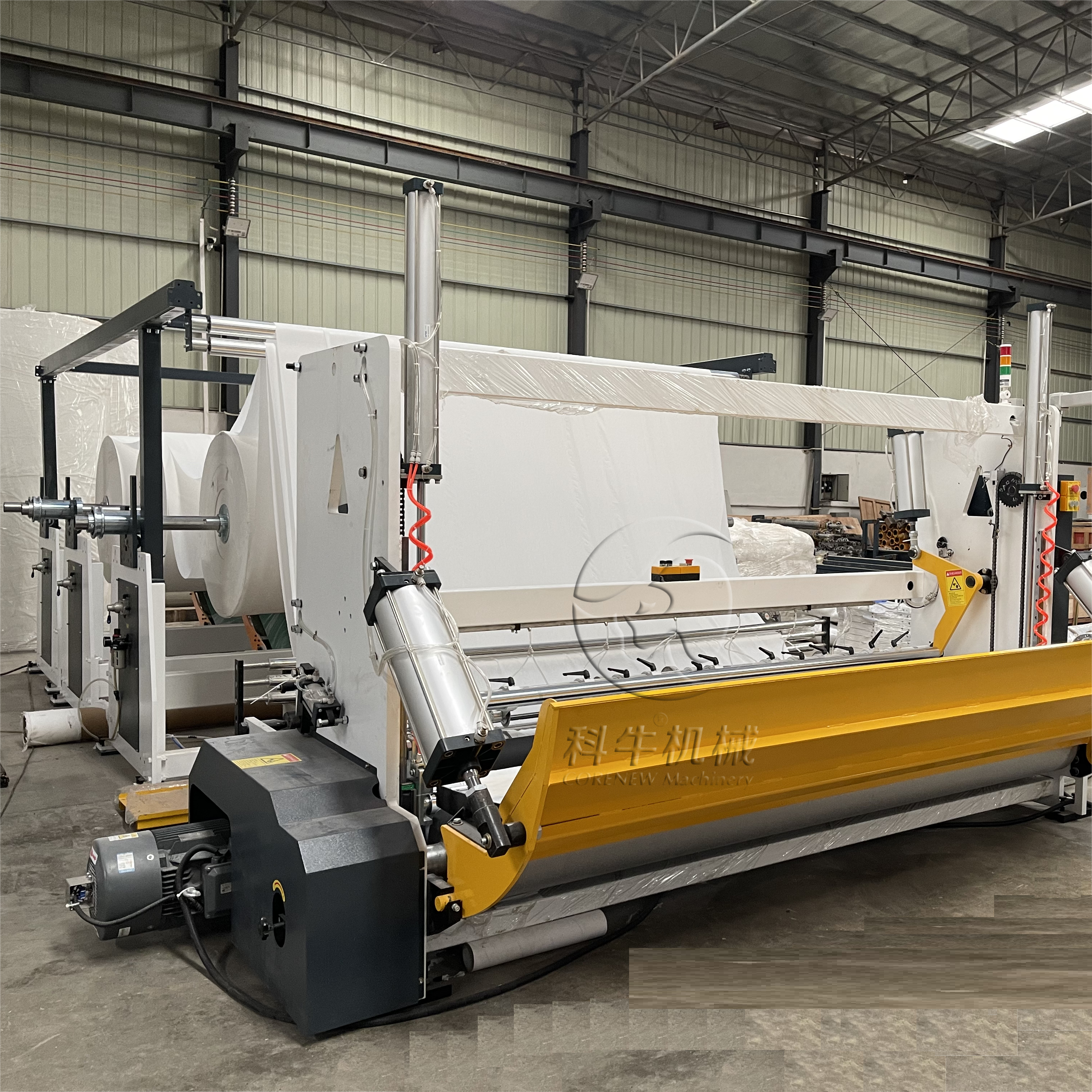

Jumbo Roll Slitting Rewinding Machine


Availability:

Quantity:



Inquire

CHARACTERISTICS:
1. Production speed 300m/min
2. Adopted PLC & HMI, independent motor drive and frequency conversion control.
3. Slitting bottom blade: one piece blade shaft equipped with full sets of multi-blade blade sets
4. Slitting upper blade can adjustable according to the requirement.
5. Pneumatic control system for lifting reel core shaft.
6. Tipper-hopper does guarding job.
7. With optional function of steel to steel calender unit.

Model:
CNJ-S300
Brand:
CORENEW

Description

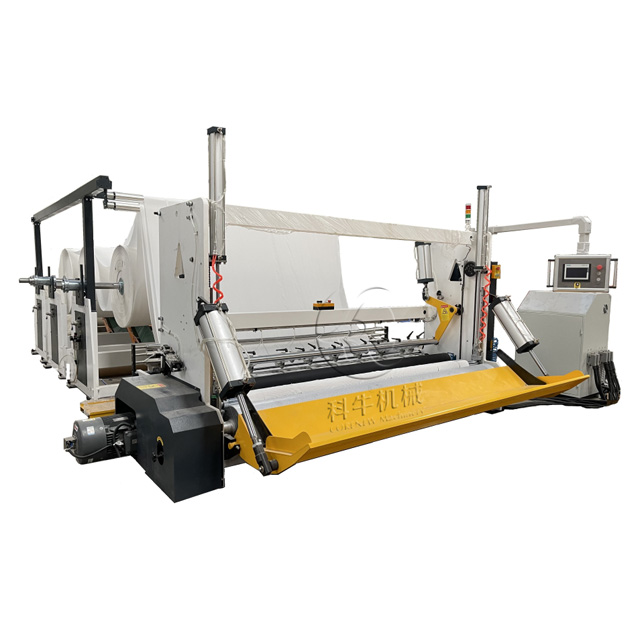

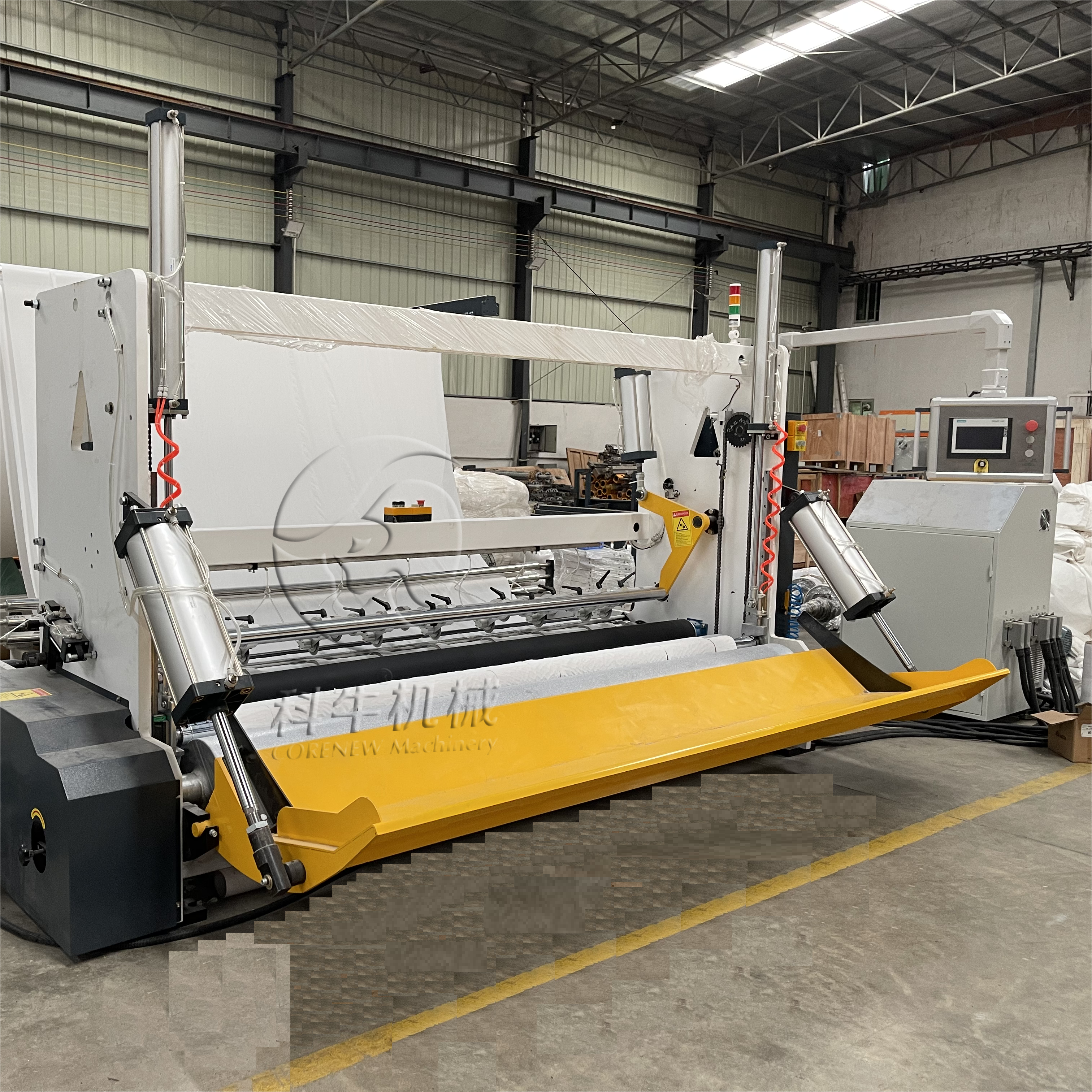

DPF-P3000 JUMBO ROLL SLITTING REWINDING MACHINE

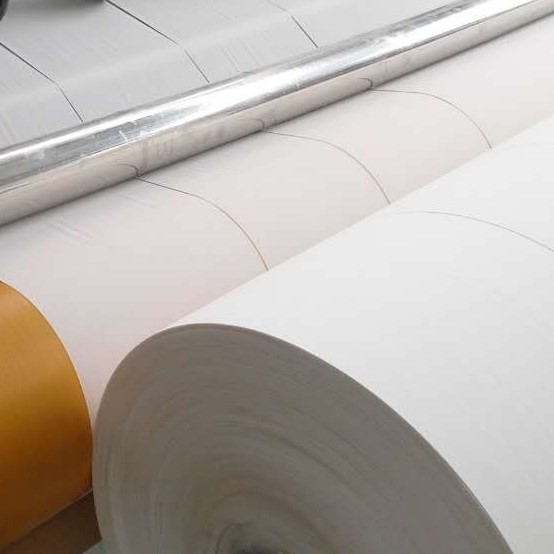

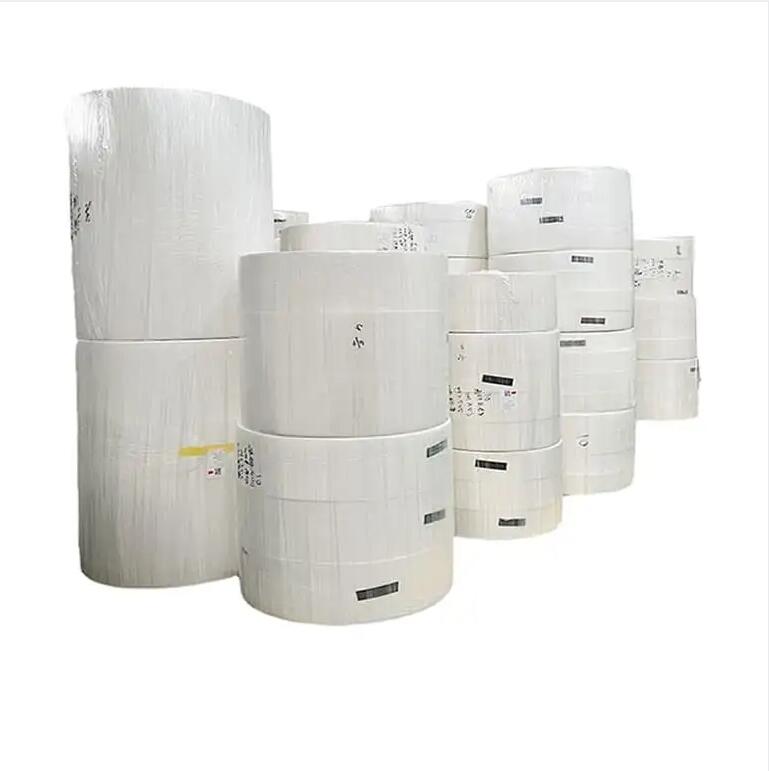

This machine is used to cut and rewinding the single layer jumbo roll paper into two layer, three layers or four layers with different size, which are used to the raw materials of handkerchief, napkin and facial tissue.

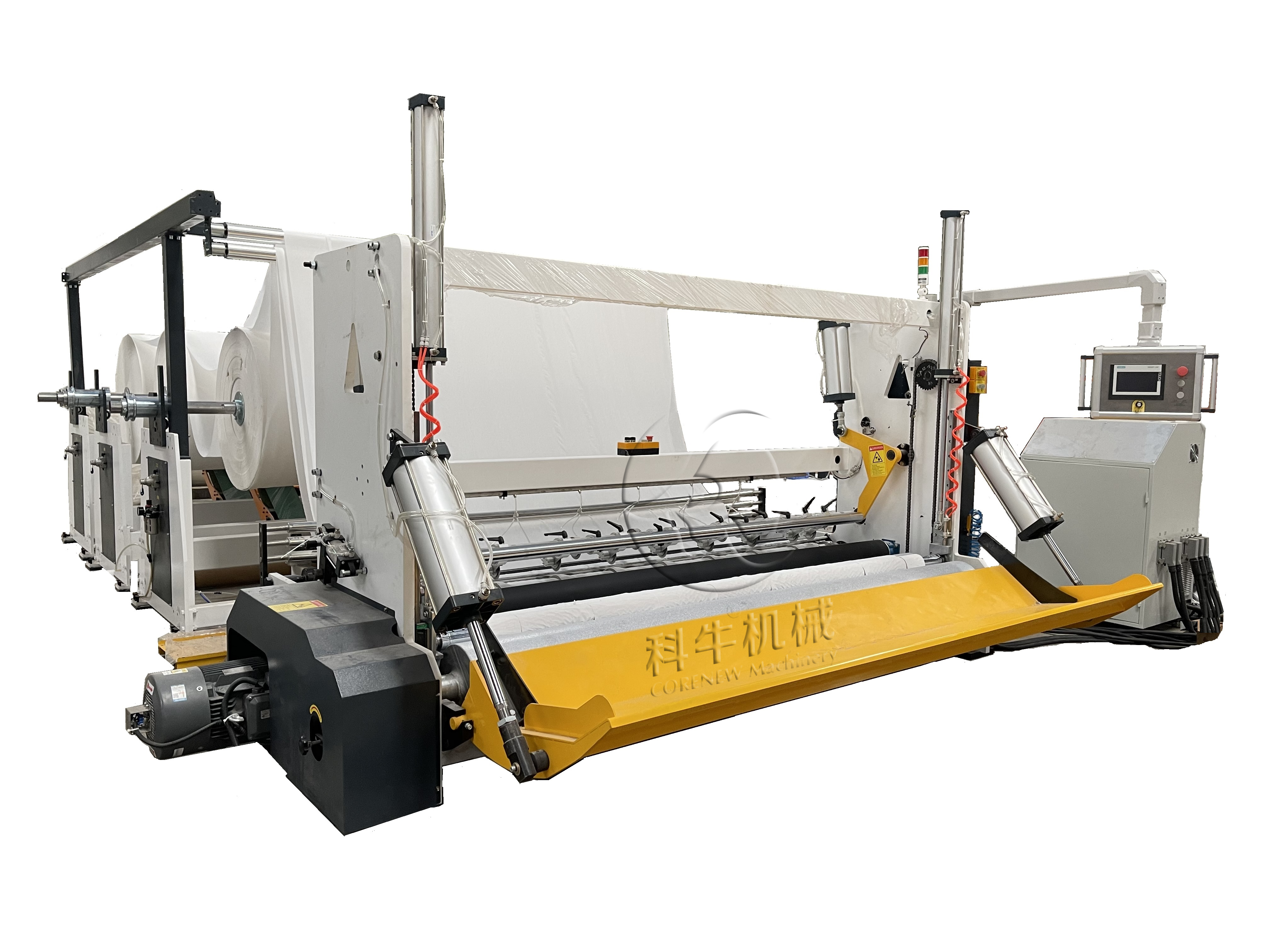

PDF

TECHNICAL PARAMETERS:

Model	3000
Width of parent reel	2550-2950mm
Diameter of parent reel	≤Ф1500mm (customization is required in case of >Ф1500)
Core diameter of parent reel	Ф76mm (customization is required in case of other sizes)
Size of finished product	Ф600-1200mm
Paper core diameter	Ф76mm
Slitting width	180-400mm
Slitting system	18sets slitting blades, 1piece of air shaft for winding
Control system	PLC, converter, electromechanical and optic integrated control
Speed	250~300m/min
Optional items
Unwind stand	1-6 layers, indpendent driving, crane loading parent reel

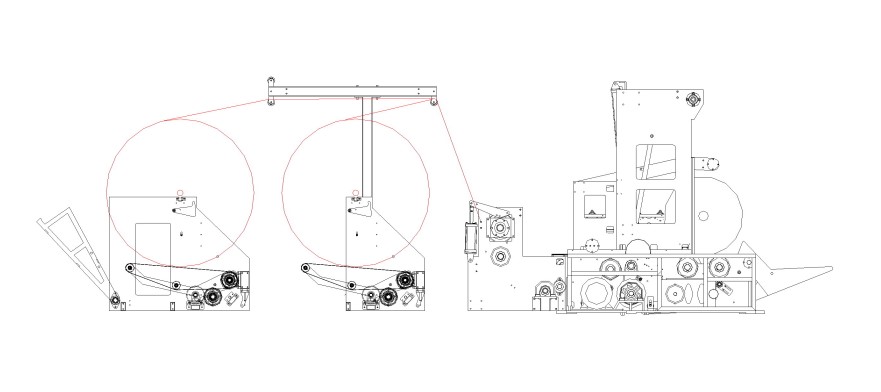

Layout：

Application

Download

Related News

content is empty!

Related Products

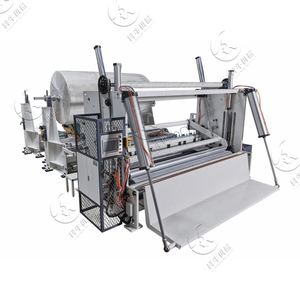

High Speed Jumbo Roll Slitting And Rewinding Machine

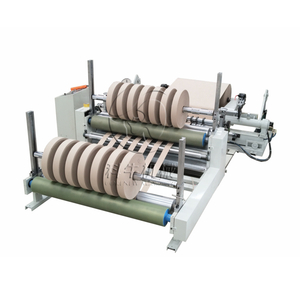

Kraft Paper Slitting Machine
