ZDQ-MR-C
CORENEW
ZDQ-MR-C(2200~4000) MAXI ROLL AUTOMATIC BANDSAW CUTTER
Automatic band saw cutter use to cut the Maxi roll/JRT log into regular size which can increase the working efficiency and the product quality. This machine adopts advanced servo driven system, inverter, PLC control, the specifications can be set on the touch screen.
TECHNICAL PARAMETERS:
Model | ZDQ-MR2200C | ZDQ-MR3000C | ZDQ-MR3700C | ZDQ-MR4000C |
Feeding lane size | L2150mm, Dia.150-250mm | L2950mm, Dia.150-250mm | L3650mm, Dia.150-140mm | L3950mm, Dia.150-250mm |
Dimension (L*W*H) | 4600x1800x2650 | 5300x1800x2650 | 6000x1800x2650 | 6300x1800x2650 |
Weight | 3500Kgs | 3800Kgs | 4000Kgs | 4200Kgs |
Production speed | 30-50 Cuts/min | |||
Cutting length | 90-250mm,Tolerance±1mm | |||
Feeding control | PLC and servo motor control | |||
Grinder | Automatic blade sharpening, grinding angle control by HMI | |||
Air pressure | 0.5mpa-0.8mpa | |||
Power supply | 15KW | |||
Voltage required | 3-phase 380V/50HZ (Other to be specified) | |||

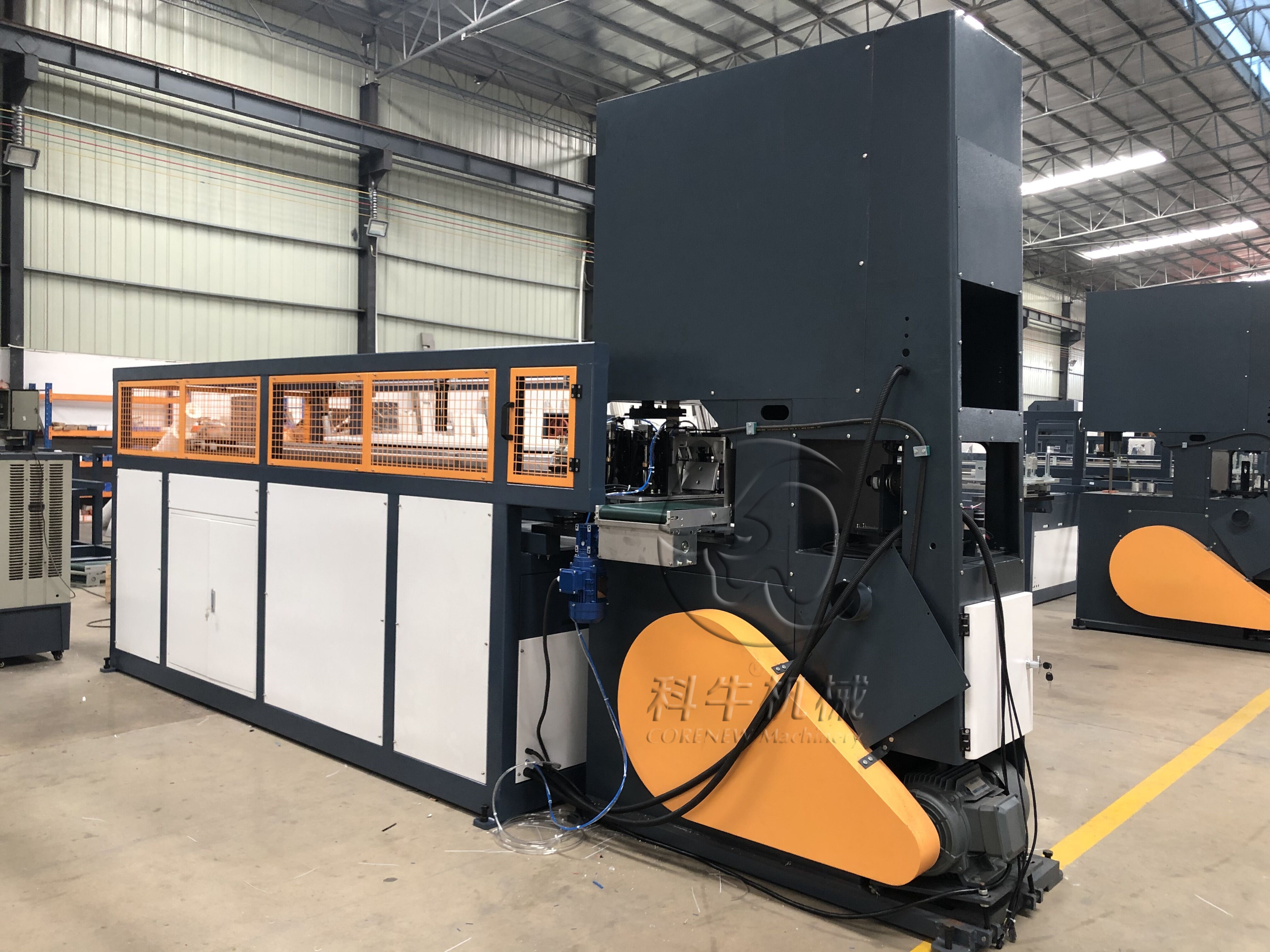

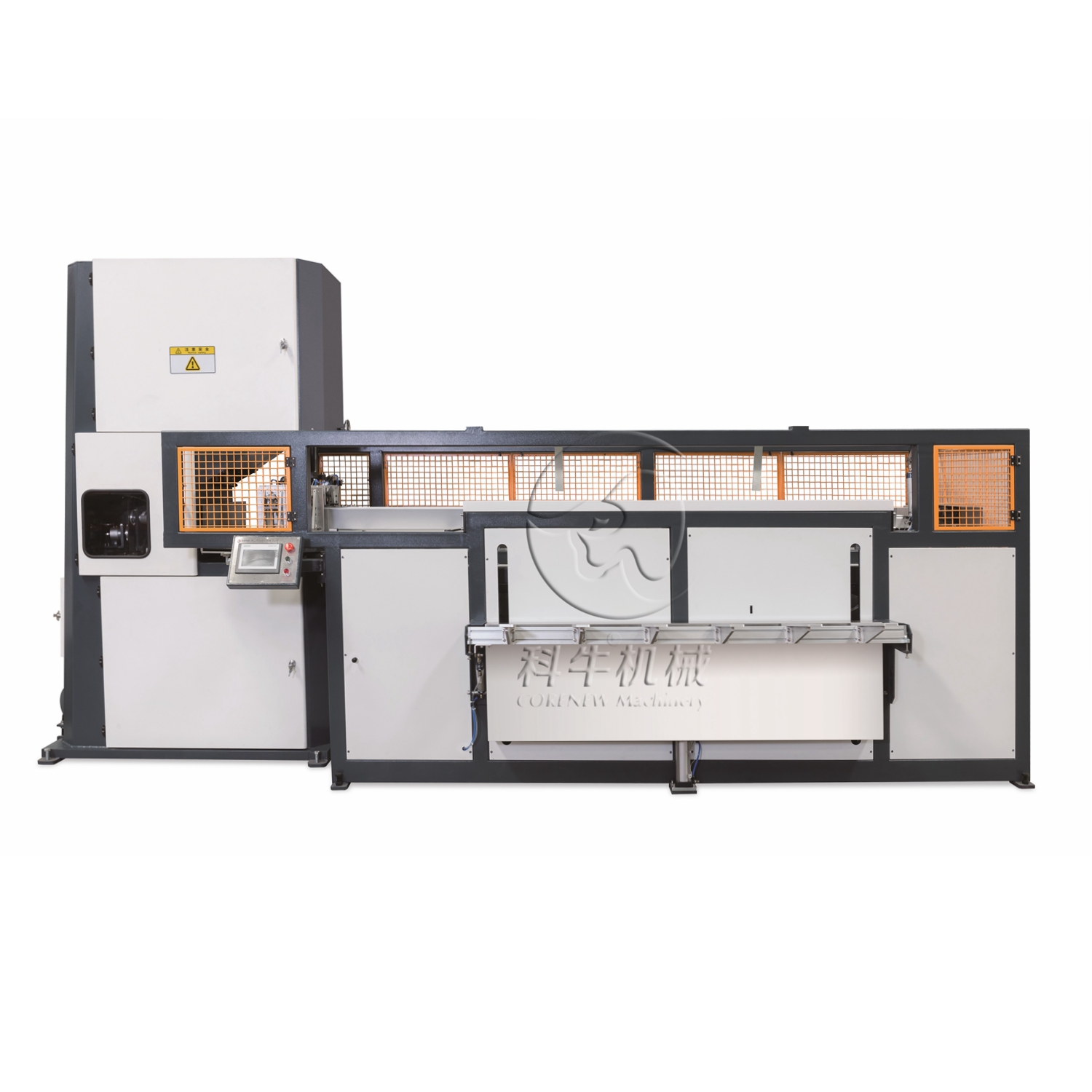

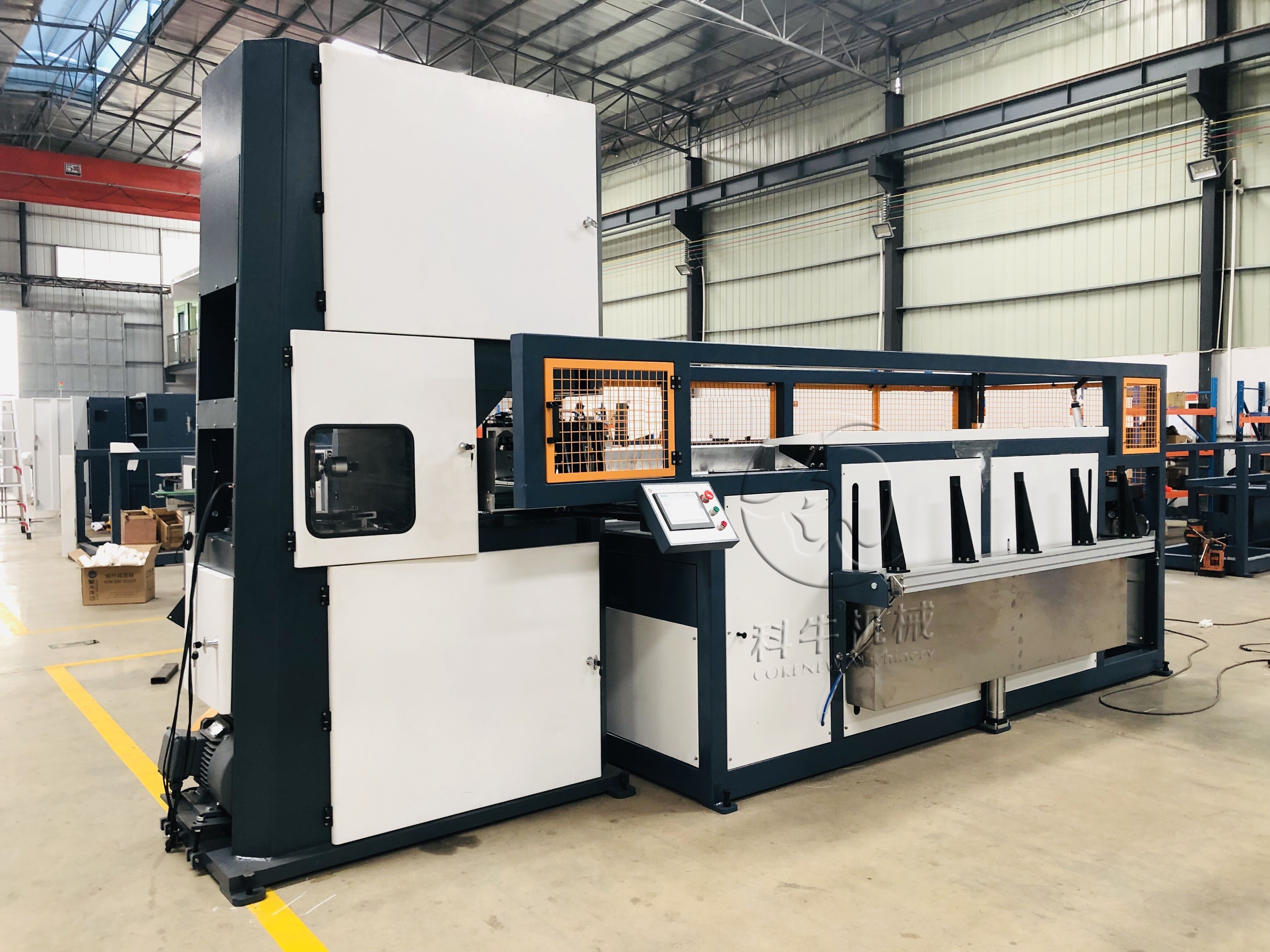

Products display:
 |  |  |
