ZDQ-T (2200/3000/3700)
CORENEW

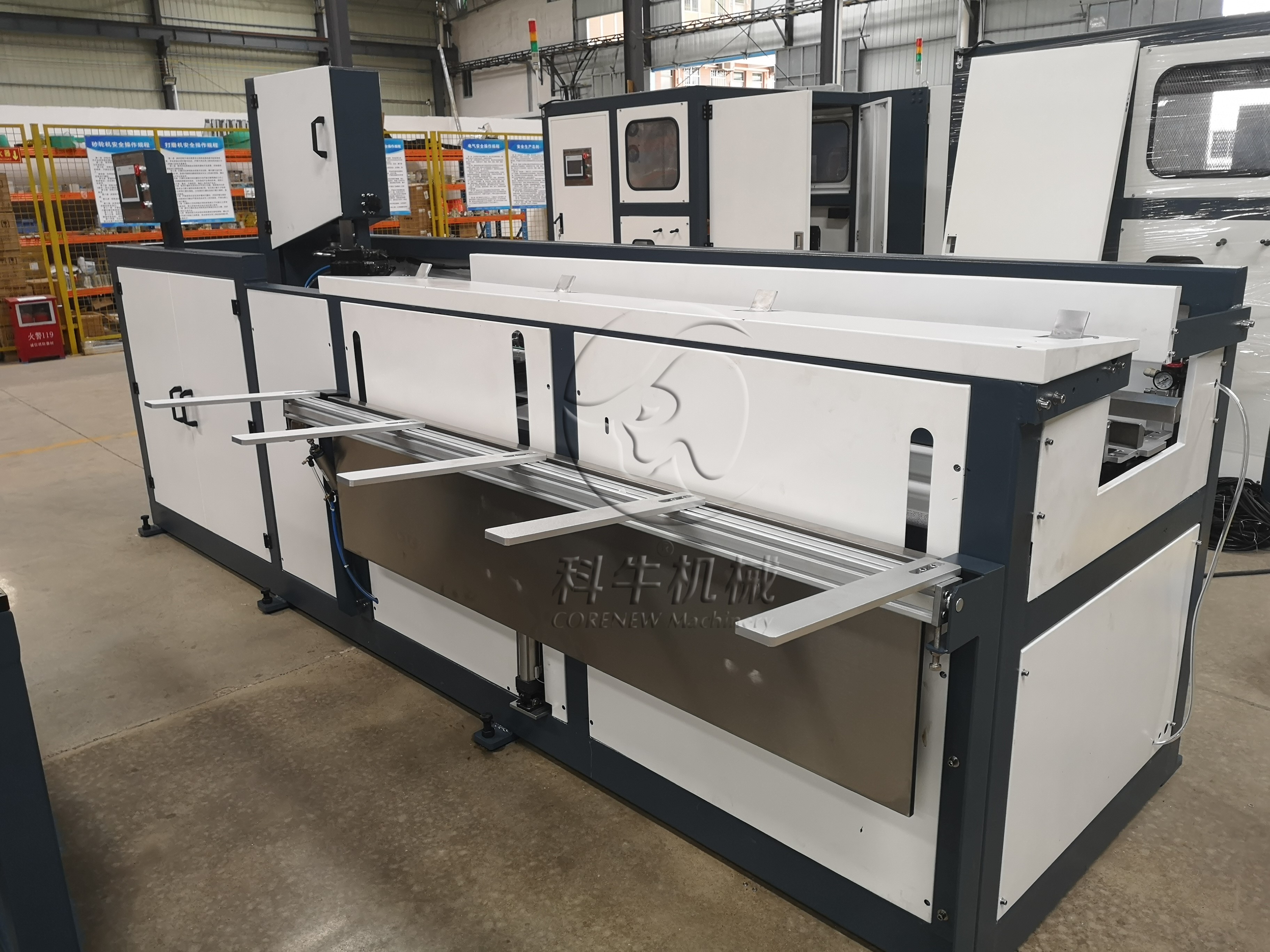

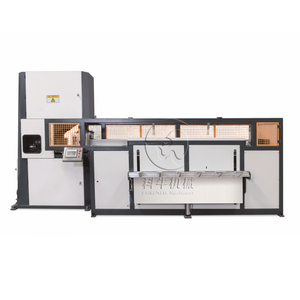

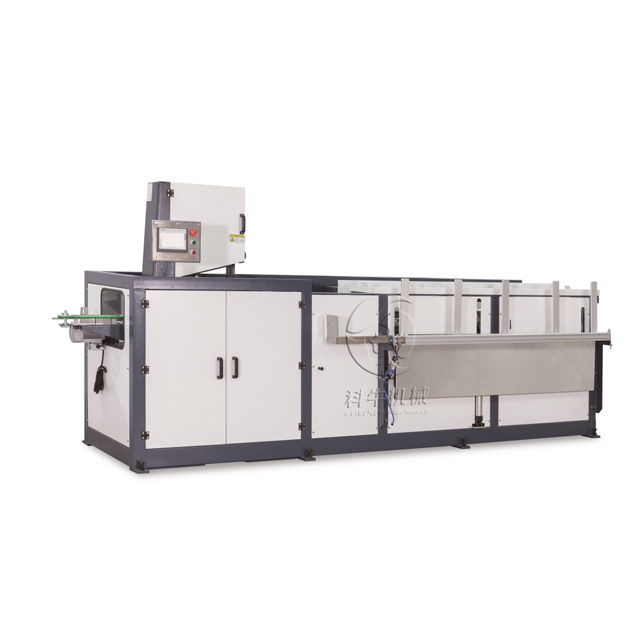

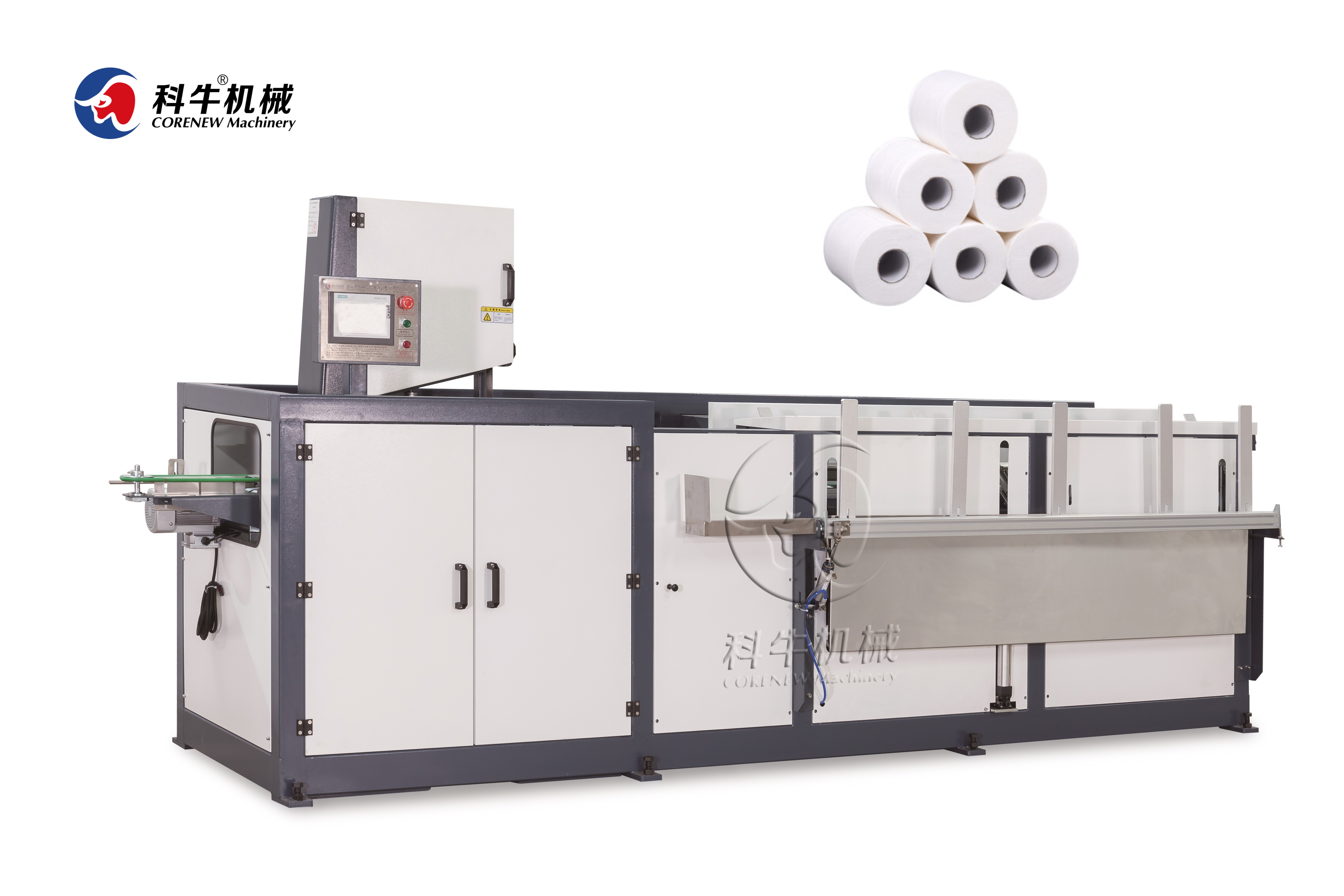

ZDQ-T TOILET ROLL/KITCHEN ROLL AUTOMATIC BANDSAW CUTTER
CHARACTERISTICS：
This machine is easy operated, low noise, stable moving and high-production.
Adopting with advanced PLC programming technology, speed controlled by inverter and touch-screen operation panel (SIEMENS brand)
Drived by servo motor

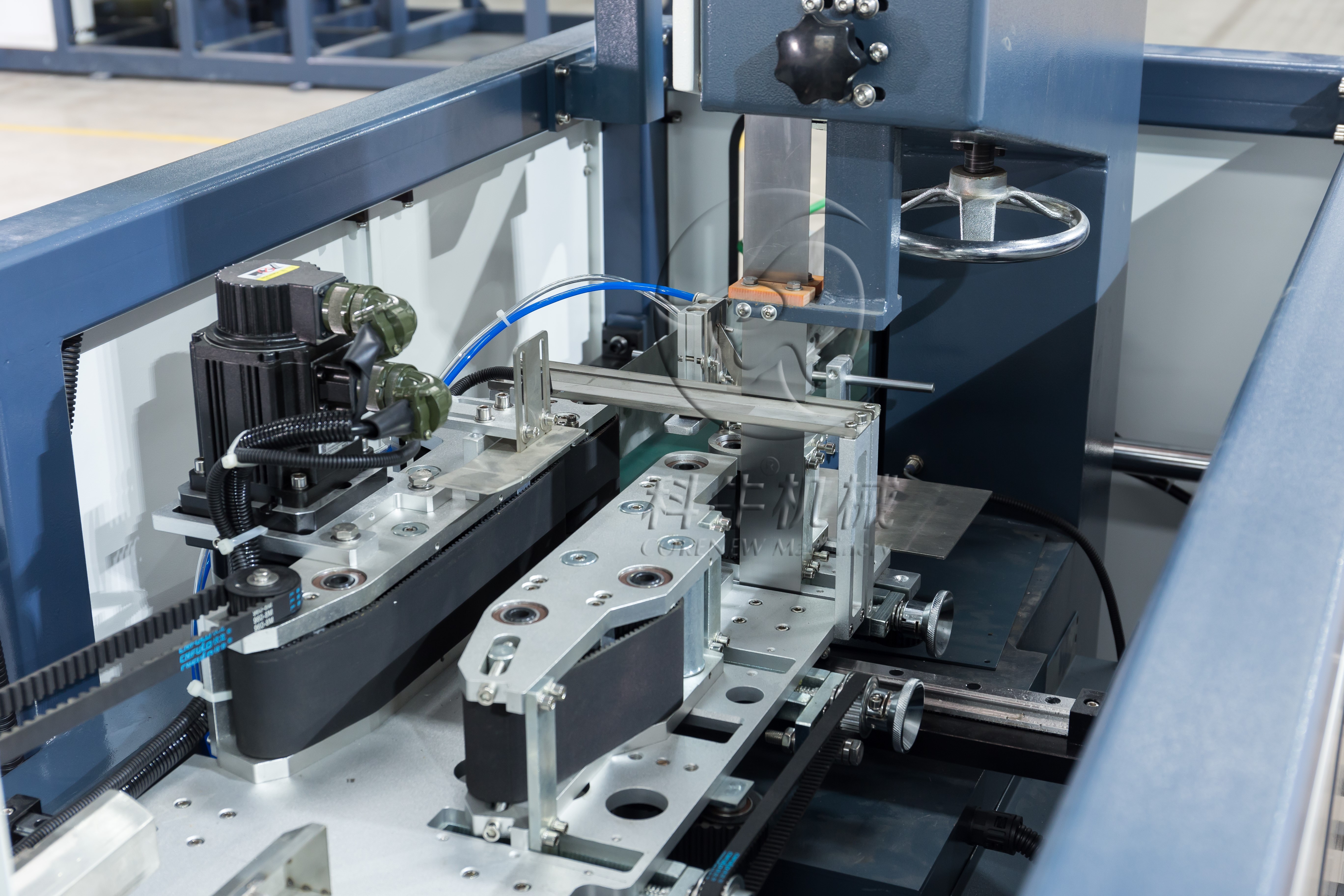

Log pusher controller by a servomotor, which provide the correct cutting length
Single feed channels，separate servo motor control
Automatic blade sharpening system, adjust by touch screen
Equipped with advanced photoelectric checking system
Automatic stop in case of misplacement or over of log
Automatic blade sharpening system, adjust by touch screen
Band saw knife wear and tear less than log saw cutter
Controlling screen sets all the slitting speed and length, so the smoothness and the continuity of pushing, slitting.
Can be cut the roll with core or coreless, with perfect cut.
TECHNICAL PARAMETERS:
Model | ZDQ-T2200 | ZDQ-T3000 | ZDQ-T3700 | ZDQ-T4000 |
Machine size | L3900*W2350*H1850mm | L4700*W2350*H1850mm | L5400*W2350*H1850mm | L5700*W2350*H1850mm |
Machine weight | 2800Kg | 3300Kg | 3700Kg | 3900Kg |
Tunnel size | L2200mmФ65-125mm | L3000mmФ65-125mm | L3700mmФ65-125mm | L4000mmФ65-125mm |
Number of lane | 1 | |||
Air pressure | 0.5mpa-0.8mpa | |||
Power | 4.5KW | |||
Operation speed | 100-150 cuts/min | |||
Cutting length | 90mm-180mm Tolerance ±1mm | |||
Voltage | Three-phase four wire，380V,50HZ( Others to be specified） | |||
Feeding control | PLC,Servo motor control, HMI | |||
Grinding control | Automatic feeding, grinding angle adjust by HMI | |||
Remark | Direct press flat function | |||

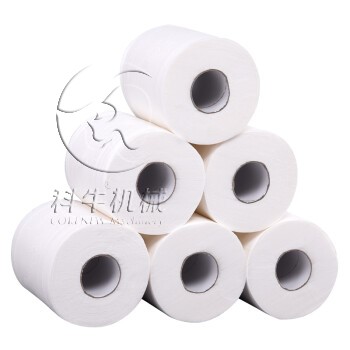

SAMPLES OF FINISHED PRODUCT:
|  |  |
