Toilet Roll Automatic Wrapping Machine

CHARACTERISTICS:

(1) Compact structure and easier operation.

(2) Servo motor control which assures more stable perfomance.

(3) PLC control which assures the machine running more stable.

(4) Different sizes toilet roll can be changed quickly based on the related mould.

(5) High speed: 200~220 rolls per minute.

Product Description

AUTOMATIC SINGLE TOILET ROLL WRAPPING MACHINE

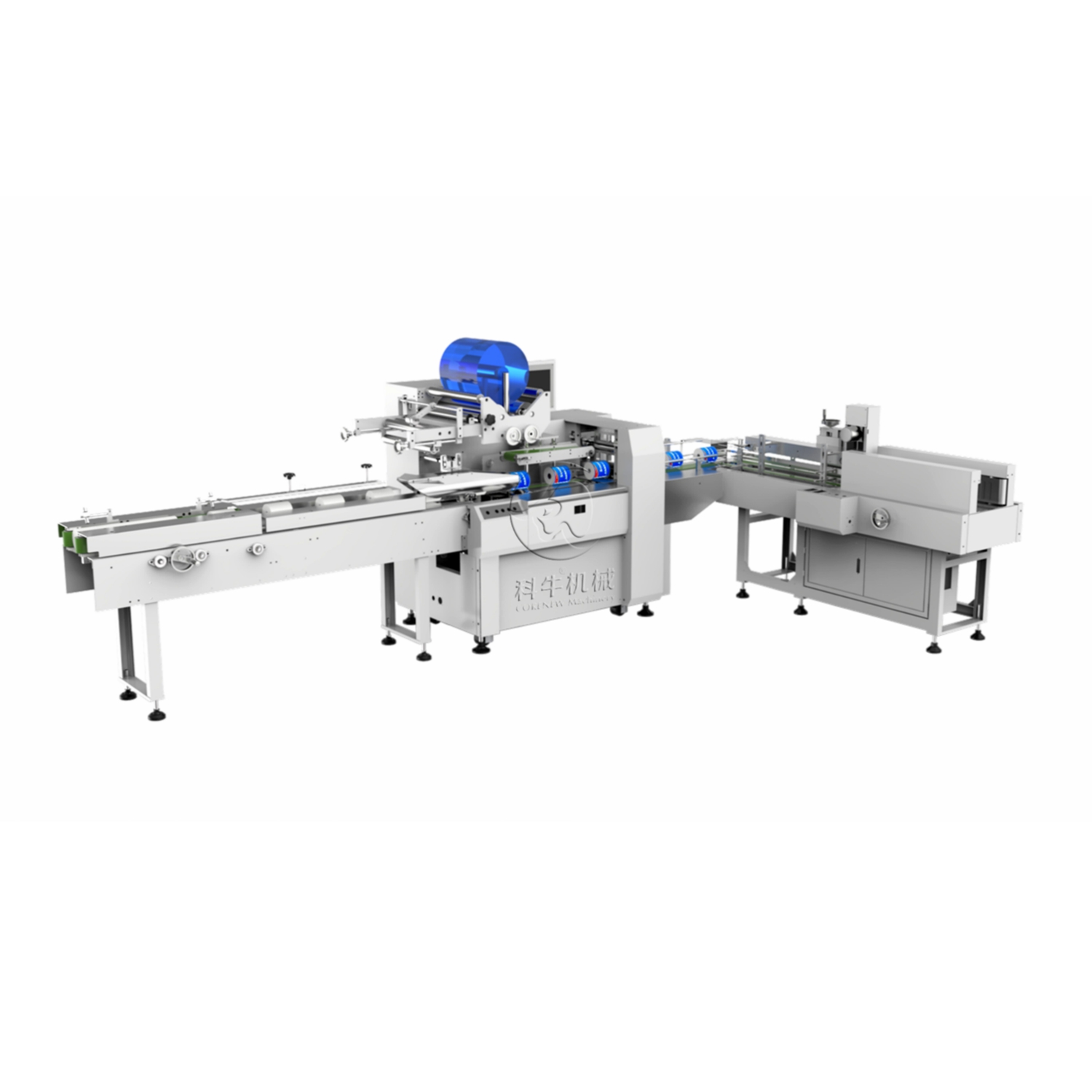

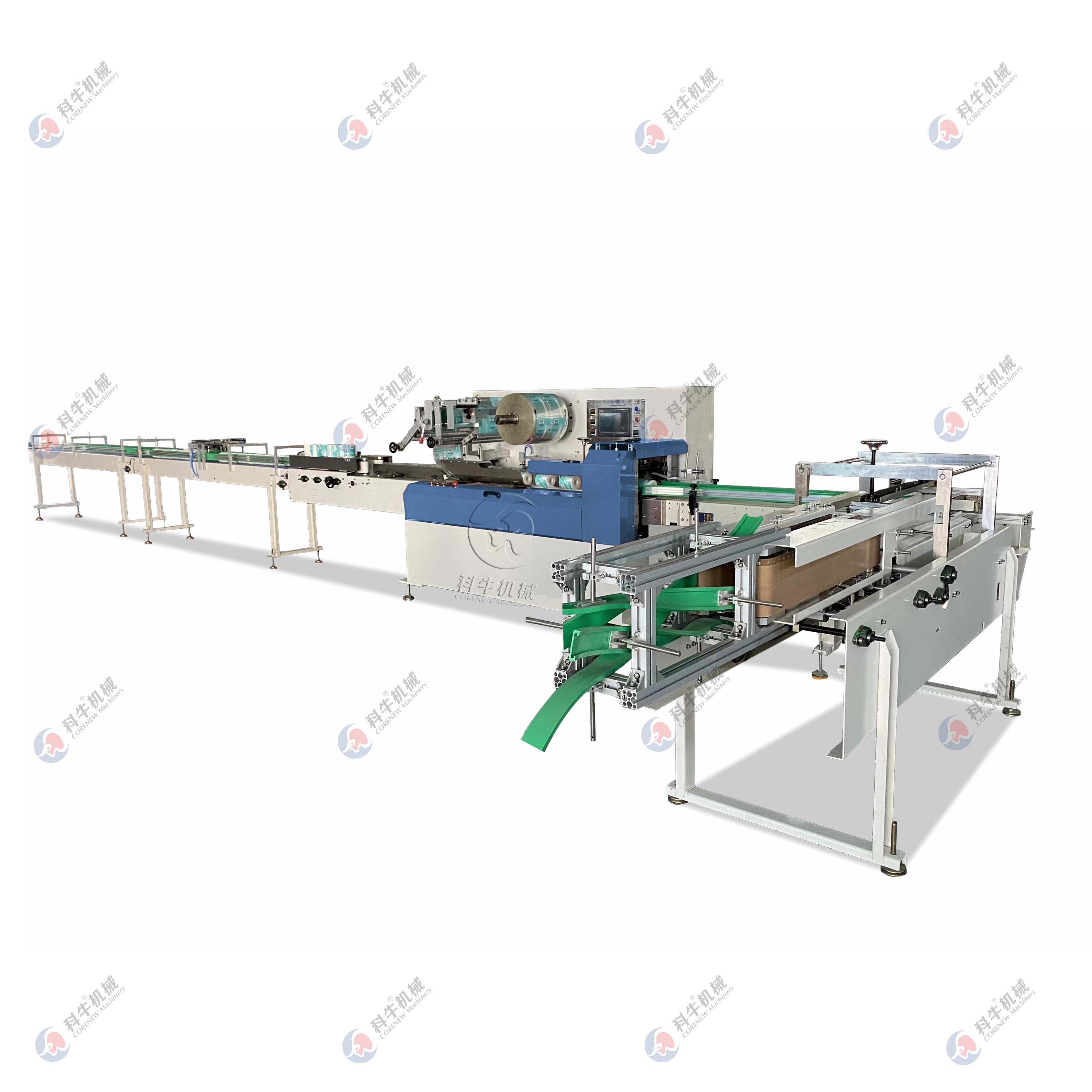

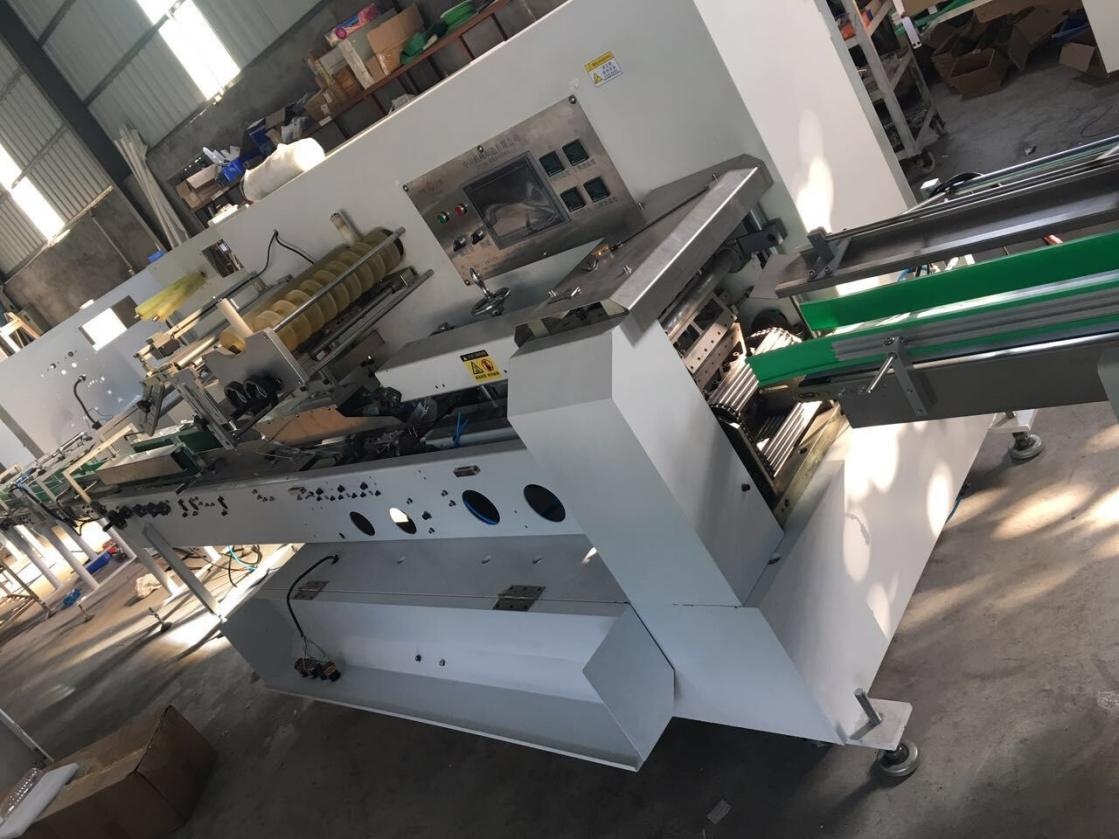

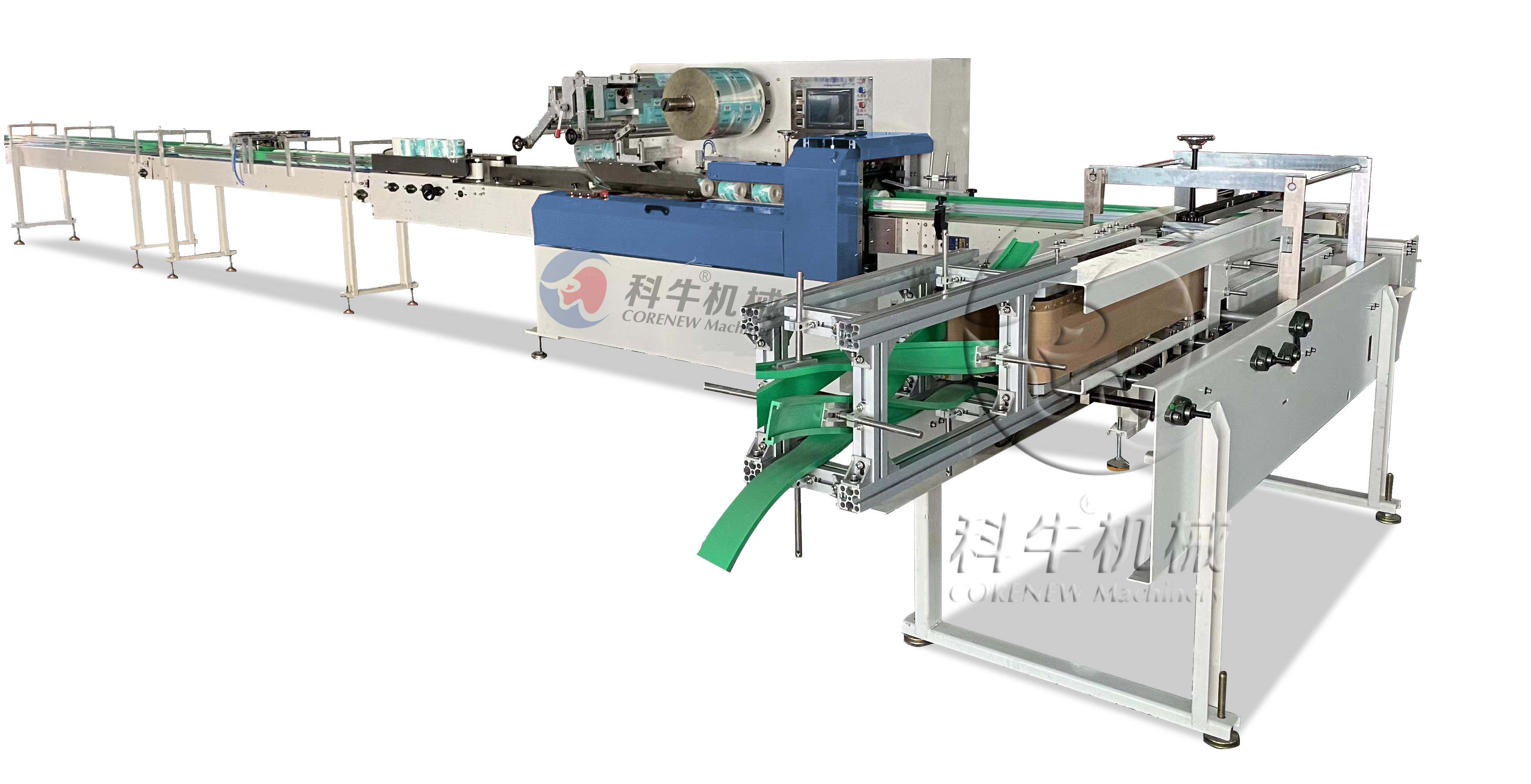

1. Equipment profile (The photos here are for reference only. Specifications are subject to physical product)

2. Technical reference

ITEM		UNITS	SPECIFICATION
Main Machine size		mm	Total length 8580+ width 3660 + height 1780
Major machine measurement X1	Length	mm	3368mm
	Width	mm	1050mm
	Height	mm	1500mm
Side sealing X1 【Standard】	Length	mm	3200mm
	Width	mm	2168mm
	Height	mm	1350mm
Conveyor X1	Length	mm	3000mm
	Width	mm	450mm
	Height	mm	1080mm
Machine weight		KG	1380kg
Running speed		roll/min	60-200
Packing range	Length	mm	90-150mm
Packing range	Diameter	mm	90-120mm
Packing materials		Film materials： SPP Double heat sealing film； Film thickness: 0.018mm~0.025 mm; Film roll max. diameter: ￠450mm； Film roll core diameter: 70mm -75mm The margin of middle sealing edge is not less than 20 mm
Power of the machine: 8.2Kw Included： Servo motor 1KWx1 , 0.75KWx1 , 0.4KW x3 AC motor 0.37KWx3 0.55KWx1 Heater：Vertical seal 0.4KWx4 Horizontal seal 0.5KWx4 Side sealing heater：2.4KWx2
Electrical equipment configuration：		Servo motor Delta B series	1.0 KW
			0.75 KW
			0.4 KW
		PLC	Delta EH3
		Screen	U-control 7 inch
		Sensor	Panasonic electric CX442
			Taiwan sensor
Pneumatic		Valve	AirTac
		Air cylinder	Starshine
		Filter	Starshine
		Air pipe	Sun rise
Date printer			Not have (OPTION)
Machine noised		DB	Less than 75db
Power Supply		380V/50HZ【3-phase 4-wire + ground wire】

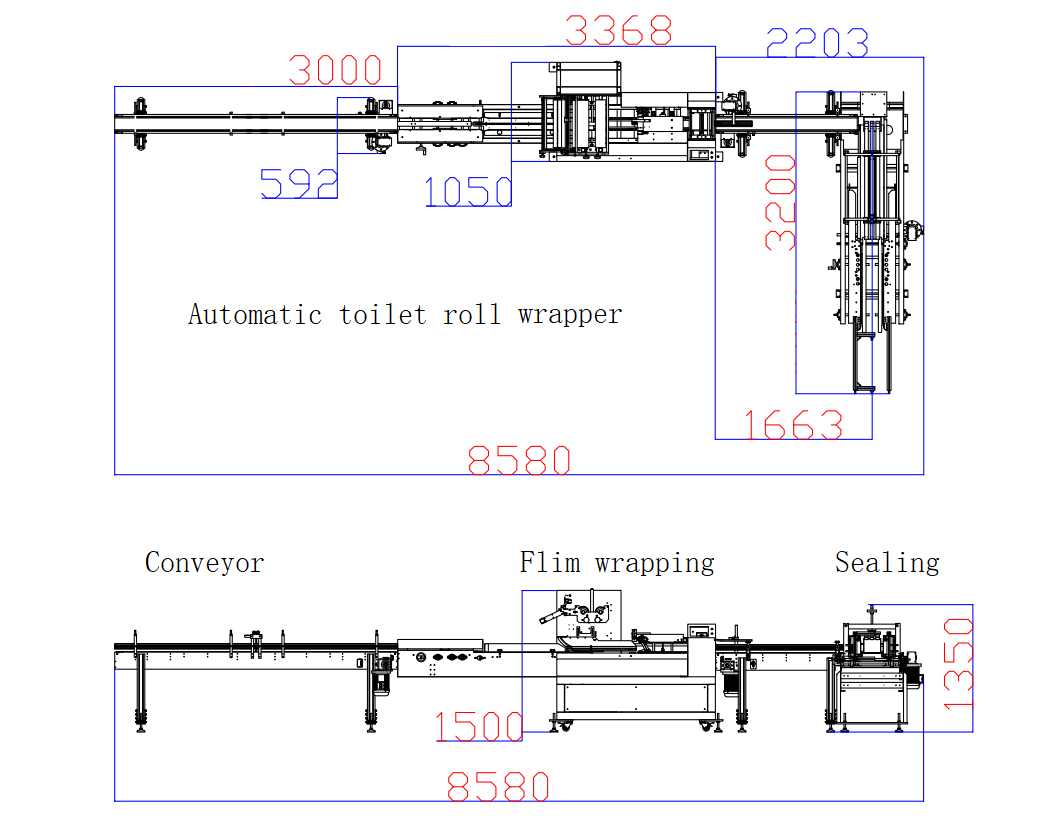

3. Layout
