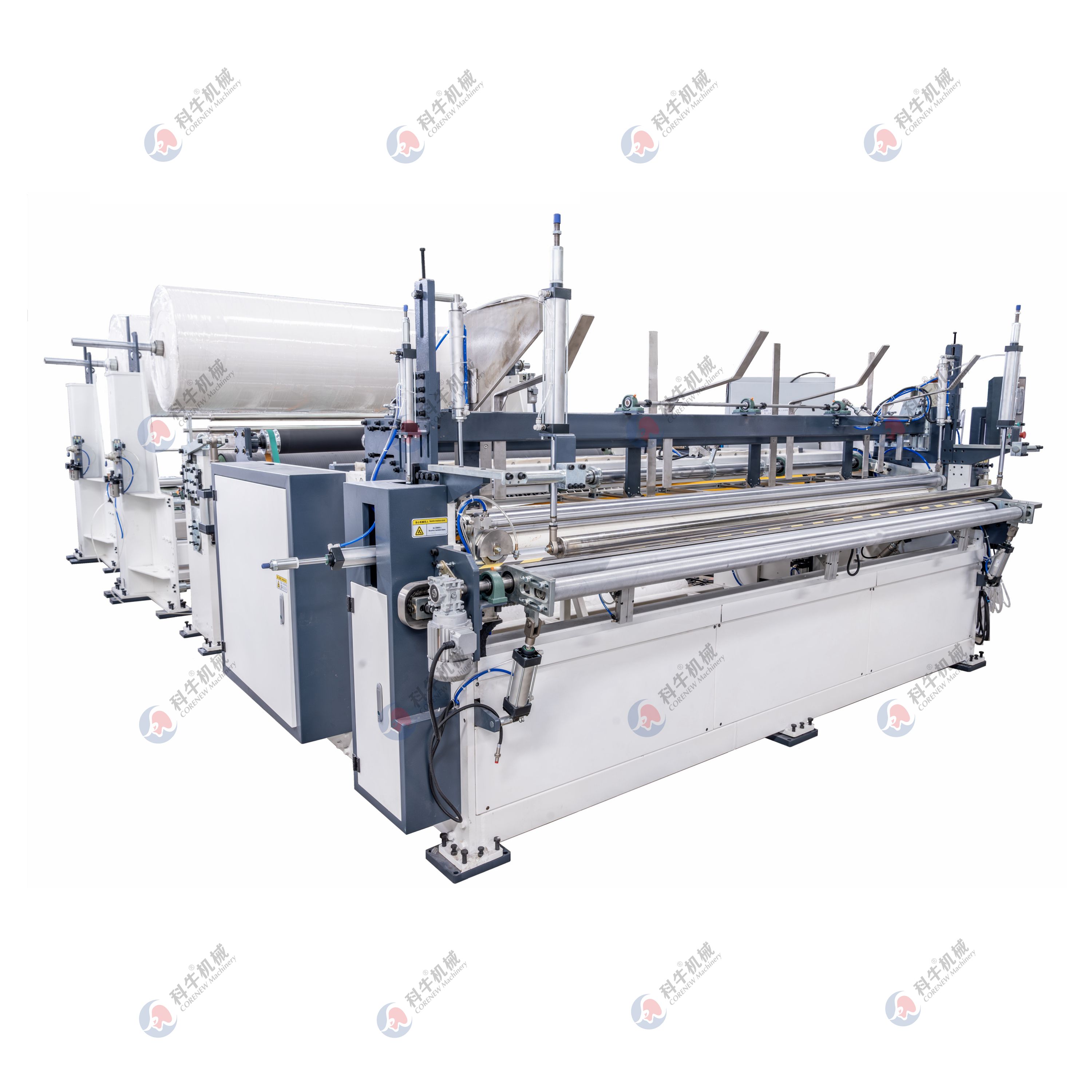

Automatic Toilet Roll / Kitchen Towel / Maxi Roll Rewinding Machine

Automatic Toilet Roll / Kitchen Towel / Maxi Roll Rewinding Machine


Jumbo roll Size:	2880
Availability:

Quantity:



Inquire

CHARACTERISTICS:
1.Start-stop type with production speed 250m/min
2.Integrated with core and coreless rewinding, diameter from 60-300mm adjustable.
3.Adopted PLC & HMI, independent motor drive and frequency conversion control.
4.Equipped with automatic core loading, tail trimming gluing sealing and riding roller function.
5.Equipped with embossing lamination unit for toilet roll and kitchen towel.
6.Equipped with edge embossing unit with airbag pressurization.
7.Automatic unload function, connection with production line.
8.Unwind stand with crane loading paper roll.

Model:
CNR-MT3000 (2200D)
Brand:
CORENEW

Product Description

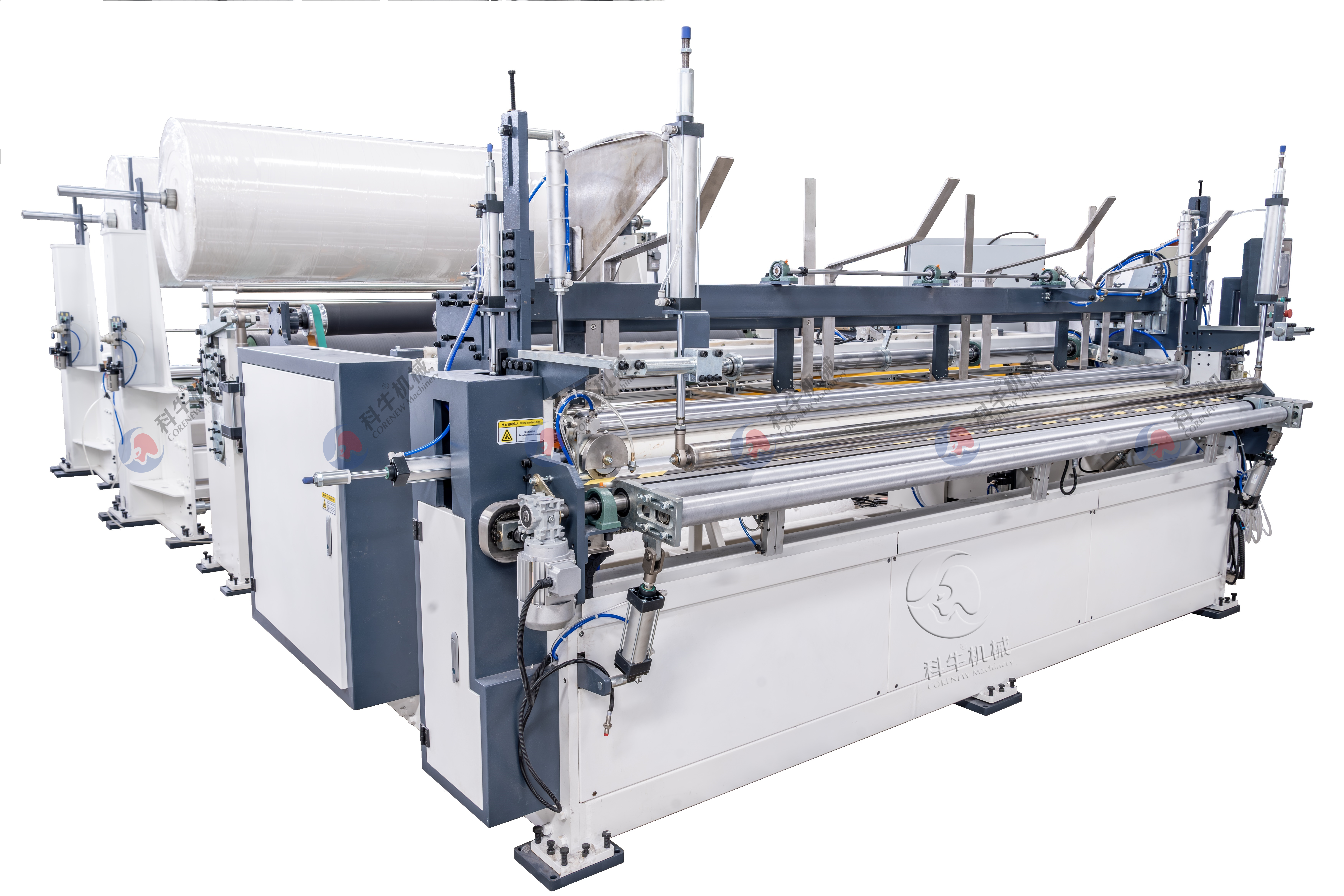

CNR-MT AUTOMATIC TOILET ROLL/KITCHEN TOWEL/MAXI ROLL (JRT) REWINDING MACHINE

MT3000

This rewinding machine has functions can produce Maxi roll (JRT), kitchen towel and toilet roll, the production roll diameter from 90mm to 300mm, full automatic rewinding, automatic transfer, cutting and then packing. The machine adopts the independent motor frequency conversion speed regulation, with a stable working, easy operation,the high-grade quality.

TECHNICAL PARAMETERS:

Model	2200	3000	3700
Width of parent reel	1750-2150mm	2550-2950mm	3200-3600mm
Diameter of parent reel	≤2400mm (customization is required in case of >2500)
Core diameter of parent reel	Dia.76mm (customization is required in case of other sizes)
Size of finished product	Dia.80-250mm
Paper core diameter	Dia.35-76mm
Perforation	Rotating perforating roll with 4 anvil blades
Winder	Integrate core/coreless equipment, and maxi-roll core adapters
Control system	PLC, converter, electromechanical and optic integrated control
Speed	250m/min
Optional items
Unwind stand	1-4 layers, independent driving, crane loading parent reel
Embossing device	Single embossing system: Steel-to-rubber, steel-to-steel, steel-to-paper
	Lamination system: Point-to-point, nested-to-nested, decor
