Double Lanes Facial Tissue Log Saw Cutter

Double Lanes Facial Tissue Log Saw Cutter


Availability:

Quantity:



Inquire

CHARACTERISTICS:
1.Production speed 250cuts/min *2lines.
2.Strong wallboard structure.
3.Equipped with servo system can guarantee the cutting size is more precocious.
4.Equipped with automatic photocell inspection system, the blade will stop cutting when no paper log feeding.
5.Equipped with automatic grinding system, it can ensure the blade remain sharp.

Model:
LC-II-FT350
Brand:
CORENEW

Product Description

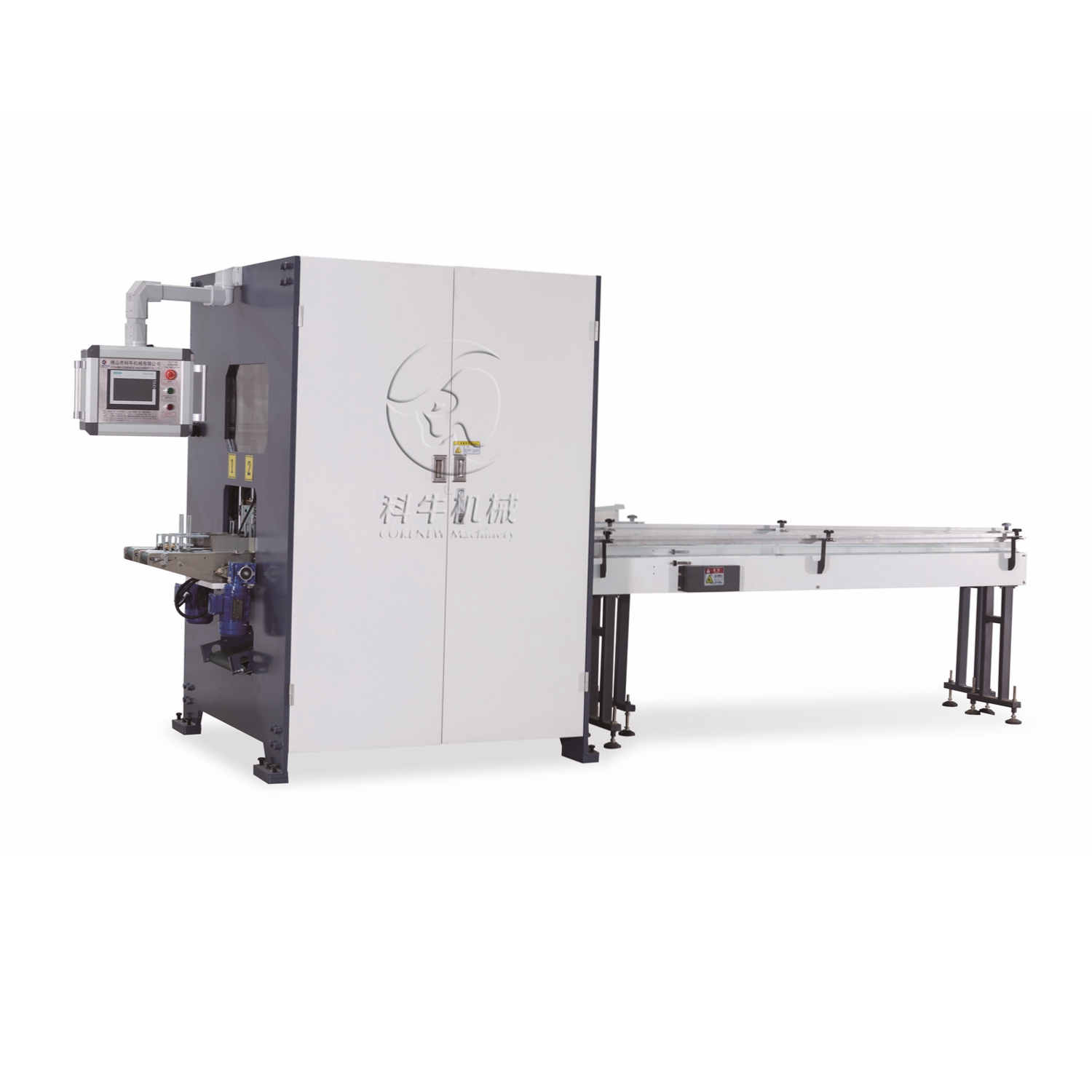

LC-II-FT350 DOUBLE LANES LOG SAW CUTTER

This machine is suitable for automatic slitting facial tissue log into regular size which can increase the working efficiency and the product quality.

Logsaw2L

TECHNICAL PARAMETERS:

Model	LC-II-FT350
Cutting channel	Dual channel
Log length	500~2100mm
Paper cutting specification	L: 90-230mm
	W: 80-115mm
	H: 20~120mm (other specify)
Production speed	250 cuts/min *2lanes
Diameter of the blade	610mm
Minimum diameter available	410mm
Control system	PLC, Servo drive, touch screen
Total power	11KW
Power supply	3Phase 380V/50Hz (other specify)
Air pressure	0.5MPa (Provided by the buyer)
Machine dimension	4500mm×1800mm×2100mm
Machine weight	2500kg

PRODUCTS DISPLAY:
