High Speed Facial Tissue Log Saw Cutter


Availability:

Quantity:



Inquire

CHARACTERISTICS:
1. Production speed 200m/min.
2. Strong wallboard structure.
3. Equipped with servo system can guarantee the cutting size is more precocious.
4. Equipped with automatic photocell inspection system, the blade will stop cutting when no paper log feeding.
5. Equipped with automatic grinding system, it can ensure the blade remain sharp.

Model:
LC-FT200
Brand:
CORENEW

Product Description

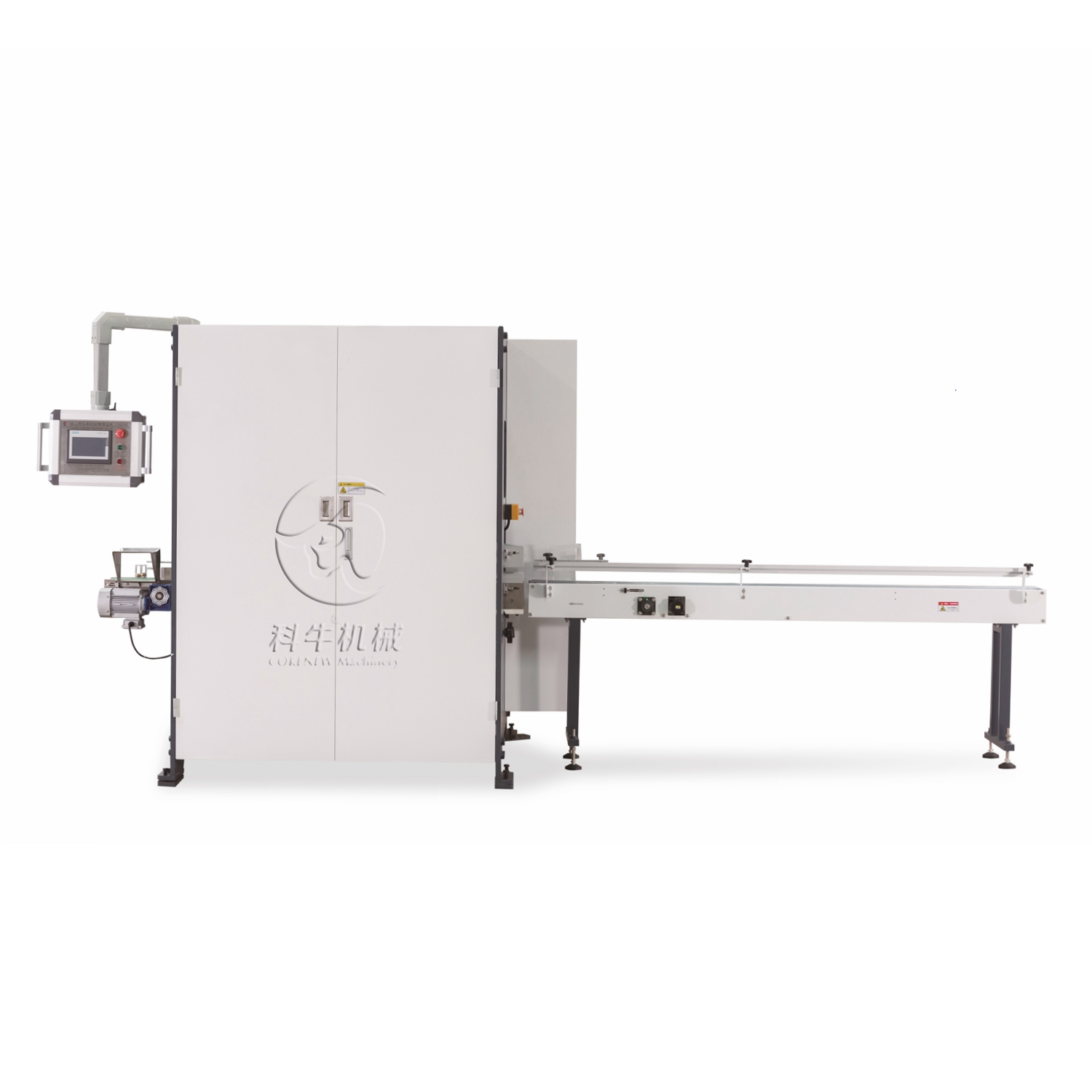

LC-FT200 LOG SAW CUTTER

This machine is suitable for automatic slitting facial tissue log into regular size which can increase the working efficiency and the product quality.

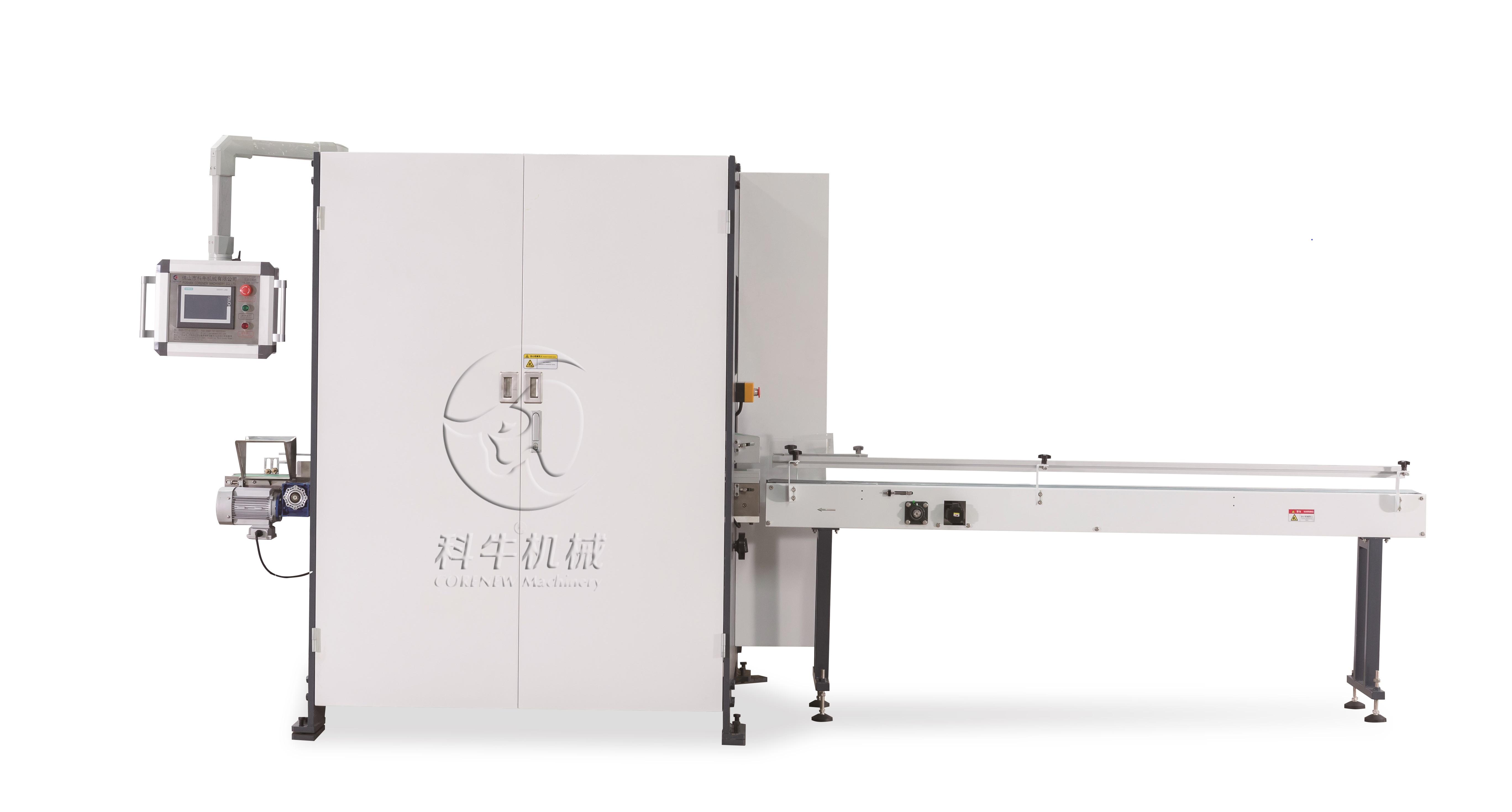

Logsaw200

TECHNICAL PARAMETERS:

Model	LC-FT200
Cutting channel	Single channel
Log length	500~2100mm
Paper cutting specification	L: 90-230mm
	W: 80-115mm
	H: 20~150mm
Production speed	180 cuts/min
Diameter of the blade	610mm
Minimum diameter available	410mm
Control system	PLC, Servo drive, touch screen
Total power	9.7 KW
Power supply	3Phase 380V/50Hz (other specify)
Air pressure	0.5MPa (Provided by the buyer)
Machine dimension	4500mm×1500mm×2100mm
Machine weight	2000kg

PRODUCTS DISPLAY

Related News

content is empty!

Related Products

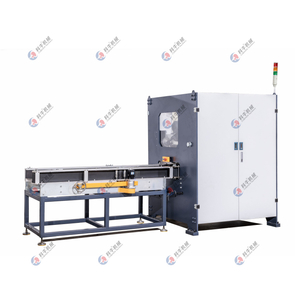

Towel Paper Log Saw Cutter
