LC-N100
CORENEW

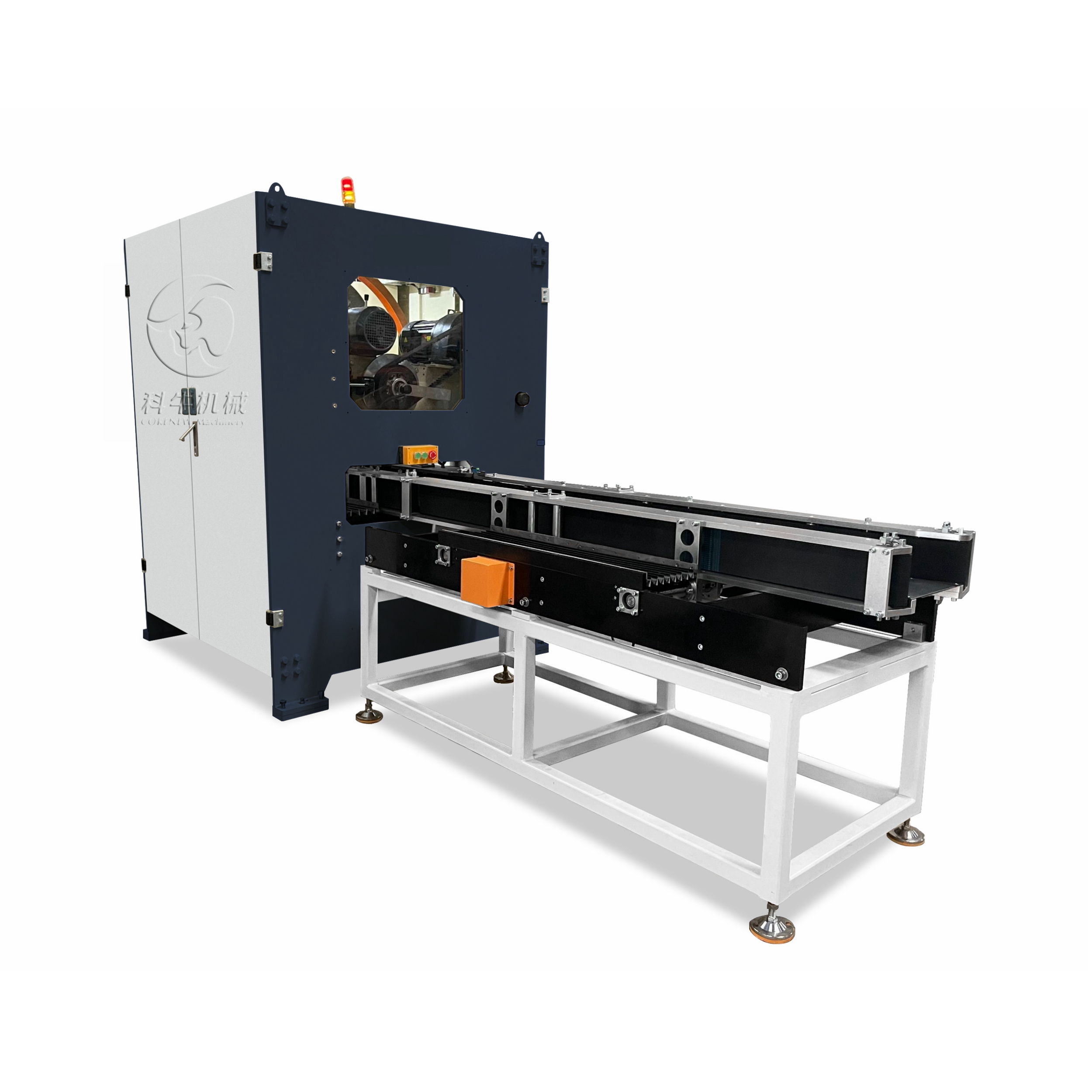

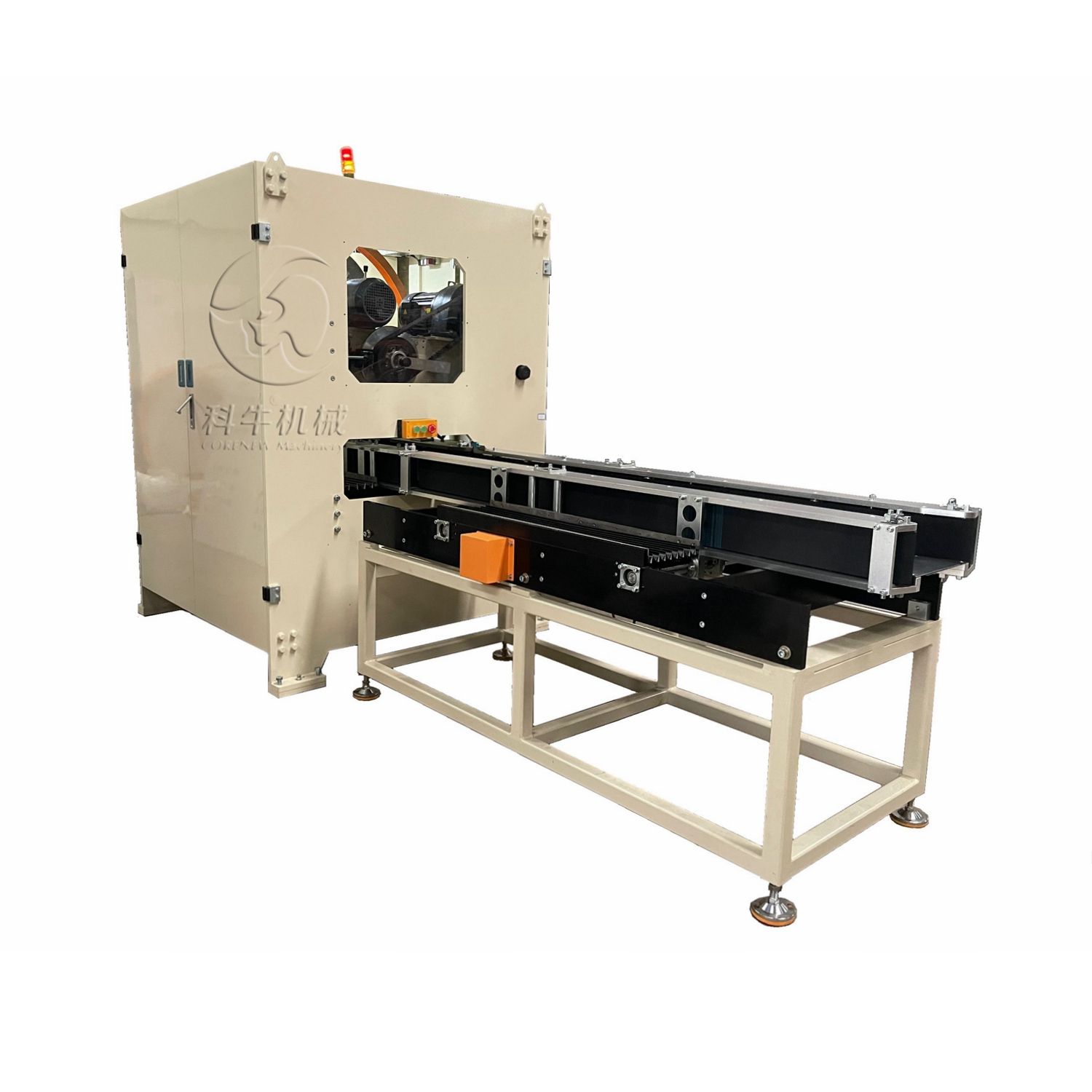

LC-N100 LOG SAW CUTTER
This machine is suitable for automatic cutting bottom-pull facial tissue / hand towel paper log into regular size which can increase the working efficiency and the product quality.
TECHNICAL PARAMETERS:
Model | LC-N100 |
Cutting channel | Single channel |
Log length | 500~2100mm |
Paper cutting specification | L: 90-230mm |
W: 200-400mm | |
H: 20~150mm | |
Production speed | 100 cuts/min |
Diameter of the blade | 610mm |
Minimum diameter available | 520mm |
Control system | PLC, Servo drive, touch screen |
Total power | 10.3 KW |
Power supply | 3Phase 380V/50Hz (other specify) |
Air pressure | 0.5MPa (Provided by the buyer) |
Machine dimension | 4000mm×1500mm×2100mm |
Machine weight | 2000kg |
