CNF-AB180/7L
XINTEBO

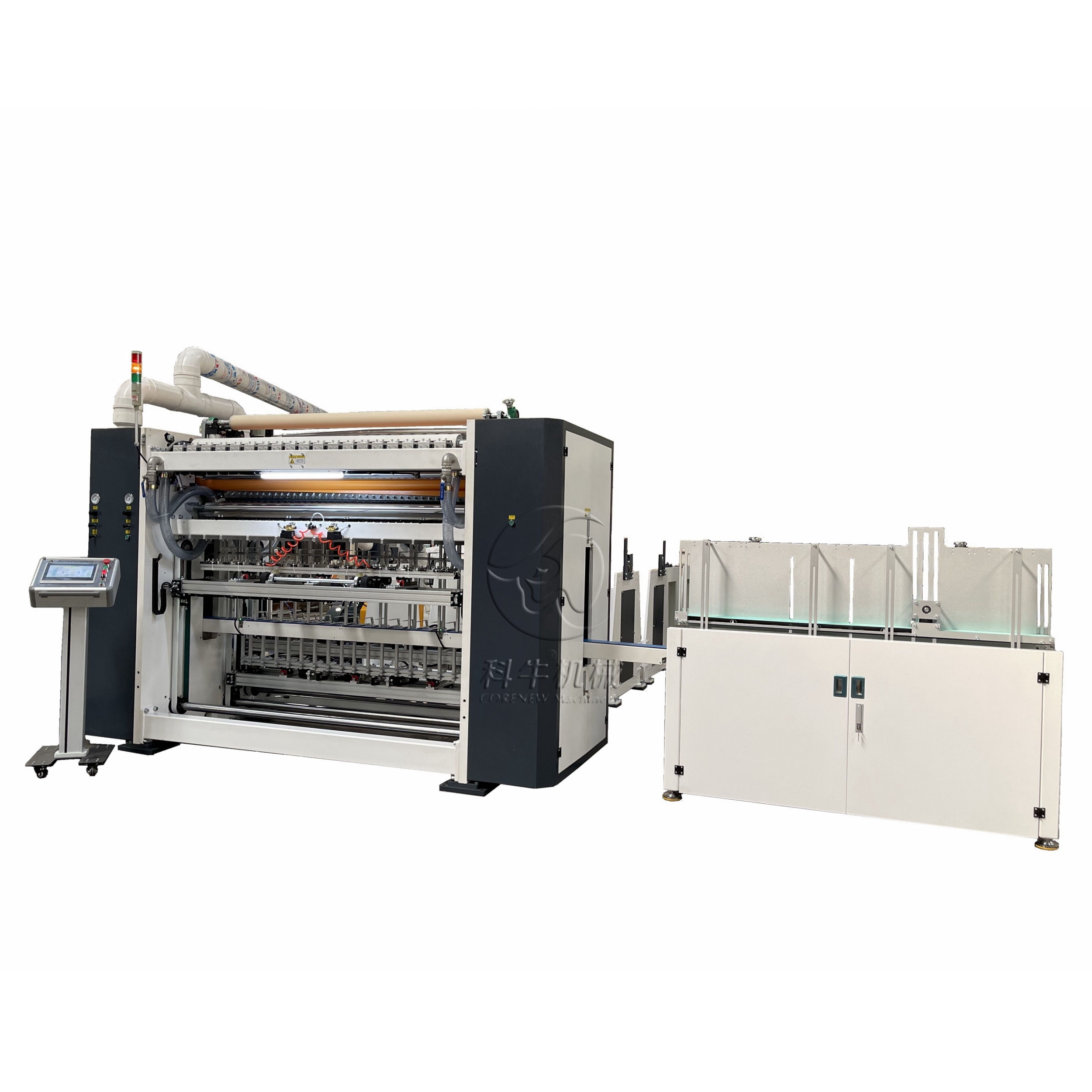

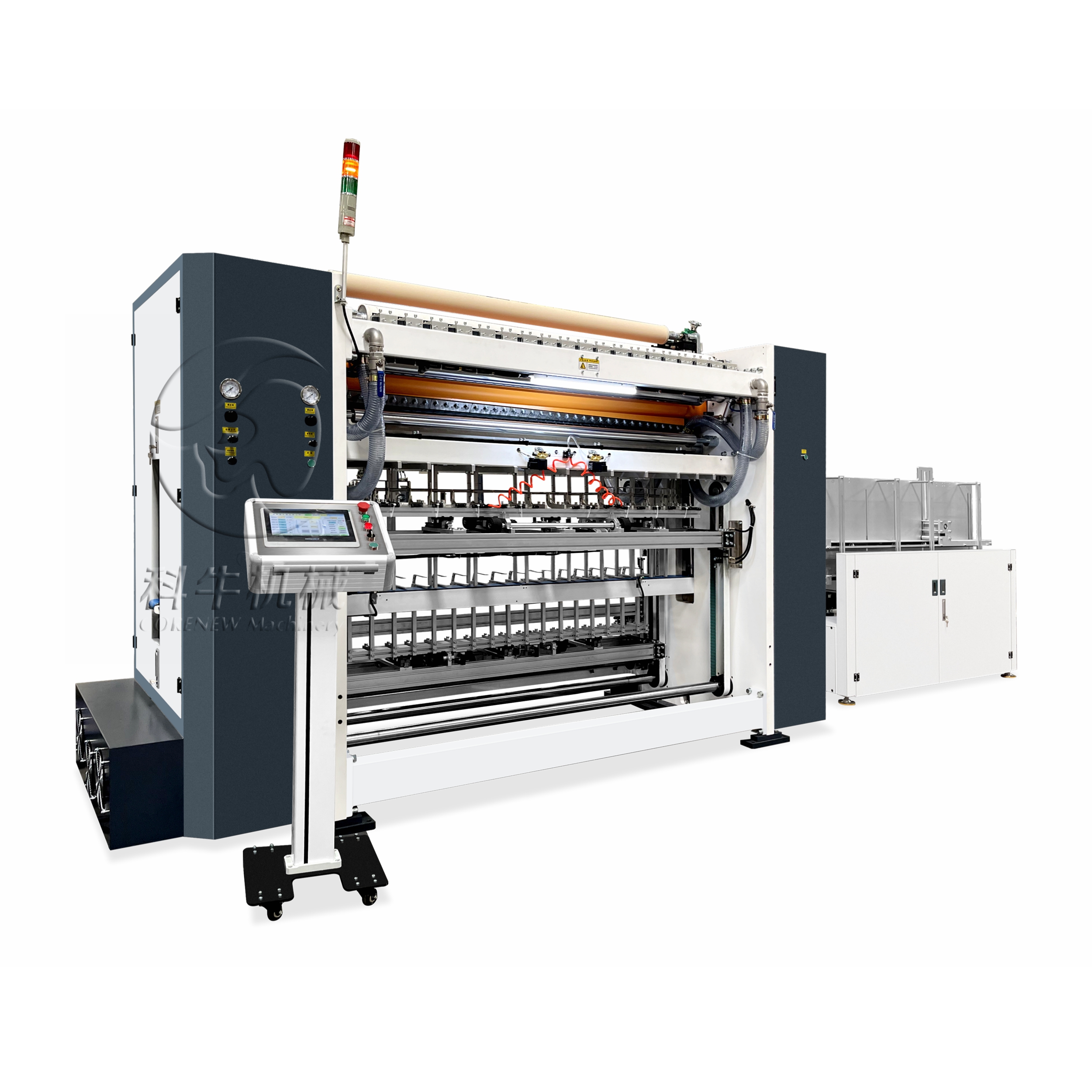

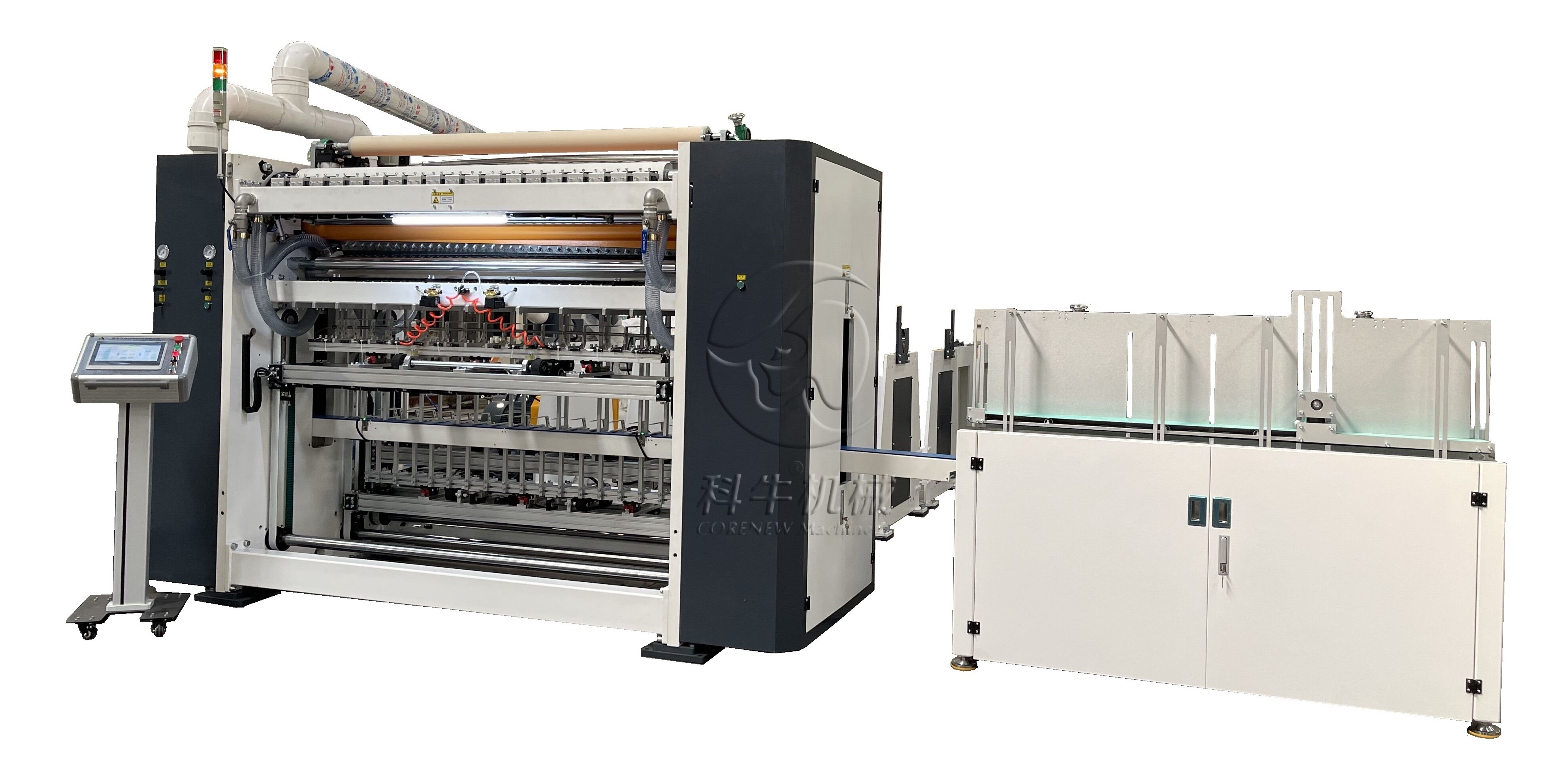

CNF-AB180/7L FULLY AUTOMATIC BOTTOM PULL FACIAL TISSUE FOLDING MACHINE
This machine with full automatic, from jumbo roll to finished production, PLC & HMI control system, each unit is driven by independent motor (servo motor), simple structure decrease failure rate. Patent-tech spiral blade cutting structure, precisely counting system and nice folding effect, could greatly increase qualification rate.
TECHNICAL PARAMETERS
Model | 7lanes | 8lanes | 9lanes | 10lanes | 14lanes |
Width of parent reel | 1450mm | 1730mm | 1920mm | 2050mm | 2850mm |
Diameter of parent reel | ≤Ф1500mm (customization is required in case of >Ф1500) | ||||
Core diameter of parent reel | Ф76mm (customization is required in case of other sizes) | ||||
Sheet length (fixed) | Option 175/180/190/200/210/225/240 | ||||
Paper quantity | 13-22g/m² | ||||
Folding type | V fold | ||||
Control system | PLC, converter, electromechanical and optic integrated control | ||||
Transfer system | Servo control, automatic folding, counting and auto-transfer | ||||
Optional items | |||||
Unwind stand | 1-4 layers, independent driving, crane loading parent reel | ||||
Embossing device | Edge embossing system | ||||
Full embossing system: Steel-to-rubber, steel-to-steel, steel-to-paper | |||||

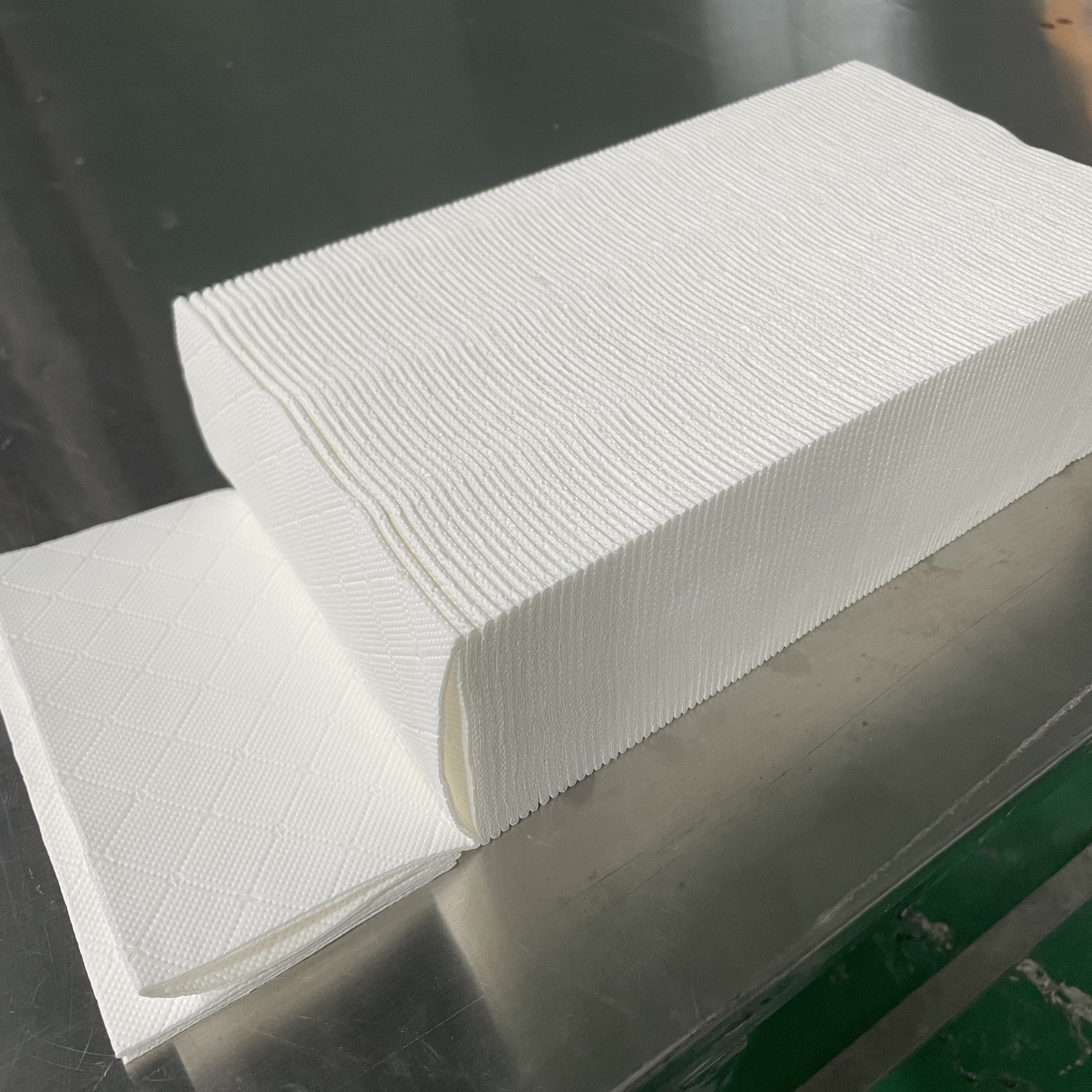

PRODUCTS DISPLAY
|
| |  |
