Facial Tissue Interfold Machine


Availability:

Quantity:



Inquire

CHARACTERISTICS:
1. Stable production speed: ≥110m/min.
2. Each unit is driven by independent servo motor, simple structure decreases failure rate.
3. Core technology has obtained multiple national patents.
4. Precisely processing suction system and nice folding effect.
5. Traction feeding part (servo motor control, adjustable speed ratio)
6. Optional counting function, ink marks or mechanical stagger.

7. Equipped with edge embossing unit with airbag pressurization

Model:
CNF-F175/(7l-10L)
Brand:
CORENEW

Product Description

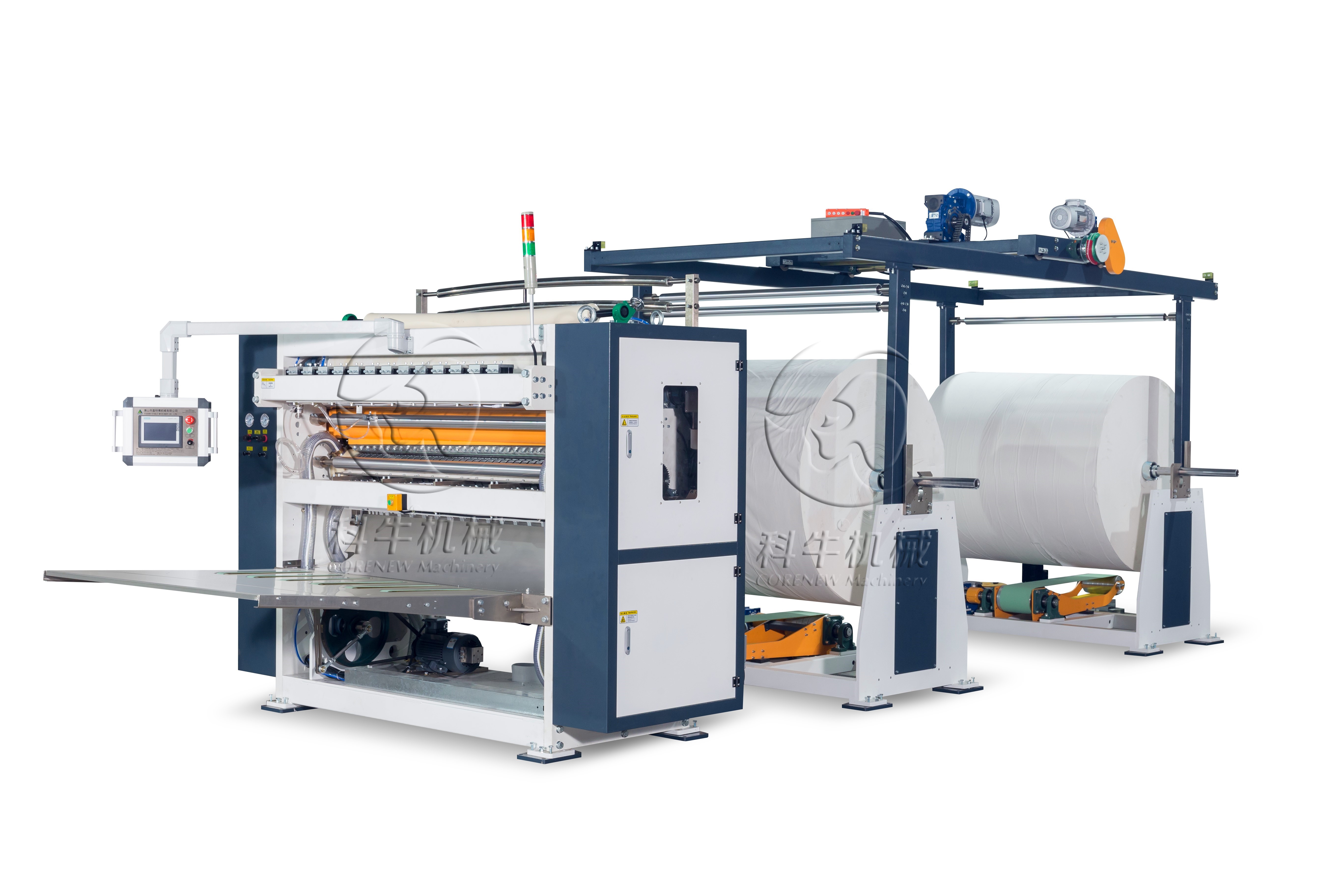

CNF-F175/(7l-10L) Facial tissue folding machine

This machine is process folded into V type facial tissue. It adopt advanced PLC programmable control technology, servo system and converter control. Precisely folding system and nice folding effect, manual transfer.

TECHNICAL PARAMETERS:

Model	7lanes	8lanes	9lanes	10lanes
Width of parent reel	1450mm	1730mm	1920mm	2050mm
Diameter of parent reel	≤Ф1500mm (customization is required in case of >Ф1500)
Core diameter of parent reel	Ф76mm (customization is required in case of other sizes)
Sheet length (fixed)	Option 180/185/190/195/200/210/225
Paper quantity	11-22g/m² 1~4plies
Folding type	V fold
Control system	PLC, converter, HMI control
Unwind stand	Independent driving, crane loading parent reel
Optional items
Unwind stand	1-6 layers, independent driving, crane loading parent reel
Embossing device	Single embossing system: Steel-to-rubber, steel-to-steel, steel-to-paper
