CNF-AE175-7L
XINTEBO

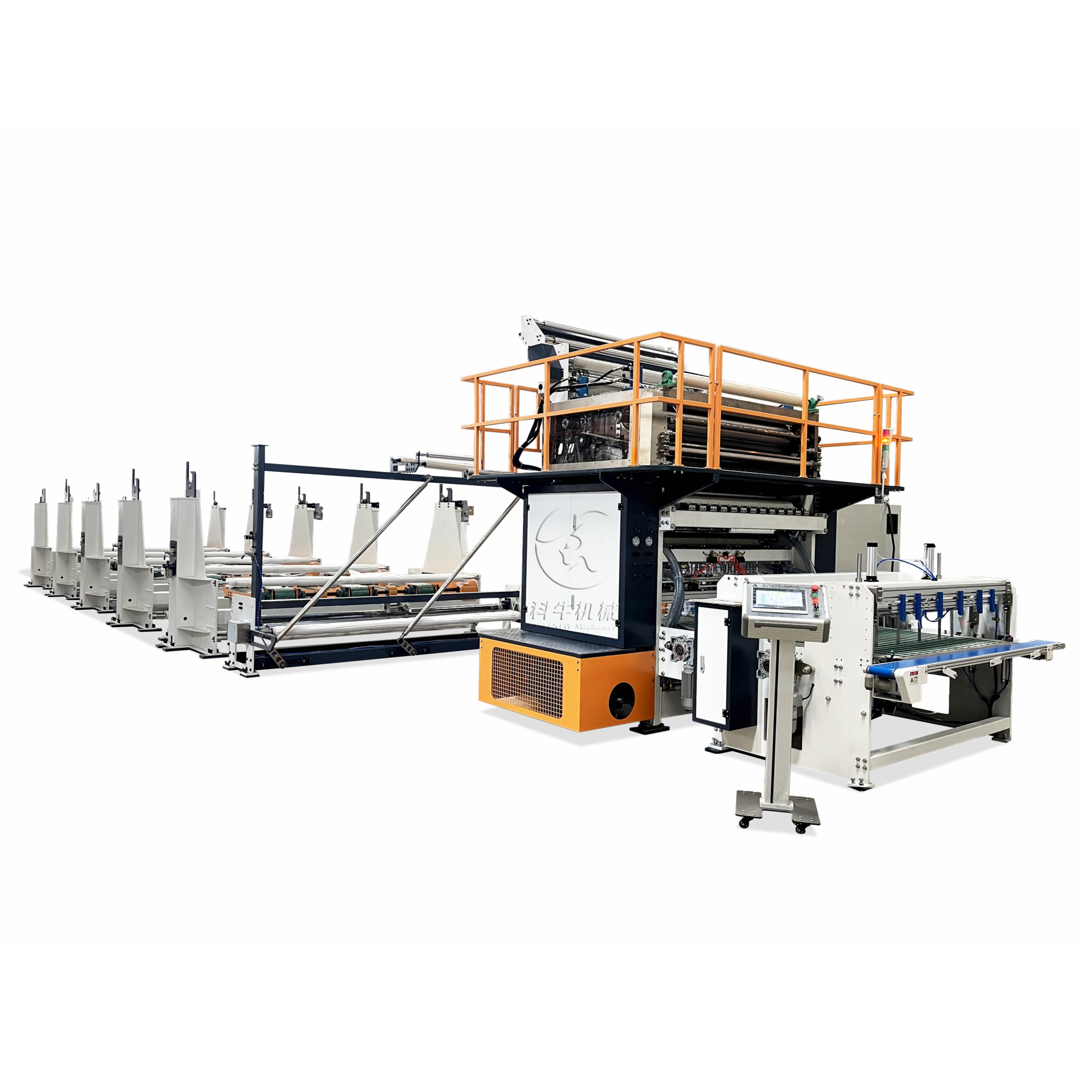

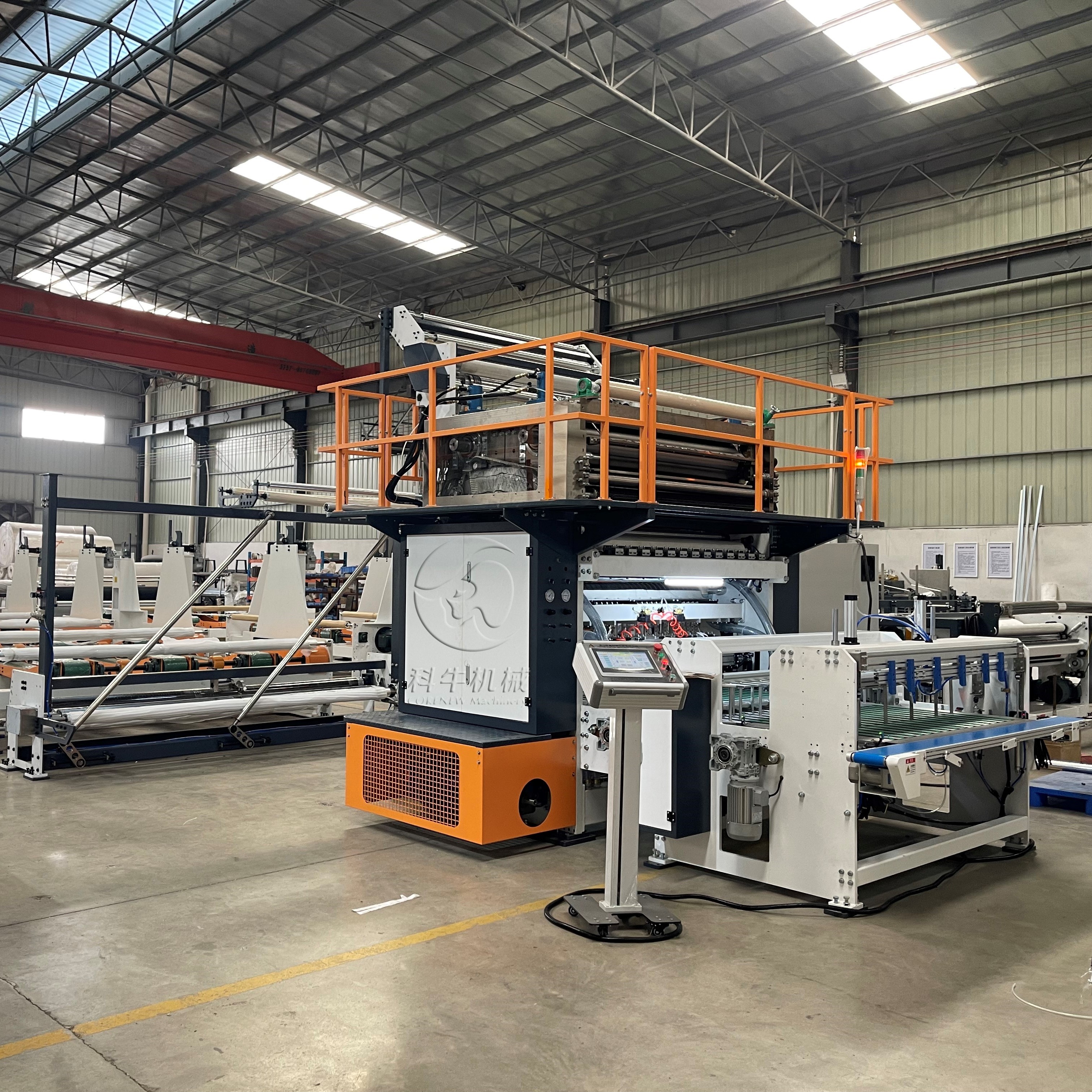

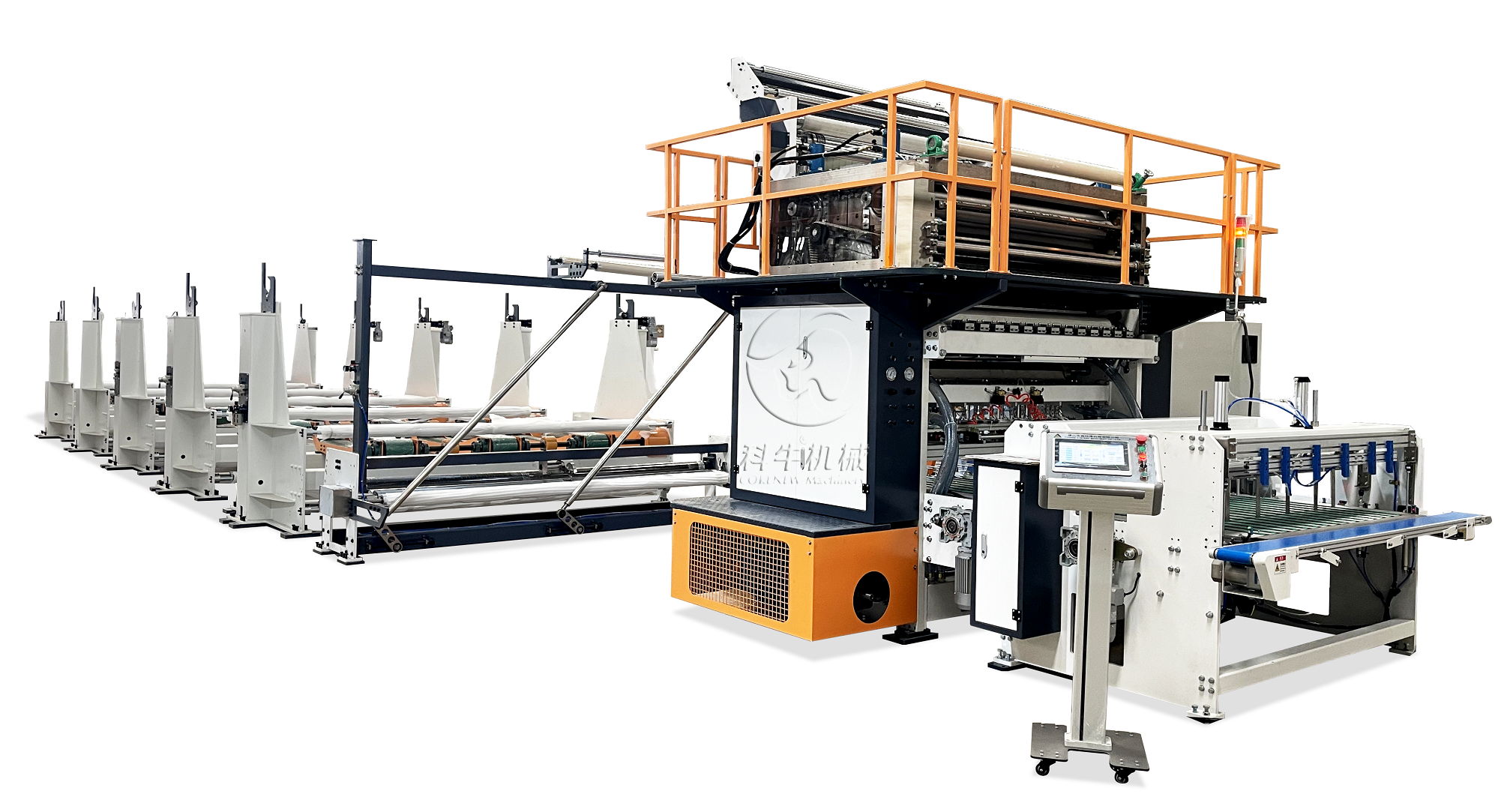

Fully Automatic Border-embossing Facial Tissue Folding Machine
This is V-type facial tissue folding machine, stable operation and high production efficiency. Each unit is driven by independent servo motor, high degree of automation, patent-tech spiral blade cutting structure, precisely counting system and nice folding effect, could greatly increase qualification rate. Equipment with border embossing process technology, the roller material is made of alloy steel, which is durable and long-lasting.
 |  |  |  |  |
 |  |  |  |  |
TECHNICAL PARAMETERS:
Model | 7lanes | 8lanes | 9lanes | 10lanes |
Width of parent reel | 1450mm | 1730mm | 1920mm | 2050mm |
Diameter of parent reel | ≤Ф2200mm (customization is required in case of >Ф2200) | |||
Core diameter of parent reel | Ф76mm (customization is required in case of other sizes) | |||
Sheet length (fixed) | Option 180/185/190/195/200/210/225 | |||
Paper quantity | 11-22g/m² 1~4plies | |||
Folding type | V fold | |||
Control system | PLC, converter, HMI control | |||

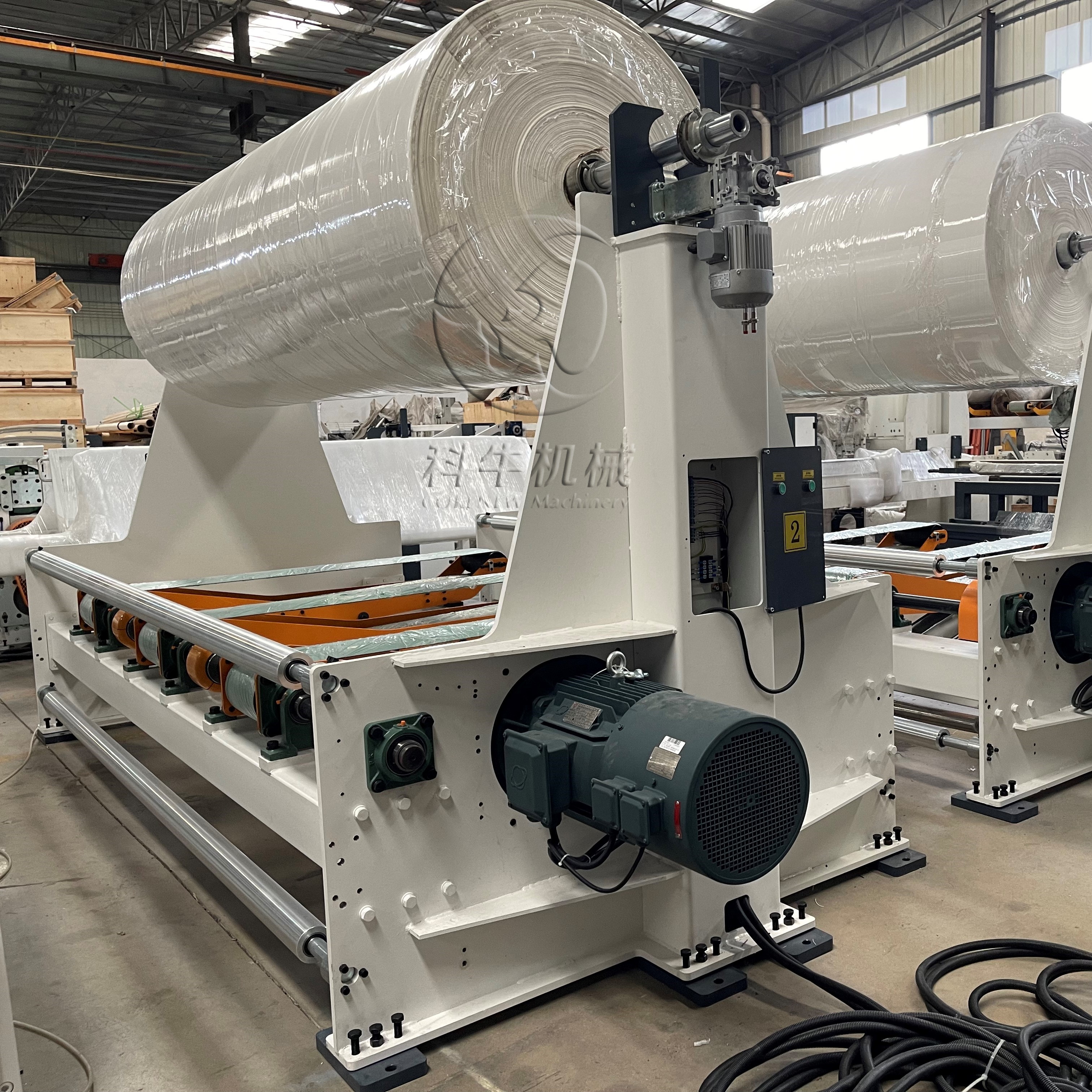

Unwind stand | Independent driving, crane loading parent reel | |||

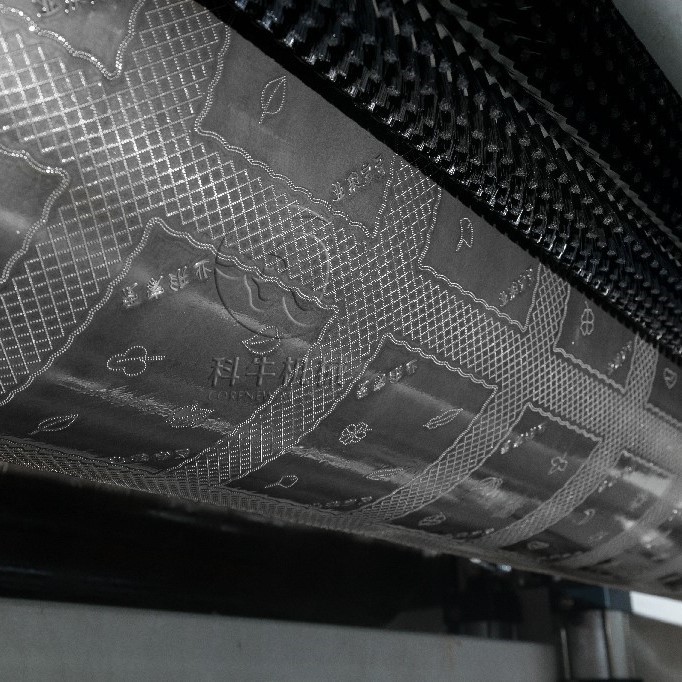

Embossing device | Border embossing | |||
Optional items | ||||
Unwind stand | 1-6 layers, independent driving | |||
Edge embossing device | Number of edge embossing to be specify | |||

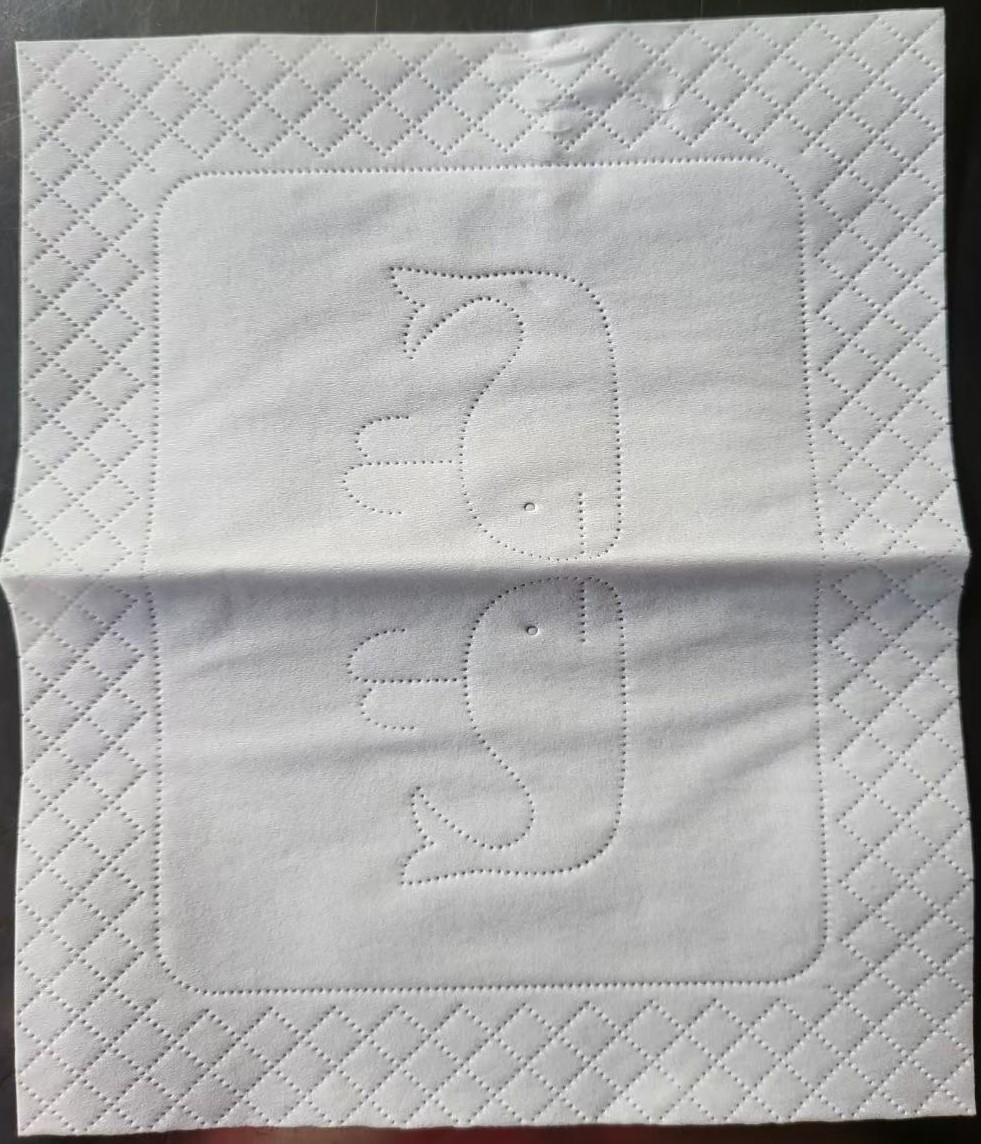

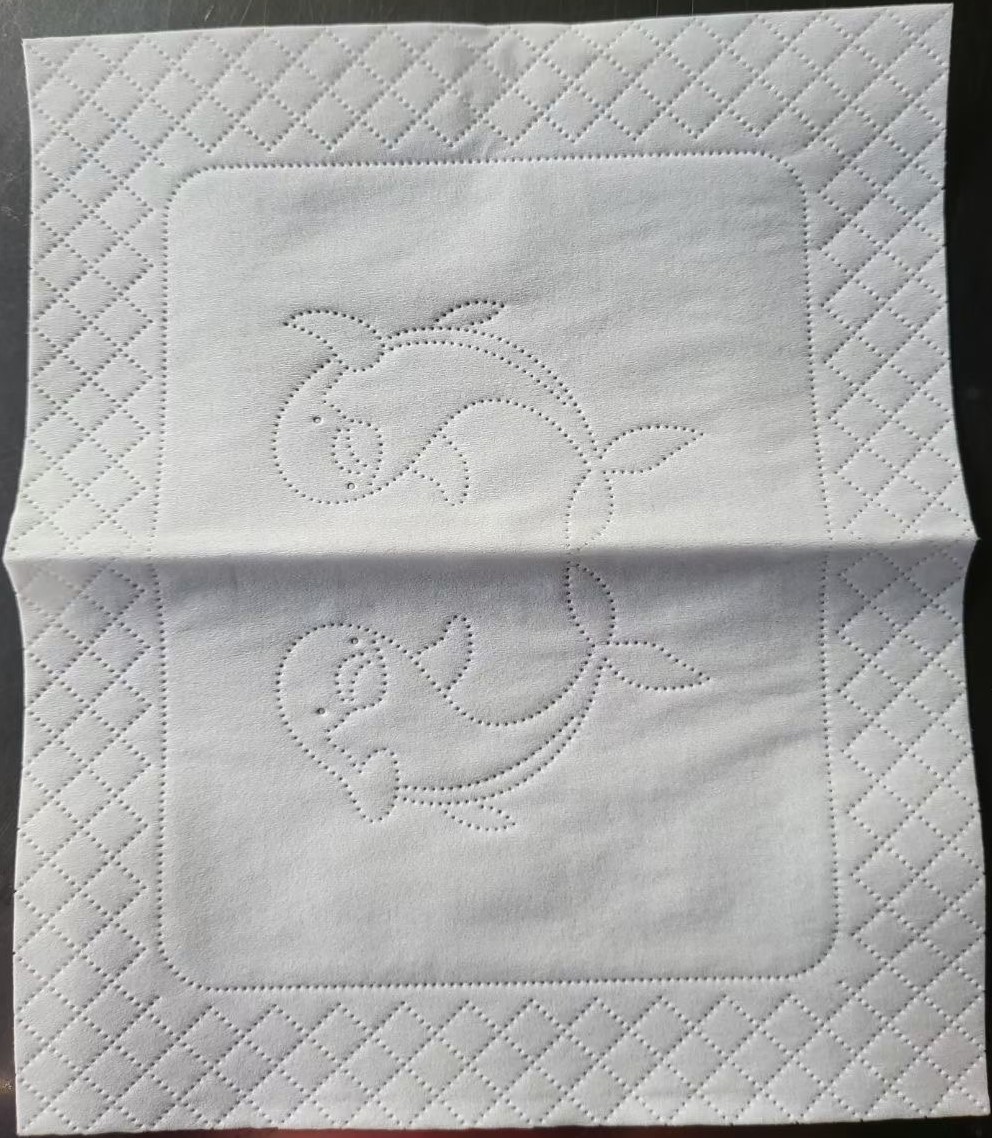

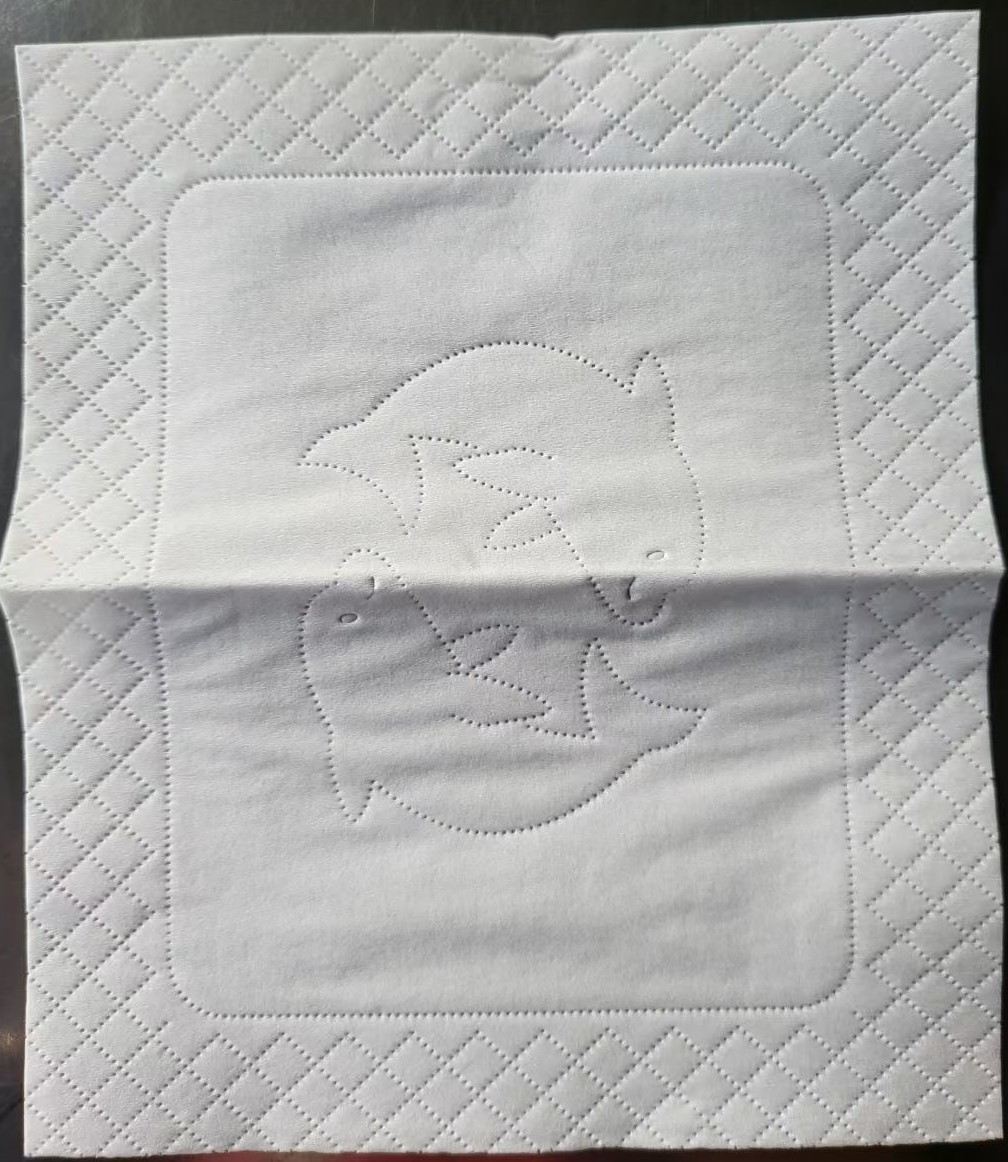

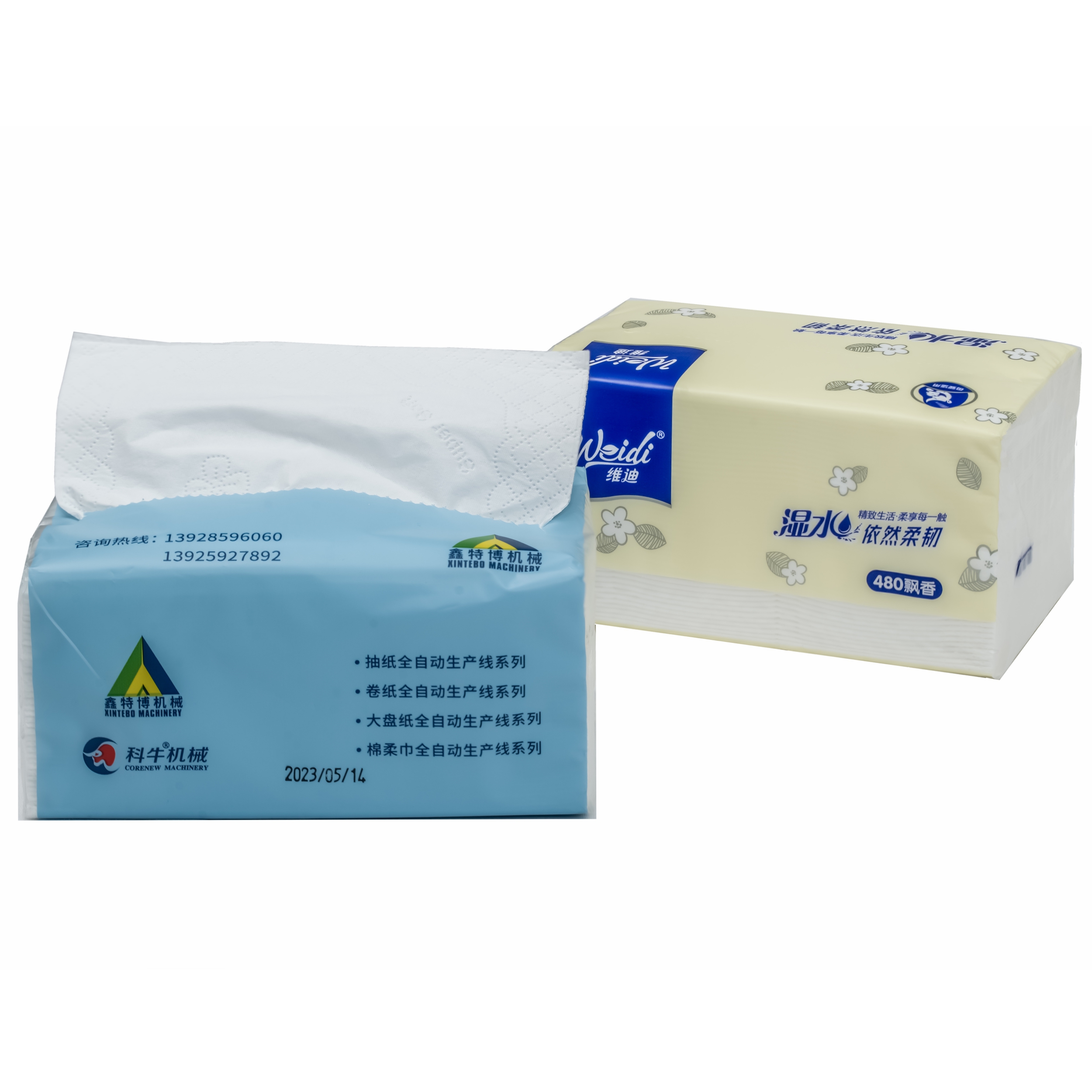

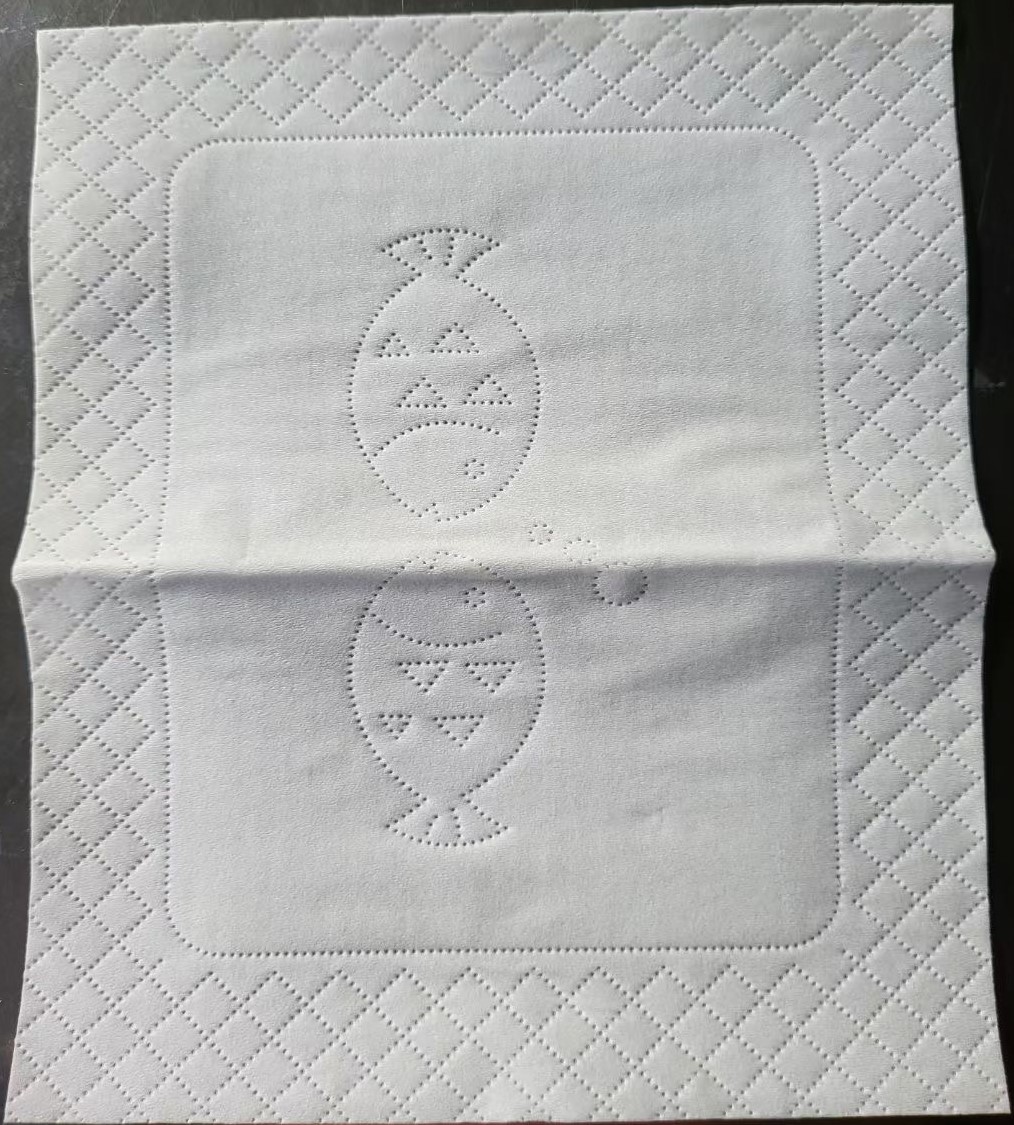

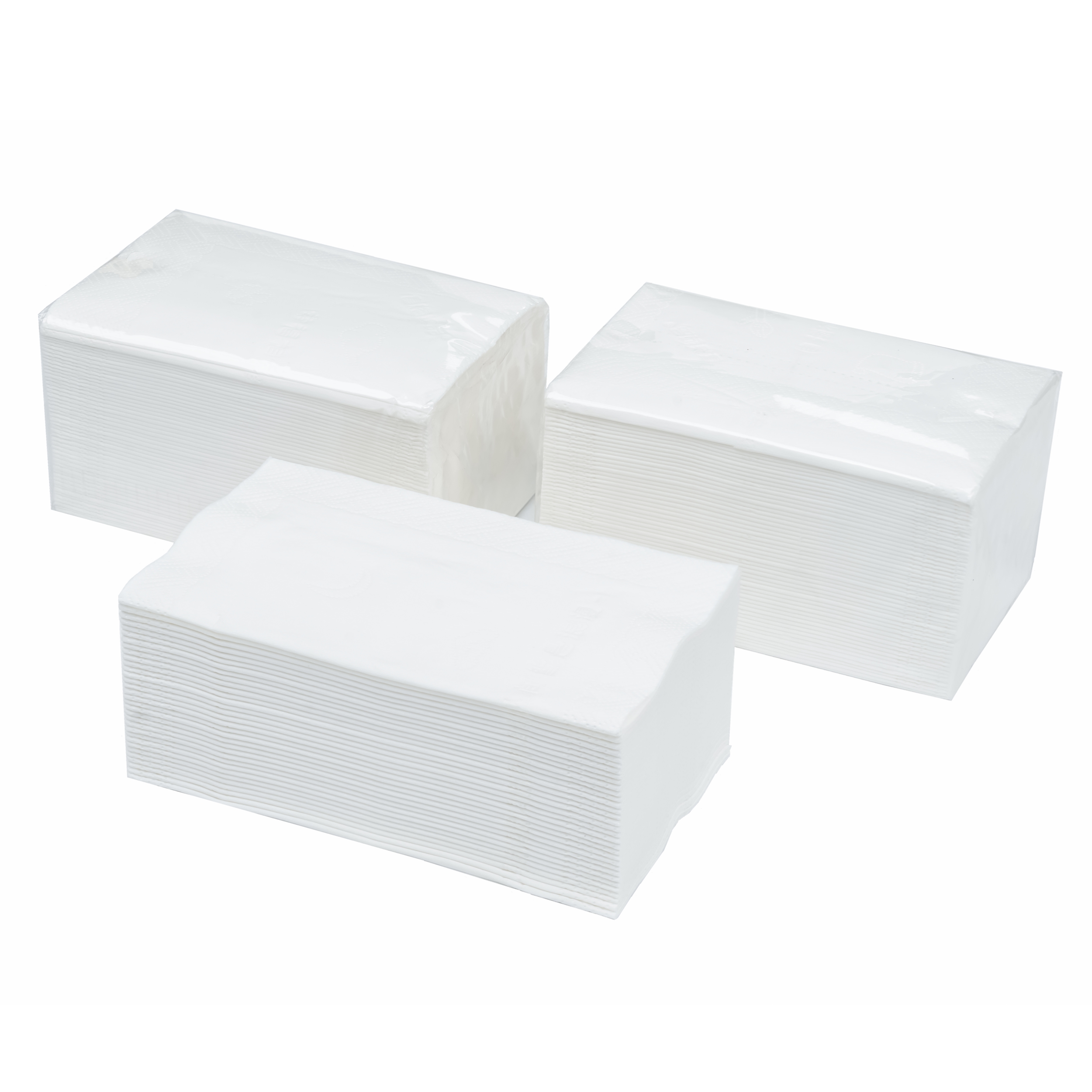

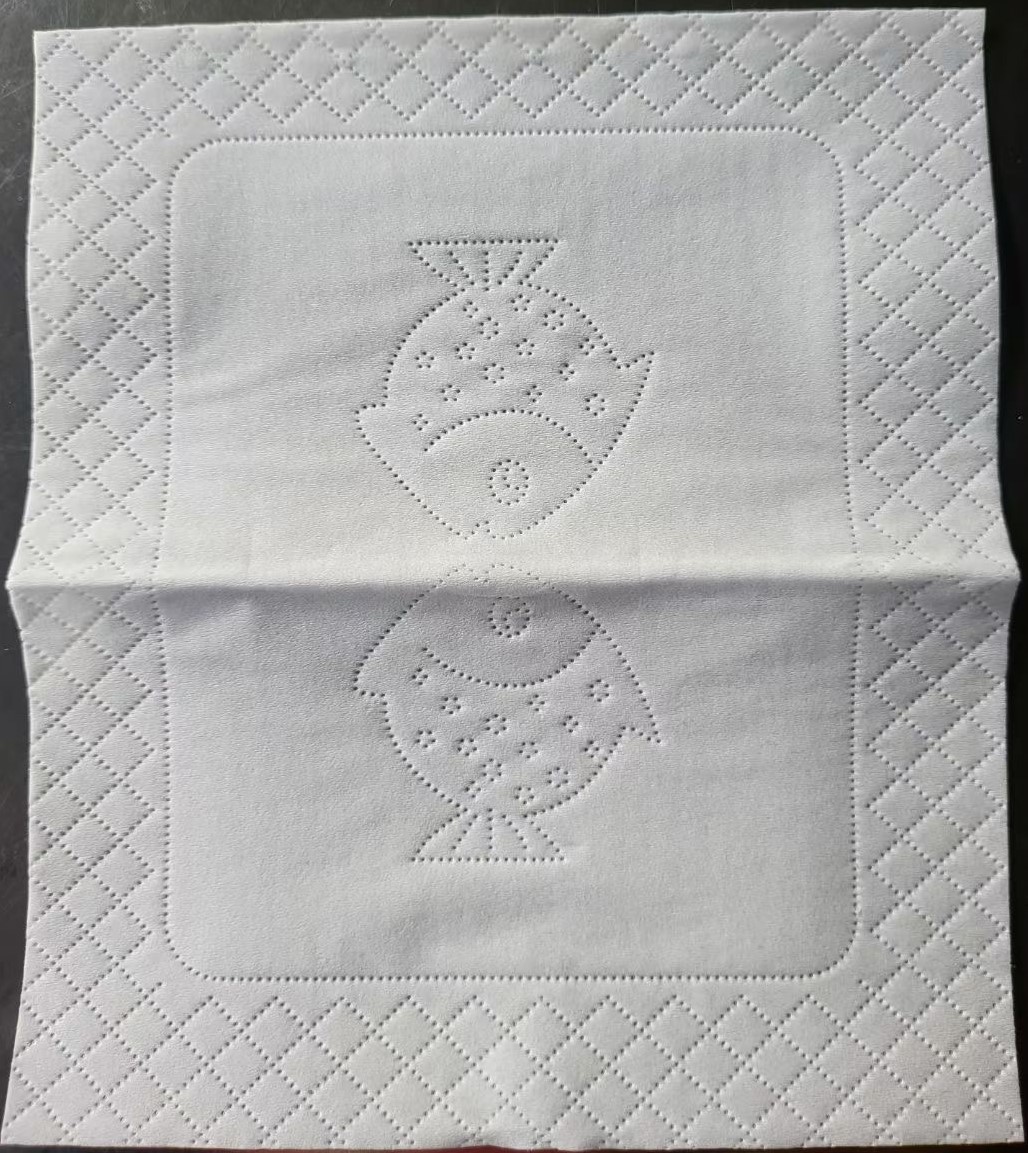

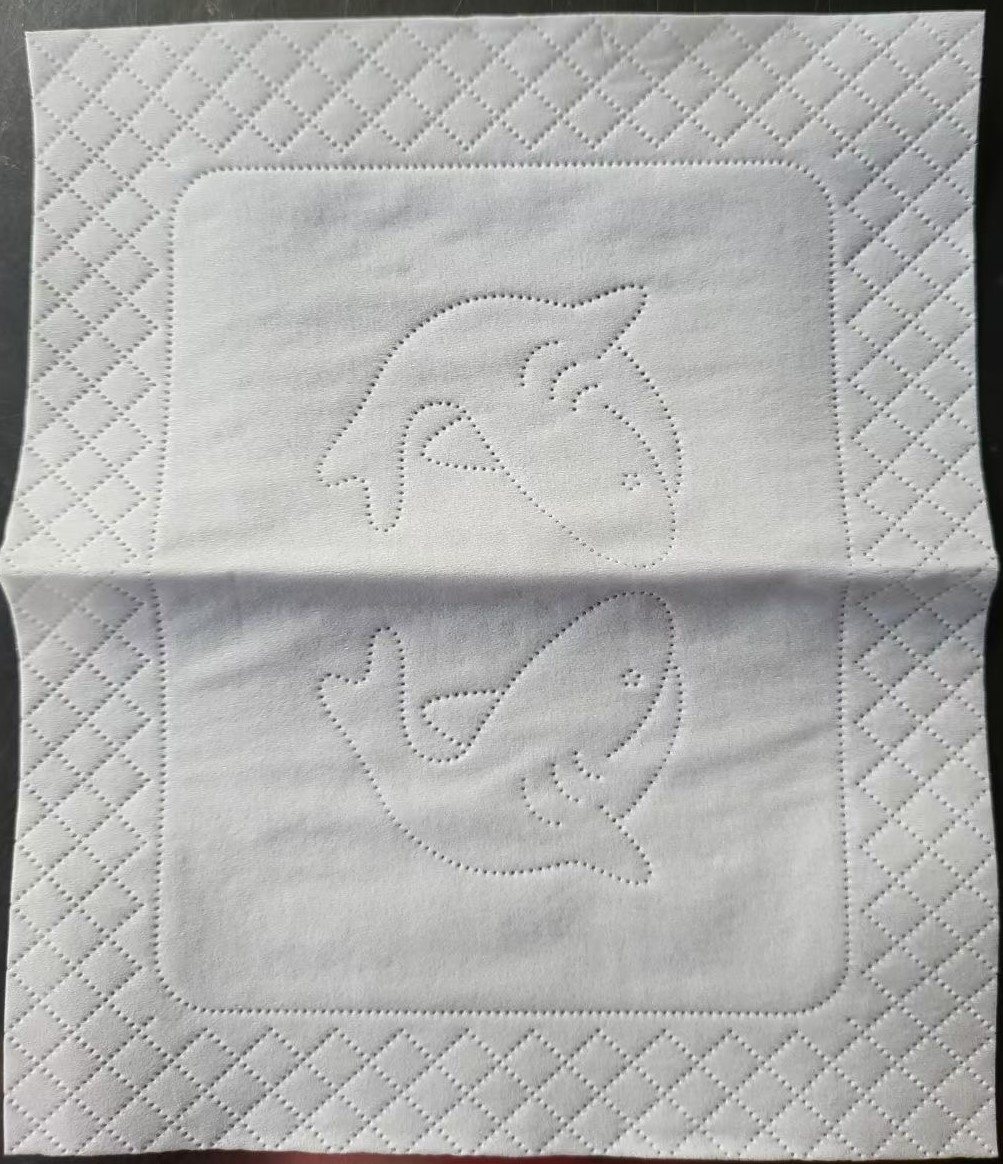

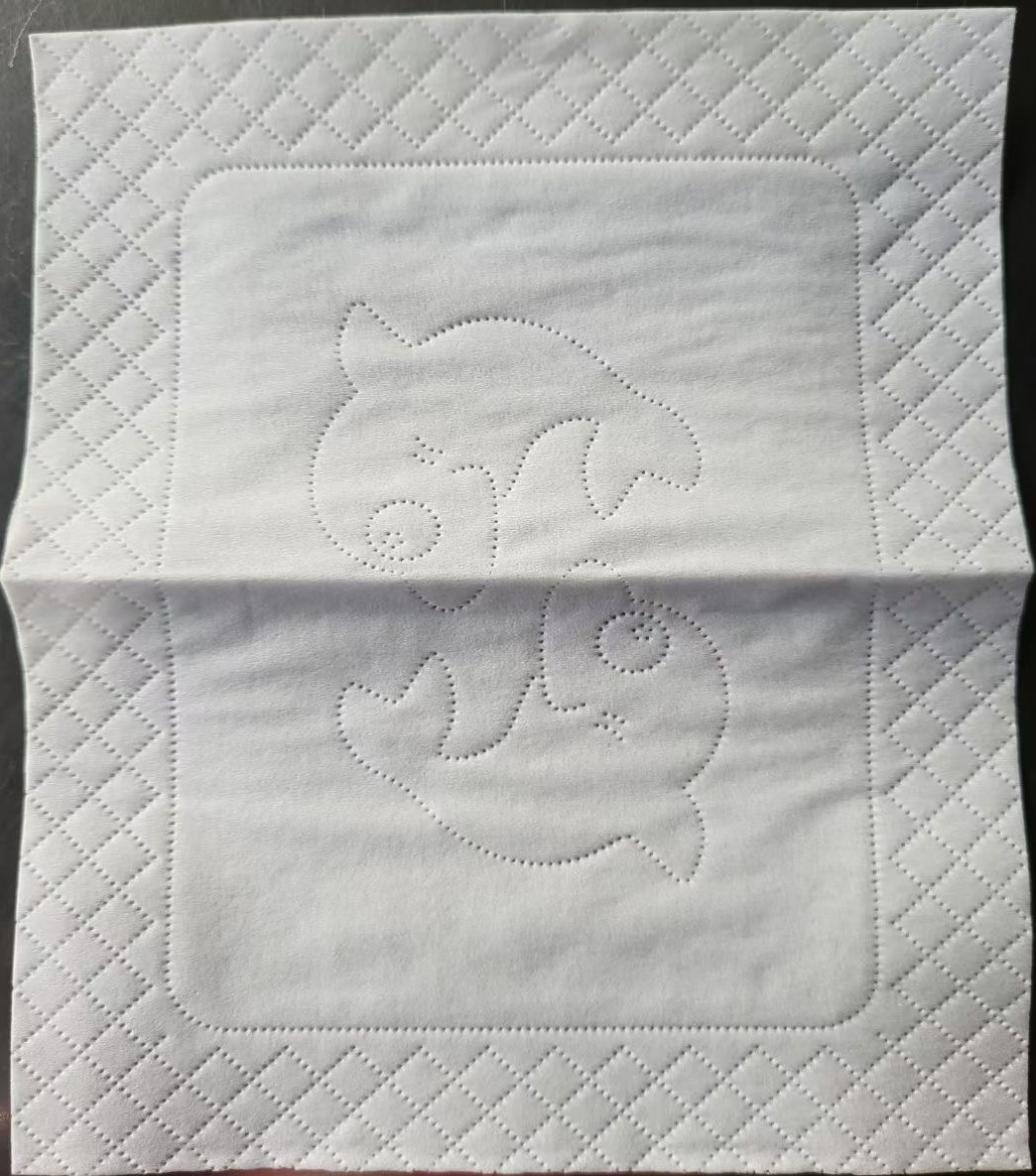

PRODUCTS DISPLAY
 |  |  |
