CNF-A180/(7L~10L)
CORENEW

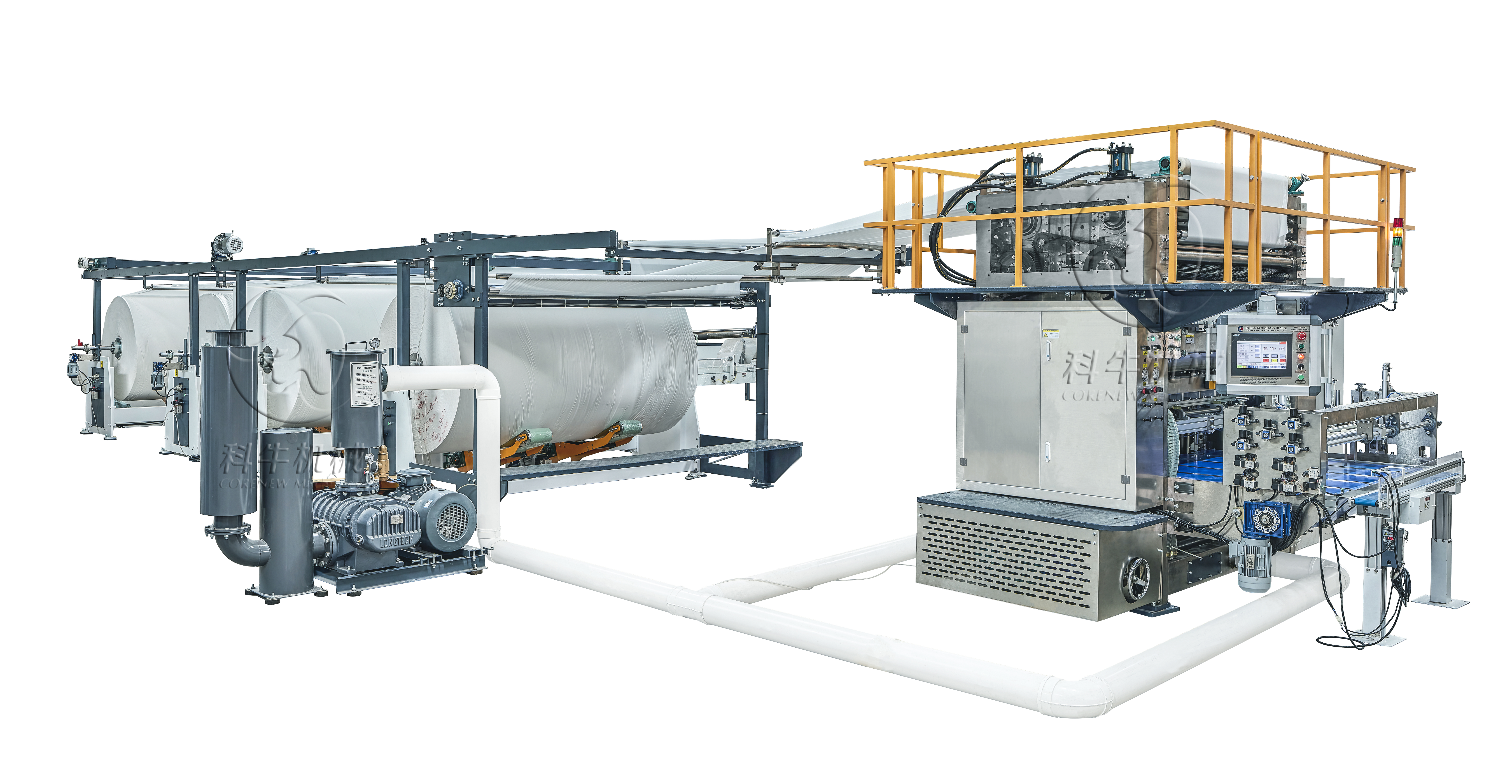

CNF-A180/(7L~10L) Full automatic border-embossing facial tissue folding machine
CHARACTERISTICS:
Stable operation speed 120m/min (13logs/min);
Each unit is driven by independent motor (servo motor);
Patent-tech spiral blade cutting structure;
Patent-tech with suction holes at the blade edge;
Equipped with clear embossed pattern on paper;
Precisely counting system and nice folding effect, could greatly increase qualification rate.
TECHNICAL PARAMETERS:
Model | 7lanes | 8lanes | 9lanes | 10lanes |
Width of parent reel | 1450mm | 1730mm | 1920mm | 2050mm |
Diameter of parent reel | ≤Ф1500mm (customization is required in case of >Ф1500) | |||
Core diameter of parent reel | Ф76mm (customization is required in case of other sizes) | |||
Sheet length (fixed) | Option 180/190/200/210/225 | |||
Paper quantity | 13-22g/m² | |||
Control system | PLC, converter, electromechanical and optic integrated control | |||
Folding type | V fold | |||
Transfer system | Servo control, automatic folding, counting and auto-transfer | |||
Optional items | ||||
Unwind stand | 1-4 layers, indpendent driving, crane loading parent reel | |||
Embossing device | Embossing system: Steel-to-rubber, steel-to-steel, steel-to-paper | |||
Lamination system: Point-to-point, nested-to-nested, decorativ | ||||
Border-embossing system | ||||
Edge embossing system | ||||

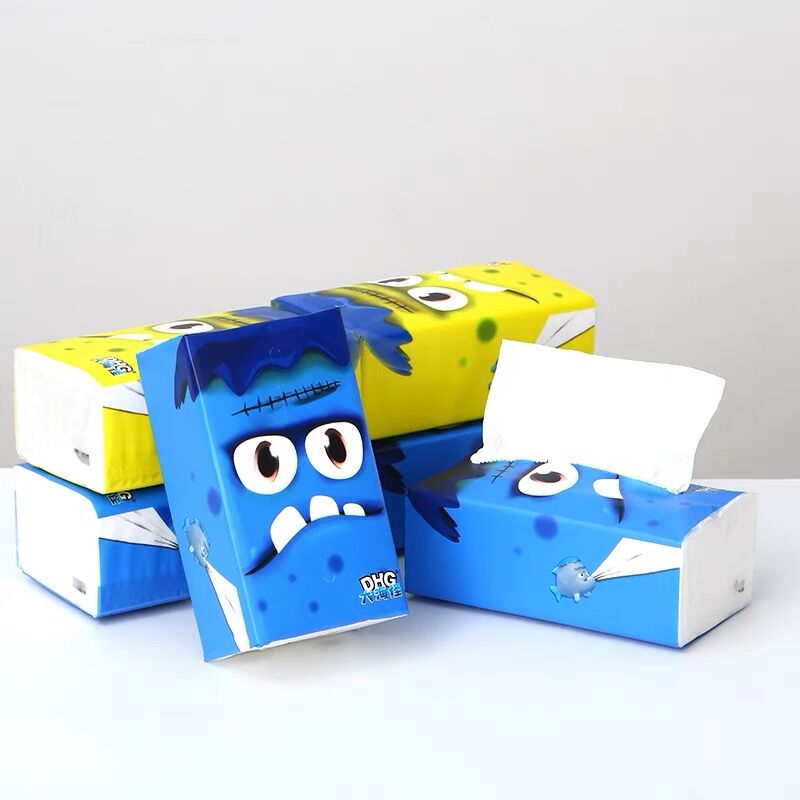

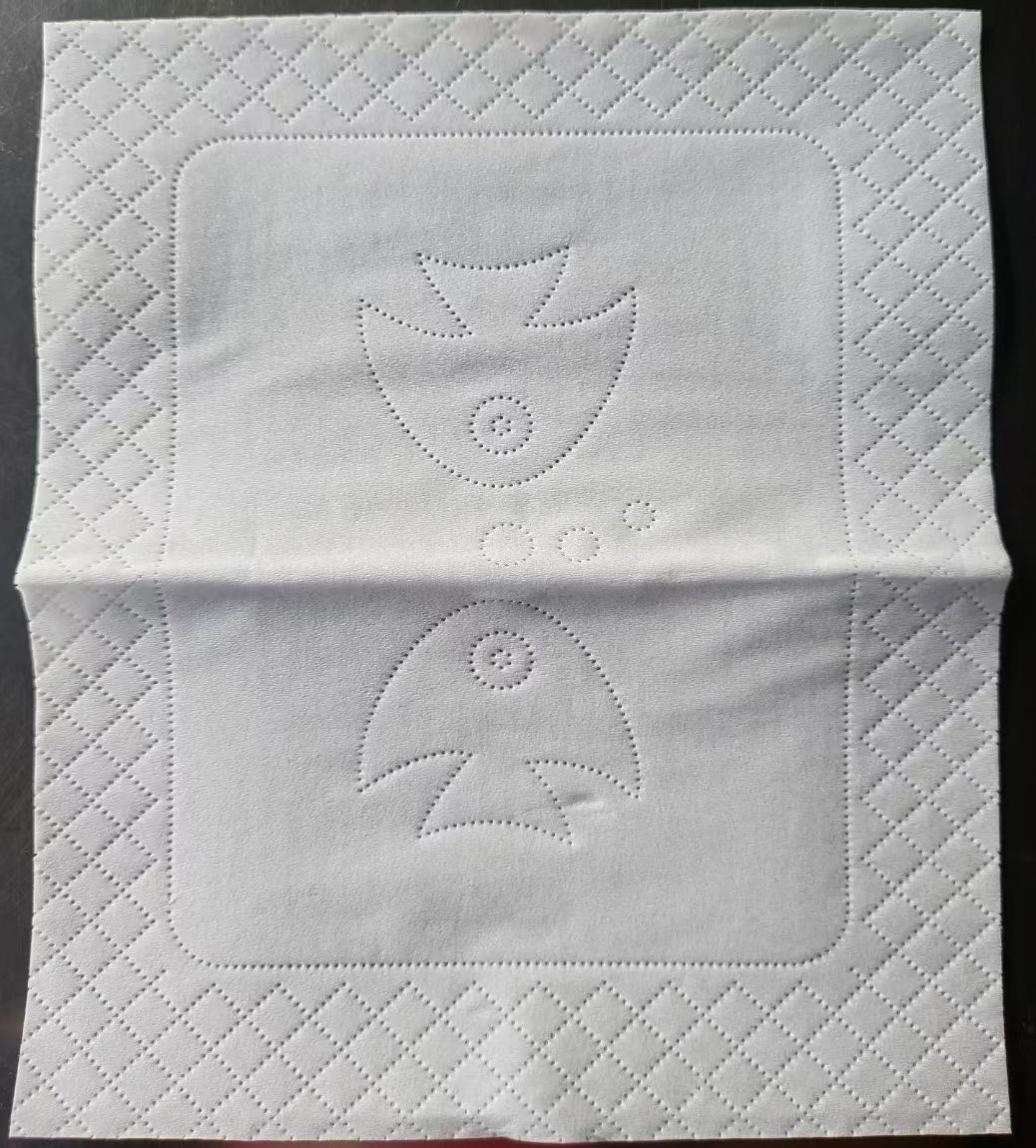

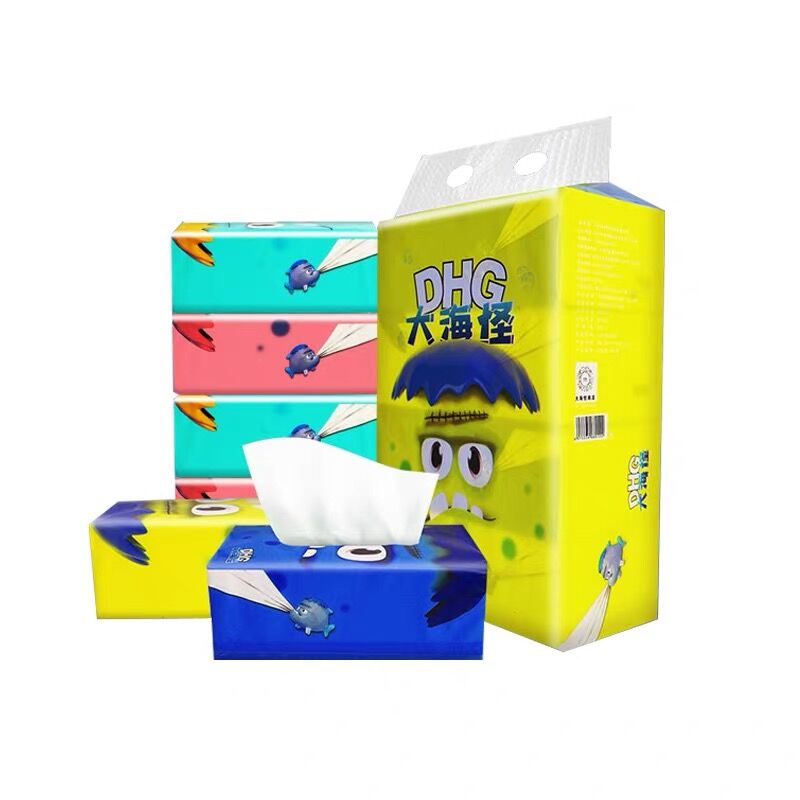

SAMPLES OF FINISHED PRODUCT:
 |  |  |
