Automatic Facial Tissue Folding Machine


Availability:

Quantity:



Inquire

CHARACTERISTICS:
1.Stable production speed: 120m/min (9-15logs/min)
2.Each unit is driven by independent servo motor, PLC and HMI control
3.Core technology has obtained multiple national patents
4.Equipped with clear embossment unit on paper
5.Automatic transfer system
6.Automatic web thickness monitor
7.With function of automatic end folding and automatic overturn system
8.Electromechanical integrated control technology, automatic detection

Model:
CNF-A180/(6L-10L)
Brand:
CORENEW

Product Description

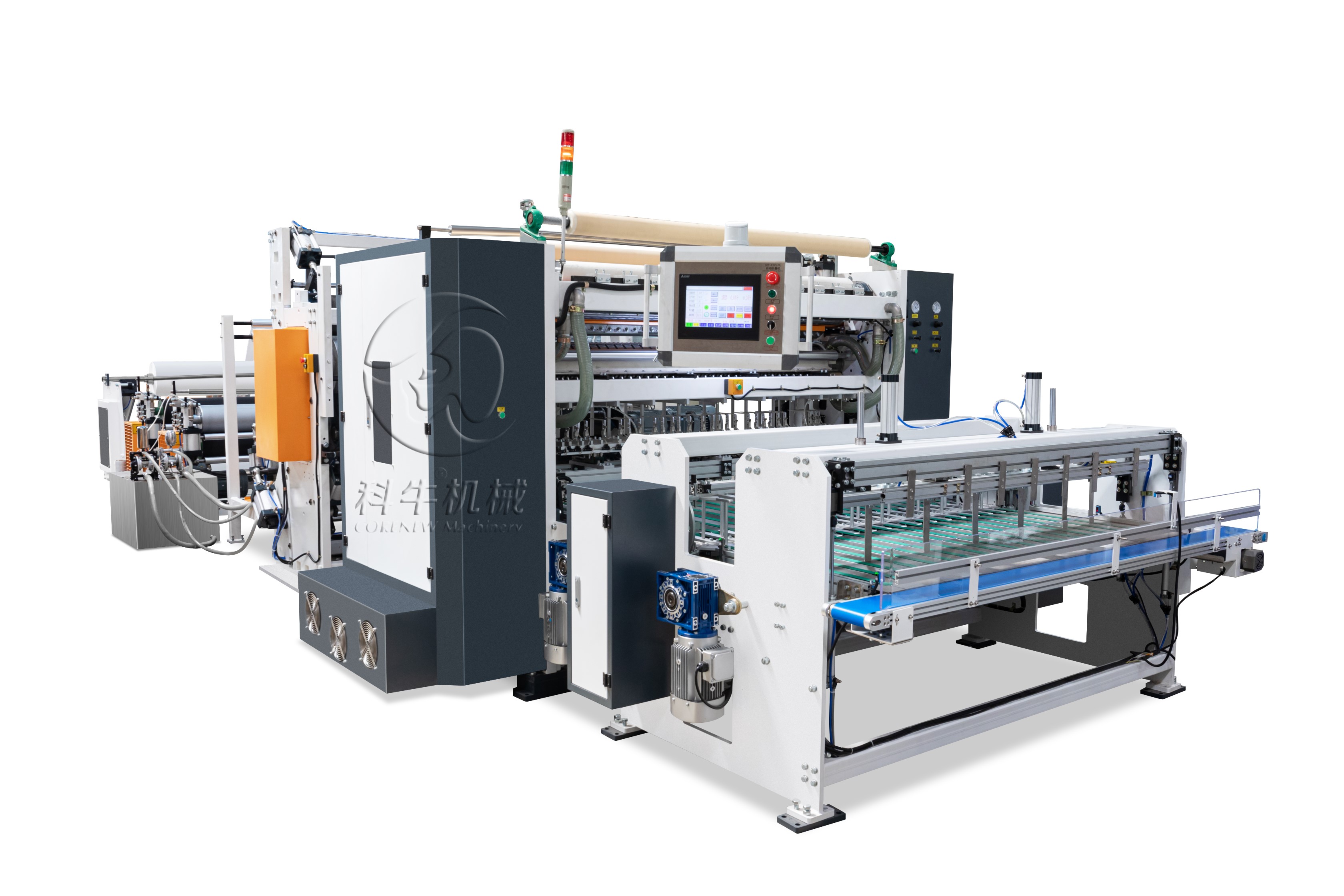

CNF-A180/(6L-10L) AUTOMATIC FACIAL TISSUE FOLDING MACHINE

微信图片_20230824104809

This is V-type facial tissue folding machine, stable operation and high production efficiency. Each unit is driven by independent servo motor, high degree of automation, patent-tech spiral blade cutting structure, precisely counting system and nice folding effect, could greatly increase qualification rate.

TECHNICAL PARAMETERS:

Model	6lanes	7lanes	8lanes	9lanes	10lanes
Width of parent reel	1320mm	1450mm	1730mm	1920mm	2050mm
Diameter of parent reel	≤Ф1500mm (customization is required in case of >Ф1500)
Core diameter of parent reel	Ф76mm (customization is required in case of other sizes)
Sheet length (fixed)	Option 180/190/200/210/225
Paper quantity	13-22g/m²
Folding type	V fold
Control system	PLC, converter, electromechanical and optic integrated control
Transfer system	Servo control, automatic folding, counting and auto-transfer
Optional items
Unwind stand	1-4 layers, indpendent driving, crane loading parent reel
	Diameter ≤2500mm, with shaft or shaft-less type
Side trimming system	If need
Embossing device	Edge embossing system
	Embossing system: Steel-to-rubber, steel-to-steel, steel-to-paper
	Lamination system: Point-to-point, nested-to-nested, decorated
